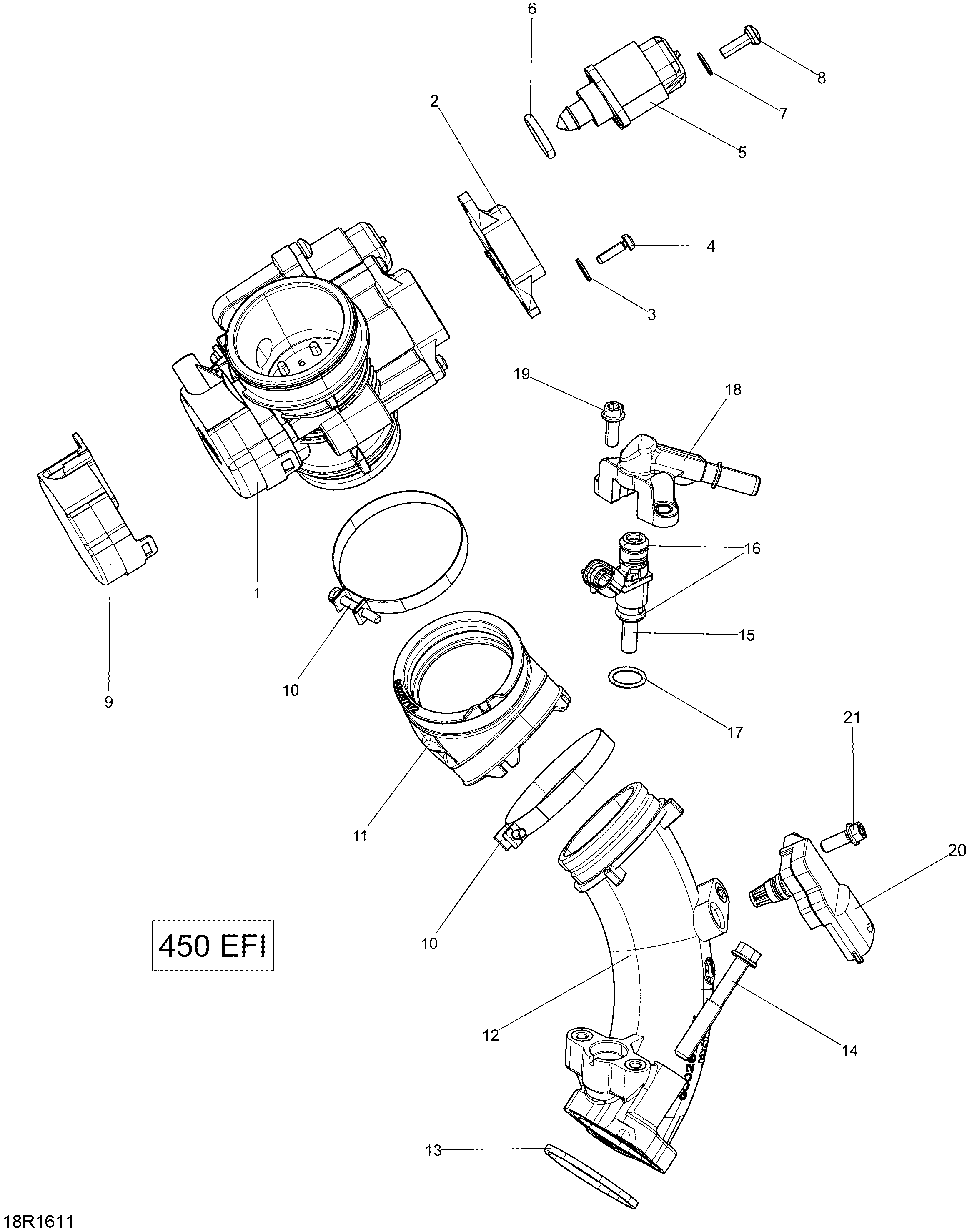

02- Air Intake Manifold and Throttle Body - 450 EFI для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1420685324 Throttle Body Ass'y. Includes 1 to 9Throttle Body Ass'y. Includes 1 to 9
-
2270000251 Position SensorPosition Sensor
-
3234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
5420665940 Idle Bypass ValveIdle Bypass Valve
-
6420631780 O-RingO-Ring
-
7420845710 Snap RingSnap Ring
-
8420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
9420281540 Cover KitCover Kit
-
10420251480 ClampClamp
-
11420267172 Intake NeckIntake Neck
-
12420267527 Intake AdaPTOrIntake AdaPTOr
-
13420630642 GasketGasket
-
14420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
15420874841 Injection Valve Ass'yInjection Valve Ass'y
-
16420631220 O-RingO-Ring
-
17420631295 O-RingO-Ring
-
18420874905 Fuel RailFuel Rail
-
19420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
20707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
21420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
