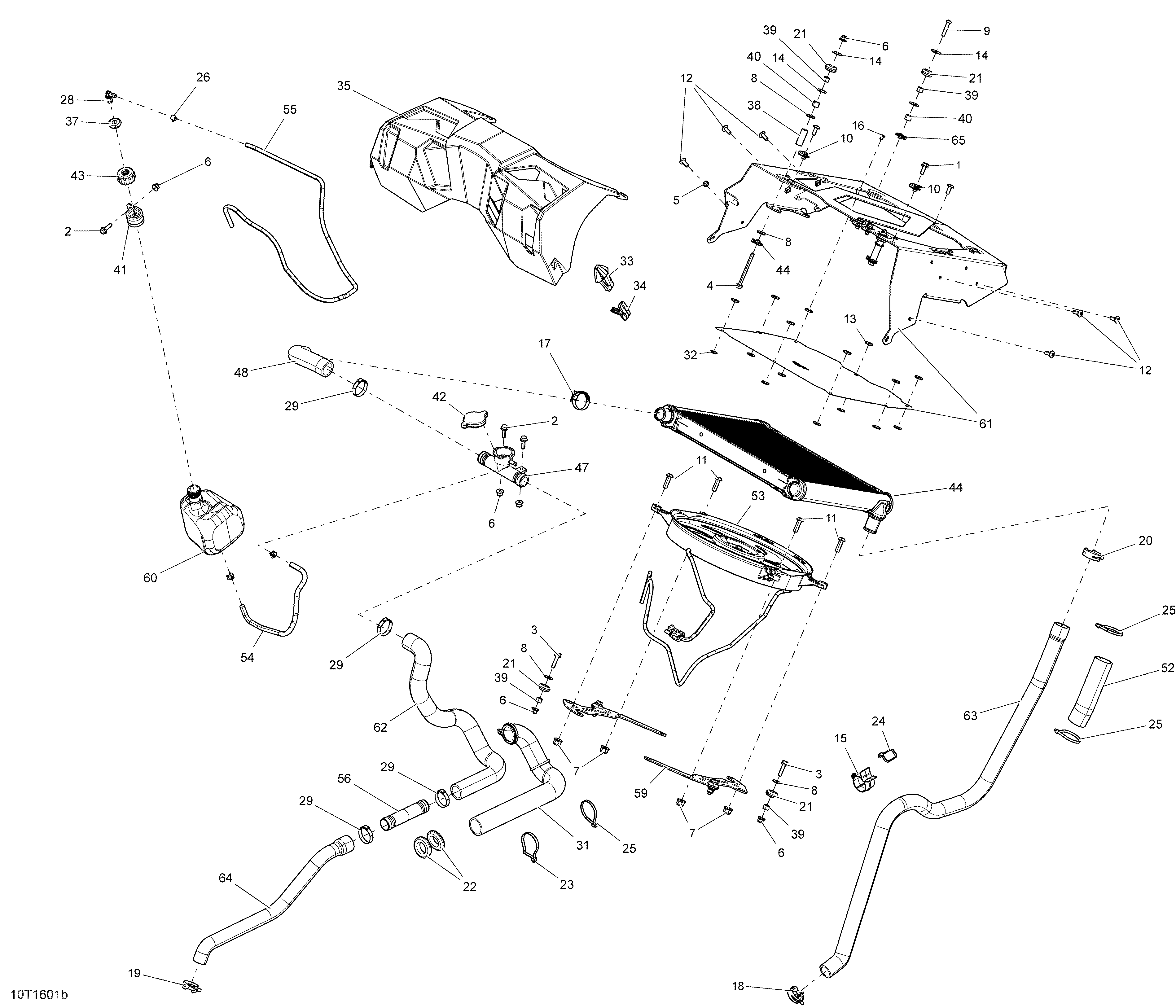

01- Cooling System - XMR для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9235563054 Torx Screw M6 X 30Torx Screw M6 X 30
-
10250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
11250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
12250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
13250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
14250200040 Flat WasherFlat Washer
-
15275500590 RetainerRetainer
-
16293150102 Rivet 3/16''Rivet 3/16''
-
17293650098 Norma Gear ClampNorma Gear Clamp
-
18293650108 Norma Spring ClampNorma Spring Clamp
-
19293650109 Norma Spring ClampNorma Spring Clamp
-
20293650166 Norma Spring ClampNorma Spring Clamp
-
21293720062 GrommetGrommet
-
23293750008 Tie-Rap 350 mm. Engine 570Tie-Rap 350 mm. Engine 570
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26414554800 Spring ClampSpring Clamp
-
28414580700 Male ConnectorMale Connector
-
29509000162 Gear ClampGear Clamp
-
31515176260 Tubing 35 mmTubing 35 mm
-
32517124300 WasherWasher
-
33860200239 Black Latch KitBlack Latch Kit
-
34517303981 Panel LatchPanel Latch
-
35703100399 Protection Cover KitProtection Cover Kit
-
37705003264 GrommetGrommet
-
38705202499 BushingBushing
-
39707000058 SpacerSpacer
-
40708001129 BushingBushing
-
41709200036 Hose AnchorHose Anchor
-
42709200207 Pressure CapPressure Cap
-
43548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
44709200286 RadiatorRadiator
-
47709200422 Filler NeckFiller Neck
-
48709200426 HoseHose
-
52515176260 Tubing 35 mmTubing 35 mm
-
53709200567 Fan Ass'yFan Ass'y
-
54415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
55415080200 Hose, PolyurethaneHose, Polyurethane
-
56709200448 Nipple Tube 1''Nipple Tube 1''
-
59709200495 SupportSupport
-
60709200504 Coolant TankCoolant Tank
-
61709200556 Ass SupportAss Support
-
62709200559 Hose, Polyurethane. Engine 570Hose, Polyurethane. Engine 570
-
63709200560 Hose, Polyurethane. Engine 570Hose, Polyurethane. Engine 570
-
64709200561 Hose, Polyurethane. Engine 570Hose, Polyurethane. Engine 570
-
65715900148 Clip Nut M6 X 1Clip Nut M6 X 1
