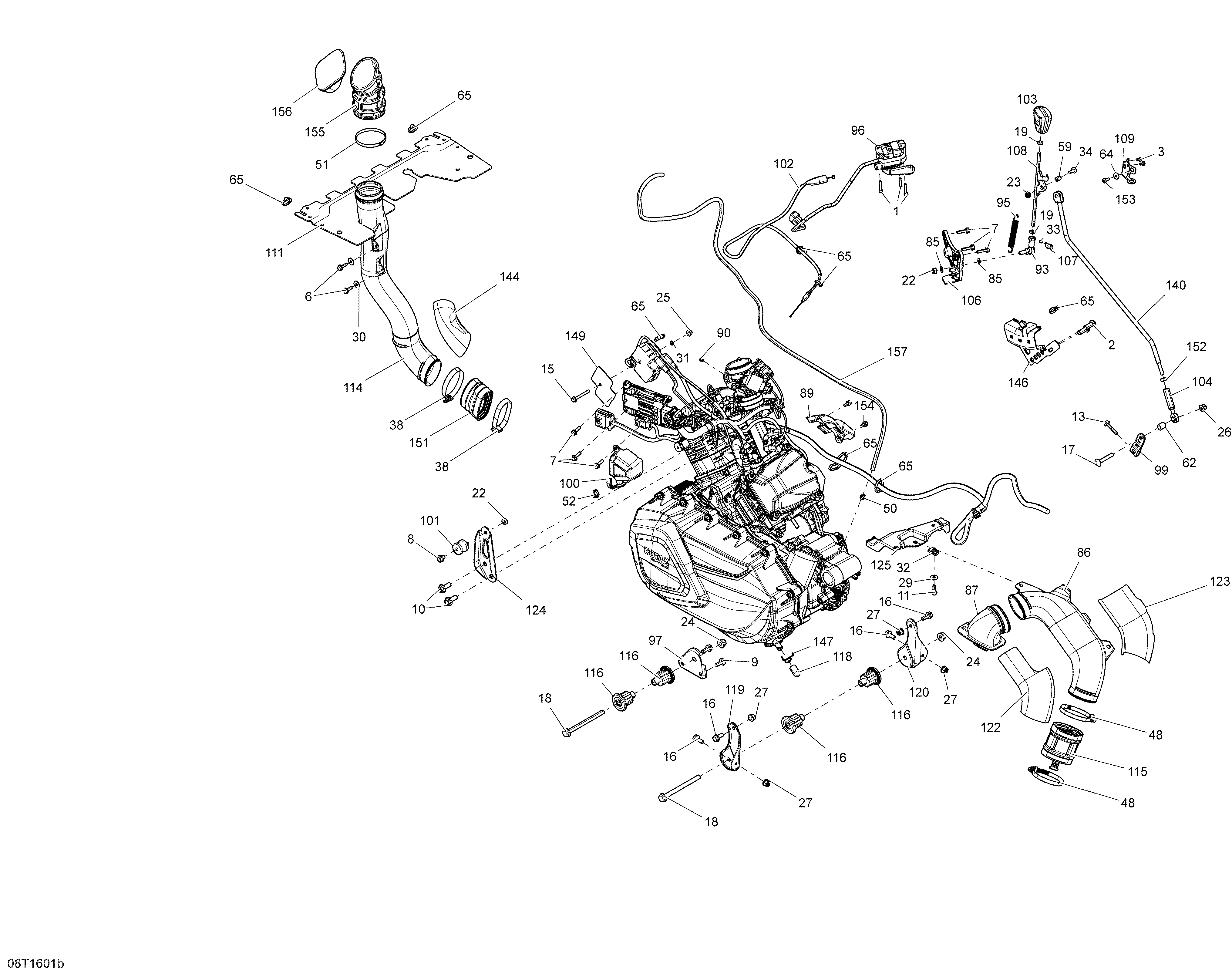

01- Engine and Engine Support - 570 EFI для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
2205402556 Screw-Socket Bn.Hd.Iso.7380Screw-Socket Bn.Hd.Iso.7380
-
3205951046 Socket Head Screw M5 X 10. Europe ModelSocket Head Screw M5 X 10. Europe Model
-
6207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
9207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
10207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
15207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
16207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
17207785044 Carriage Bolt M8 X 50Carriage Bolt M8 X 50
-
18230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
19232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
23233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
24233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
29234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
31234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
32250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
33250000332 Torx Screw M4 X 8. Europe ModelTorx Screw M4 X 8. Europe Model
-
34250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
38293650091 Norma ClampNorma Clamp
-
48293650118 Norma Gear ClampNorma Gear Clamp
-
50293650195 Clamp, OetikerClamp, Oetiker
-
52293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
59293900019 BushingBushing
-
62293900106 BushingBushing
-
64391301600 Washer. Europe ModelWasher. Europe Model
-
65414115200 Tie-Rap 180 mm. #N/ATie-Rap 180 mm. #N/A
-
85506151252 WasherWasher
-
86706600019 Air OutletAir Outlet
-
87706600024 Air OutletAir Outlet
-
89707000410 Cover OPSCover OPS
-
90707000434 Cable GuideCable Guide
-
93707000546 RH Ball JointRH Ball Joint
-
95707000577 SpringSpring
-
96707000595 Throttle HandleThrottle Handle
-
97707000761 RH Front Engine BracketRH Front Engine Bracket
-
99707000911 LeverLever
-
100707000945 CoverCover
-
101707000949 Rubber IsolatorRubber Isolator
-
102707000955 Throttle CableThrottle Cable
-
103707000965 Lever ButtonLever Button
-
104707000966 Ball Joint Ass'yBall Joint Ass'y
-
106707000971 Shift Arm BaseShift Arm Base
-
107707000994 Speed Limiter. Europe ModelSpeed Limiter. Europe Model
-
108707000840 Shift Arm. Except Europe ModelShift Arm. Except Europe Model
-
108707001003 Shift Arm. Europe ModelShift Arm. Europe Model
-
109707001042 Fixing Plate. Europe ModelFixing Plate. Europe Model
-
111707001124 Upper Water DeflectorUpper Water Deflector
-
114707001163 CVT Air InletCVT Air Inlet
-
115707001168 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
116707001169 DamperDamper
-
118707001185 PlugPlug
-
119707001193 LH Rear Engine BracketLH Rear Engine Bracket
-
120707001194 RH Rear Engine BracketRH Rear Engine Bracket
-
122707001205 Heat ShieldHeat Shield
-
123707001206 Heat ShieldHeat Shield
-
124707001256 Upper Engine BracketUpper Engine Bracket
-
125707001262 Air Outlet SupportAir Outlet Support
-
140707001564 Shifter RodShifter Rod
-
144707001654 Heat ShieldHeat Shield
-
146707001842 Cable SupportCable Support
-
147707800506 Retainer ClipRetainer Clip
-
149710000073 Insulator PadInsulator Pad
-
151707001467 Flexible AdaptorFlexible Adaptor
-
152250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
153250000720 Torx Screw K50 X 16. Europe ModelTorx Screw K50 X 16. Europe Model
-
154210261250 Screw-Forming Hex.Hd.Fl.Bzn. Engine 570Screw-Forming Hex.Hd.Fl.Bzn. Engine 570
-
157415080200 Hose, PolyurethaneHose, Polyurethane
