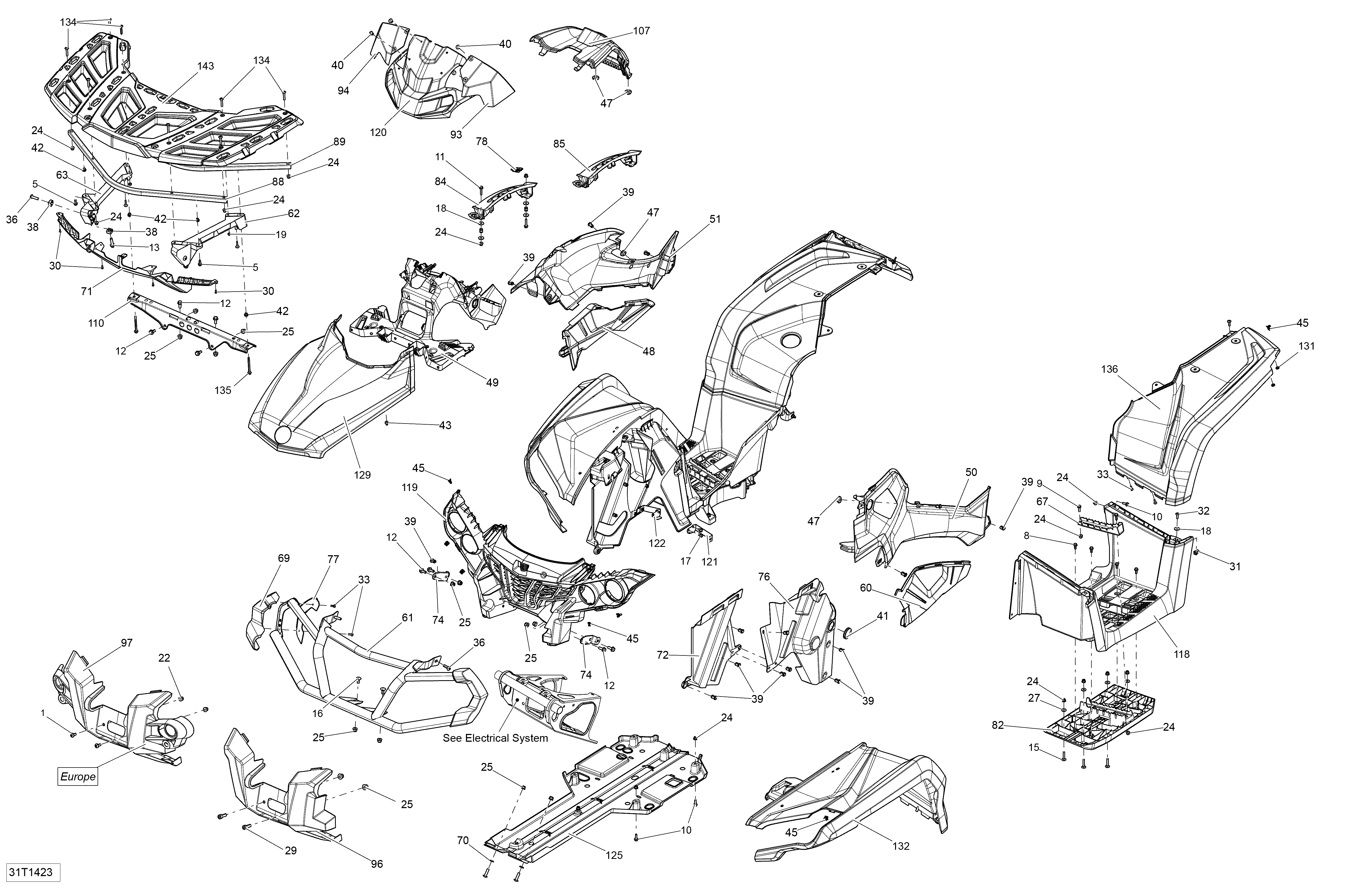

09- Body And Accessories _31T1423a для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support Kit. Model-North AmericaDash Support Kit. Model-North America
-
49715002245 Dash Support Kit. Model-EuropeDash Support Kit. Model-Europe
-
49715002245 Dash Support Kit. Model-InternationalDash Support Kit. Model-International
-
50705003446 Yellow LH Lateral Panel. Model-YellowYellow LH Lateral Panel. Model-Yellow
-
50705003446 Yellow LH Lateral Panel. Model-Black/YellowYellow LH Lateral Panel. Model-Black/Yellow
-
50705007530 Quarry Gray LH Lateral Panel. Model- GreyQuarry Gray LH Lateral Panel. Model- Grey
-
51705003447 Yellow RH Pannel. Model-YellowYellow RH Pannel. Model-Yellow
-
51705003447 Yellow RH Pannel. Model-Black/YellowYellow RH Pannel. Model-Black/Yellow
-
51705007529 Grey RH Lateral Panel. Model- GreyGrey RH Lateral Panel. Model- Grey
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front Bumper. Model-XT, XTPFront Bumper. Model-XT, XTP
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
68705004409 Cap (Front LH) (Rear RH). Model-XT, XTPCap (Front LH) (Rear RH). Model-XT, XTP
-
69705004410 Cap (Front RH) (Rear LH). Model-XT, XTPCap (Front RH) (Rear LH). Model-XT, XTP
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket Cover. Model-XT, XTPBracket Cover. Model-XT, XTP
-
78705005003 Shiftgate Trim. Model-EuropeShiftgate Trim. Model-Europe
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005257 Indicator. Model-North America/InternationalIndicator. Model-North America/International
-
85705005260 Indicator. Model-EuropeIndicator. Model-Europe
-
88705005469 TubeTube
-
89705005470 TubeTube
-
93705006134 LH Air DeflectorLH Air Deflector
-
94705006135 RH Air DeflectorRH Air Deflector
-
96705006299 Front Guard Plate. Model-North America/InternationalFront Guard Plate. Model-North America/International
-
97705006300 Front Guard Plate. Model-Europe T3Front Guard Plate. Model-Europe T3
-
107715001765 Dash KitDash Kit
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
118705007040 LH FootrestLH Footrest
-
118705007039 RH FootrestRH Footrest
-
119705007041 Front FaciaFront Facia
-
120705007095 Gauge SupportGauge Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
129708301154 Yellow Hood KitYellow Hood Kit
-
129715002237 Grey Hood KitGrey Hood Kit
-
131732610072 Push NutPush Nut
-
132715002180 Yellow LH Front Fender Kit. Model-Yellow North AmericaYellow LH Front Fender Kit. Model-Yellow North America
-
132715002184 Grey LH Front Fender Kit. Model-GreyGrey LH Front Fender Kit. Model-Grey
-
132715001510 Yellow RH Front Fender Kit. Model-Yellow North AmericaYellow RH Front Fender Kit. Model-Yellow North America
-
132715002209 Grey RH Front Fender Kit. Model-GreyGrey RH Front Fender Kit. Model-Grey
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136705007967 Grey LH Rear FenderGrey LH Rear Fender
-
136705008113 Yellow LH Rear FenderYellow LH Rear Fender
-
136705007968 Grey RH Rear FenderGrey RH Rear Fender
-
136705008114 Yellow RH Rear FenderYellow RH Rear Fender
-
143715001852 Rack Kit. Model-North AmericaRack Kit. Model-North America
-
143715002240 Rack Kit. Model-InternationalRack Kit. Model-International
-
143715002240 Rack Kit. Model-EuropeRack Kit. Model-Europe
