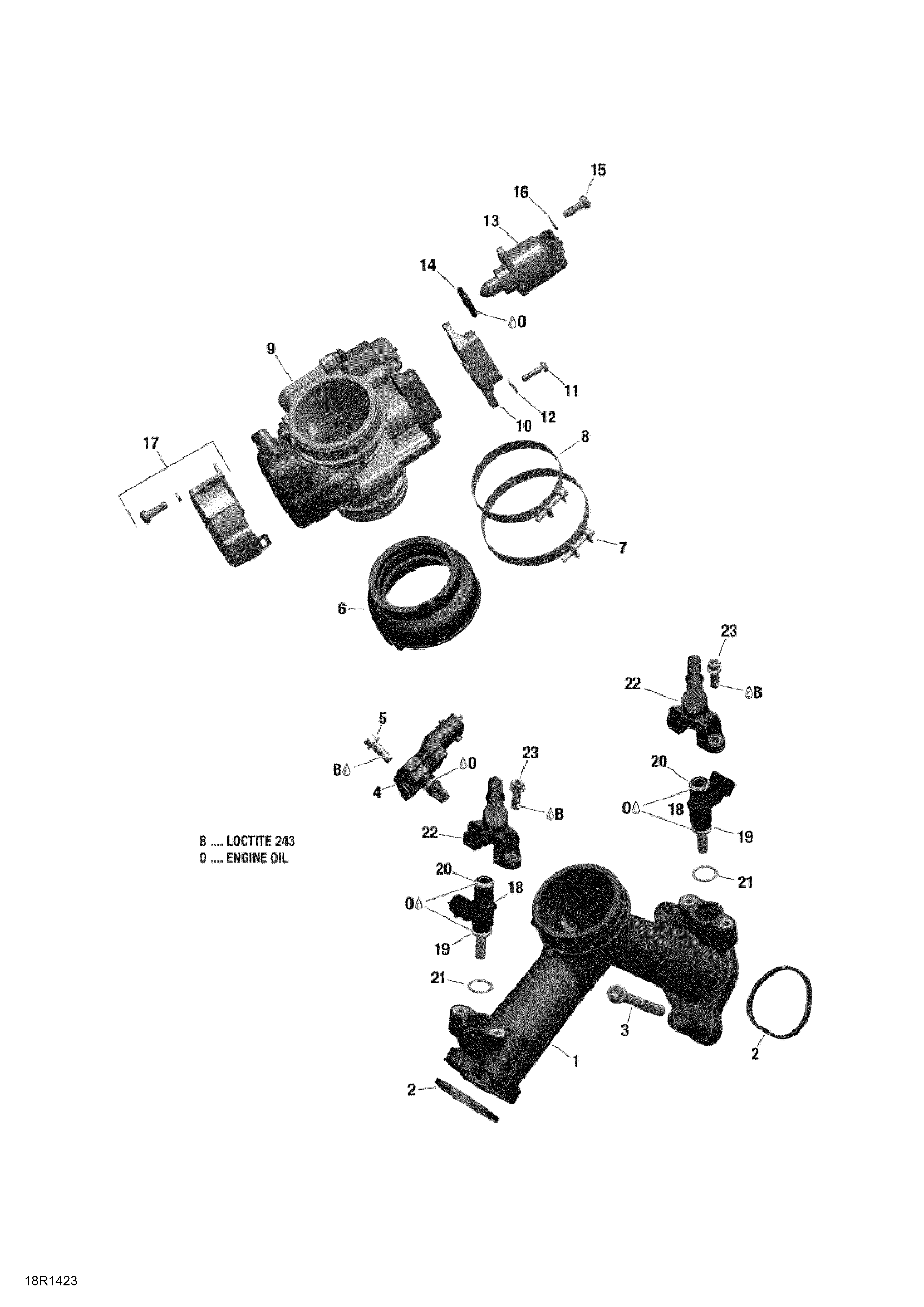

02- Air Intake Manifold And Throttle Body _18R1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1420667520 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420440397 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420267045 Intake NeckIntake Neck
-
7420251209 ClampClamp
-
8420251480 ClampClamp
-
9420685322 Throttle Body Ass'yThrottle Body Ass'y
-
13420665940 Idle Bypass ValveIdle Bypass Valve
-
14420631780 O-RingO-Ring
-
15420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
16420845710 Snap RingSnap Ring
-
17420281540 Cover KitCover Kit
-
18-20420874830 Injection Valve Ass'yInjection Valve Ass'y
-
19420431890 O-RingO-Ring
-
20420631220 O-RingO-Ring
-
21420631295 O-RingO-Ring
-
22420874901 Fuel RailFuel Rail
-
23420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
