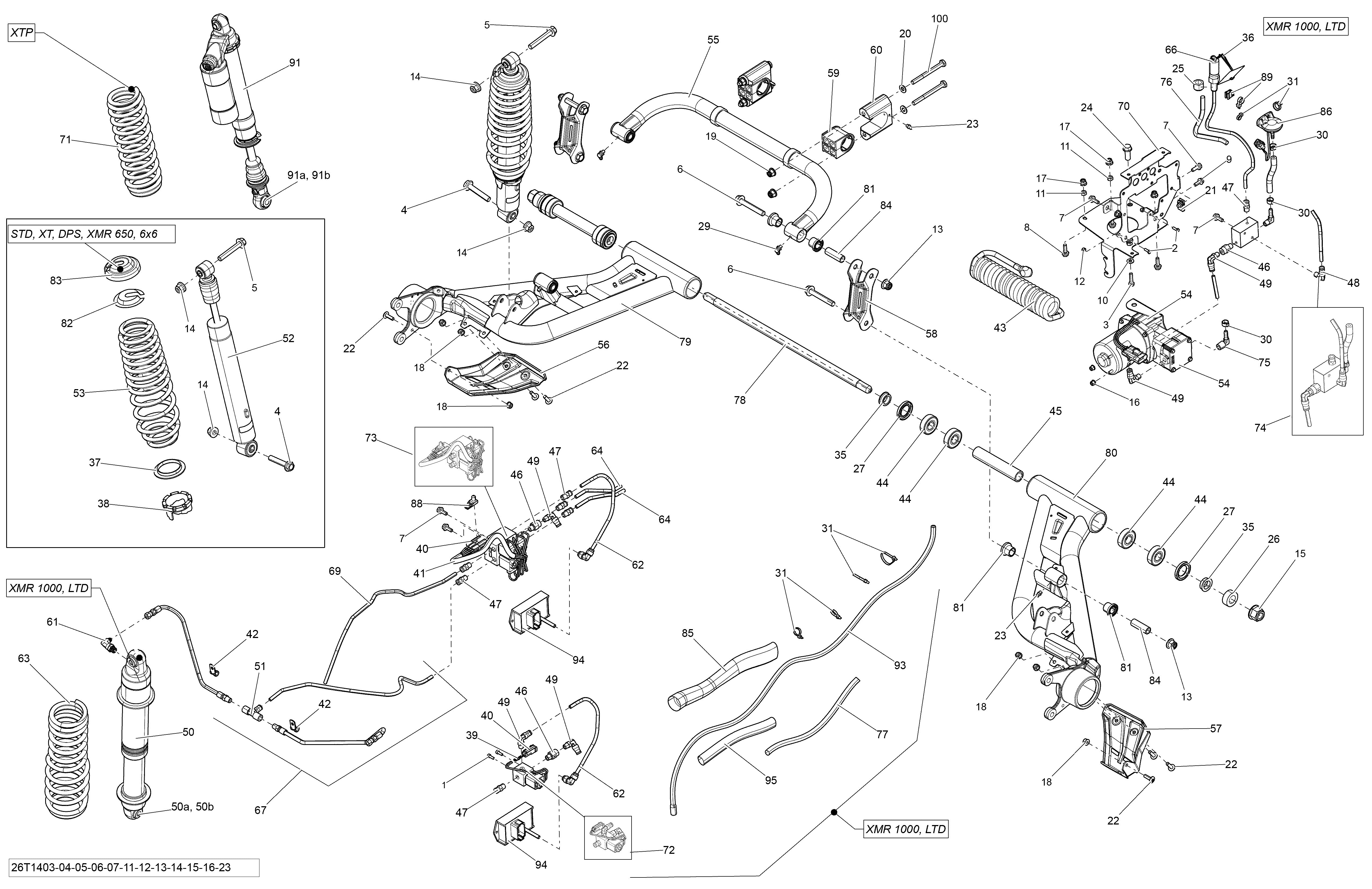

08- Rear Suspension _26T1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
4207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
5207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
18233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081430 Flat Washer M8Flat Washer M8
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000315 Grease FittingGrease Fitting
-
26250200112 Flat Washer M17Flat Washer M17
-
27293200132 SealSeal
-
29293550056 Grease Fitting 90°Grease Fitting 90°
-
35706001282 SpacerSpacer
-
37503187500 Spring Guide. Model-DPS, XTSpring Guide. Model-DPS, XT
-
38505070150 Adjustment Cam. Model-DPS, XTAdjustment Cam. Model-DPS, XT
-
44706000826 Ball BearingBall Bearing
-
45706000828 SpacerSpacer
-
52706000958 Shock. Model-DPS, XTShock. Model-DPS, XT
-
53706000963 Black Spring. Model-DPS, XTBlack Spring. Model-DPS, XT
-
55706000988 SwaybarSwaybar
-
56706001009 LH ProtectorLH Protector
-
57706001010 RH ProtectorRH Protector
-
59706001098 CushionCushion
-
60706001099 Bushing HolderBushing Holder
-
78706001664 Axial Pivot M16Axial Pivot M16
-
79706001543 Black LH Swing ArmBlack LH Swing Arm
-
80706001544 Black RH Swing ArmBlack RH Swing Arm
-
81706200181 BushingBushing
-
82706200785 Cap. Model-DPS, XTCap. Model-DPS, XT
-
83706200881 Spring Stopper. Model-DPS, XTSpring Stopper. Model-DPS, XT
-
84706201587 SleeveSleeve
-
100207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
