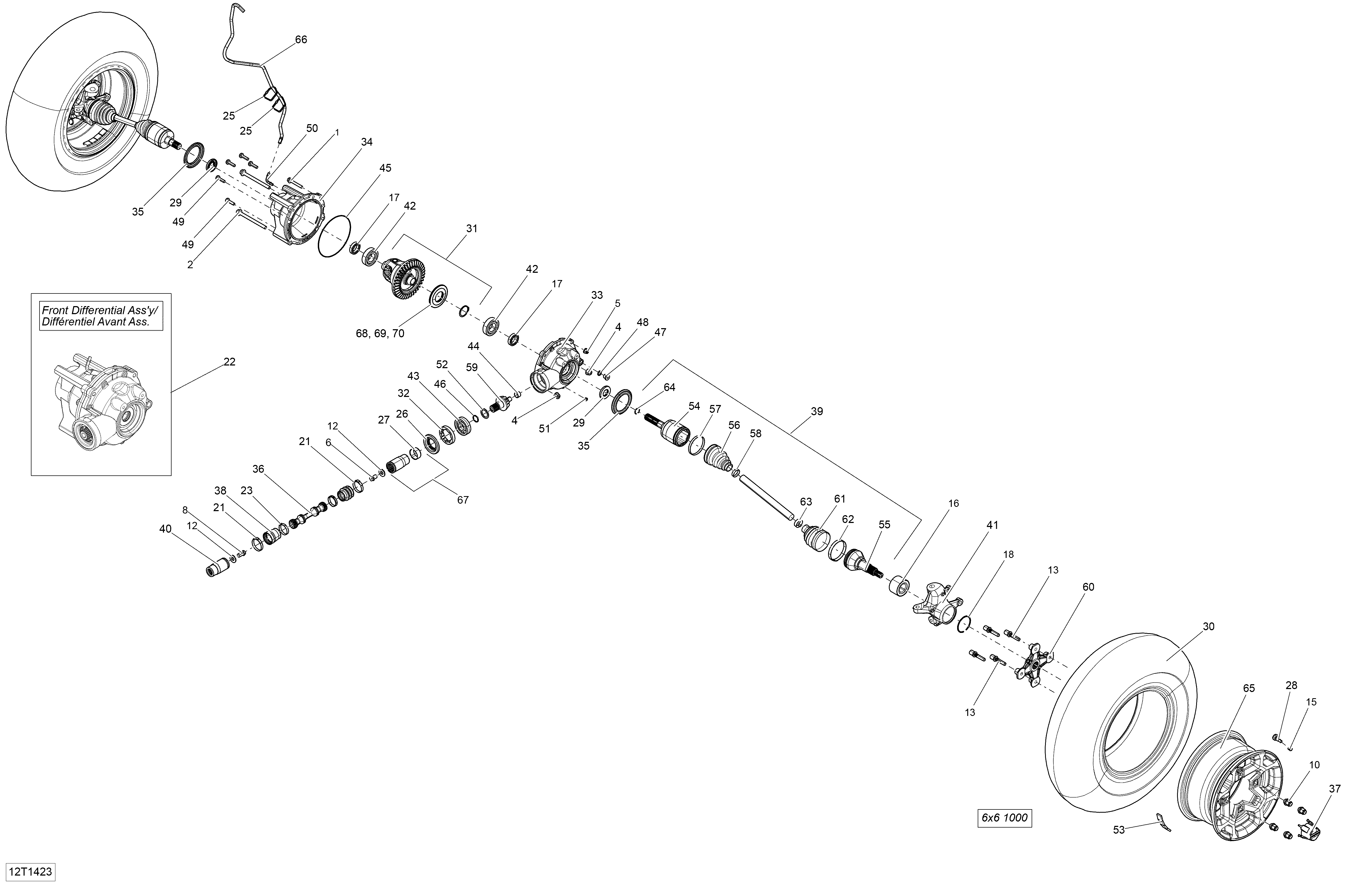

07- Drive System, Front _12T1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
7250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7b293450317 InsertInsert
-
8250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
10250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
11250200049 Spring WasherSpring Washer
-
12250200102 Flat Washer M12Flat Washer M12
-
13250300048 Wheel StudWheel Stud
-
14250400036 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293350040 Cone BearingCone Bearing
-
17293350044 Ball BearingBall Bearing
-
18293370019 CirclipCirclip
-
21293650138 Oetiker Gear ClampOetiker Gear Clamp
-
22705401485 Front Differential Ass'yFront Differential Ass'y
-
23293650199 Oetiker ClampOetiker Clamp
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26705401481 Oil SealOil Seal
-
27705400036 Wear RingWear Ring
-
28705400193 Rim Valve With CapRim Valve With Cap
-
29705401481 Oil SealOil Seal
-
30705401333 Front Tire. XTPFront Tire. XTP
-
31705400822 DifferentialDifferential
-
32705400661 NutNut
-
33705400761 Front CoverFront Cover
-
34705400762 Front CoverFront Cover
-
35705400780 Wear SleeveWear Sleeve
-
36705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
37705400928 Wheel CapWheel Cap
-
38705401093 Rubber BootRubber Boot
-
39705401116 RH Homocinetic JointRH Homocinetic Joint
-
39705401115 LH Homocinetic JointLH Homocinetic Joint
-
40703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
41705401290 LH KnuckleLH Knuckle
-
41705401291 RH KnuckleRH Knuckle
-
42705500259 Ball BearingBall Bearing
-
43705500260 Ball BearingBall Bearing
-
44705500261 Needle BearingNeedle Bearing
-
45705500265 SealSeal
-
46705500267 O-RingO-Ring
-
47705500504 Fill Level PlugFill Level Plug
-
48705500506 Copper WasherCopper Washer
-
49705500892 ScrewScrew
-
50705500893 Vent ValveVent Valve
-
51705500894 Drain PlugDrain Plug
-
52705501162 Pinion Gear ShimPinion Gear Shim
-
53705501385 1/2 OZ Weight1/2 OZ Weight
-
54705401348 RH Plunging JointRH Plunging Joint
-
54705401350 LH Plunging JointLH Plunging Joint
-
55705401344 CV JointCV Joint
-
56705401346 Boot Kit, Differential Side. Includes 67 to 67bBoot Kit, Differential Side. Includes 67 to 67b
-
57715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
58715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
59705501588 10 Teeth Pinion10 Teeth Pinion
-
60705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
61705401345 Boot Kit, Wheel Side. Includes 70 to 70bBoot Kit, Wheel Side. Includes 70 to 70b
-
62715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
63715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
64705401349 Circlip JointCirclip Joint
-
65705401420 Black Front Rim. XT Except CamoBlack Front Rim. XT Except Camo
-
66415080200 Hose, PolyurethaneHose, Polyurethane
-
67703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
68703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
69703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
70703500049 Pinion Shim KitPinion Shim Kit
