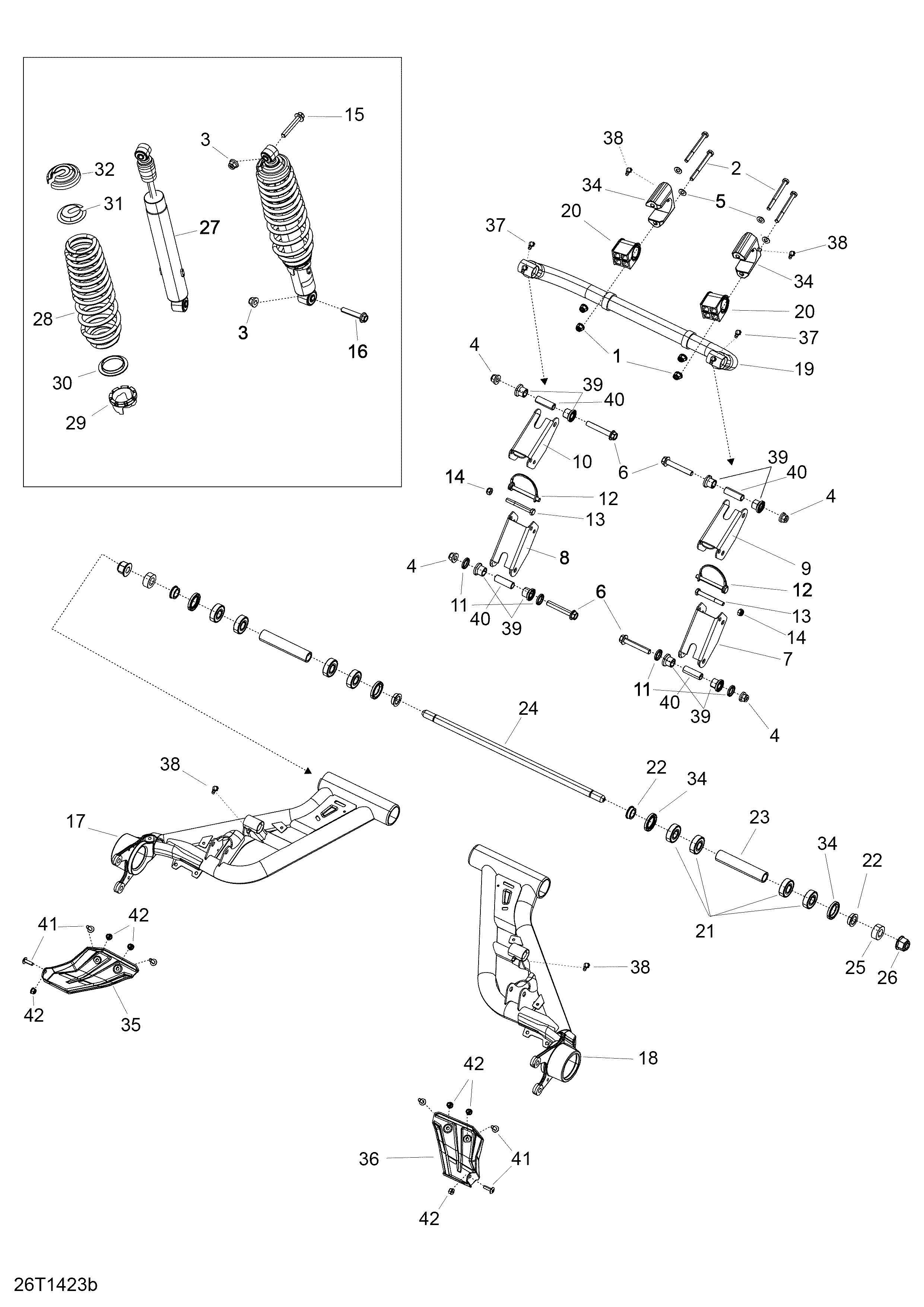

08- Rear Suspension _26T1423b для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5234081430 Flat Washer M8Flat Washer M8
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
7706001765 Linkage, Outer Part RHLinkage, Outer Part RH
-
8706001600 Linkage, Outer Part LeftLinkage, Outer Part Left
-
9706001766 Linkage, Inner Part RHLinkage, Inner Part RH
-
10706001601 Linkage, Inner PartLinkage, Inner Part
-
11505073634 WasherWasher
-
12706001602 Pin Onto The ShaftPin Onto The Shaft
-
13207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
14232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
15207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
16207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
17706001543 Black LH Swing ArmBlack LH Swing Arm
-
18706001544 Black RH Swing ArmBlack RH Swing Arm
-
19706000988 SwaybarSwaybar
-
20706001098 CushionCushion
-
21706000826 Ball BearingBall Bearing
-
22706001282 SpacerSpacer
-
23706000828 SpacerSpacer
-
24706001664 Axial Pivot M16Axial Pivot M16
-
25250200112 Flat Washer M17Flat Washer M17
-
26233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
27706000958 ShockShock
-
28706000963 Black SpringBlack Spring
-
29505070150 Adjustment CamAdjustment Cam
-
30503187500 Spring GuideSpring Guide
-
31706200785 CapCap
-
32706200881 Spring StopperSpring Stopper
-
33706001099 Bushing HolderBushing Holder
-
34293200132 SealSeal
-
35706001009 LH ProtectorLH Protector
-
36706001010 RH ProtectorRH Protector
-
37293550056 Grease Fitting 90°Grease Fitting 90°
-
38250000315 Grease FittingGrease Fitting
-
39706200181 BushingBushing
-
40706201587 SleeveSleeve
-
41250000075 Torx Screw M6 X 20Torx Screw M6 X 20
-
42233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
