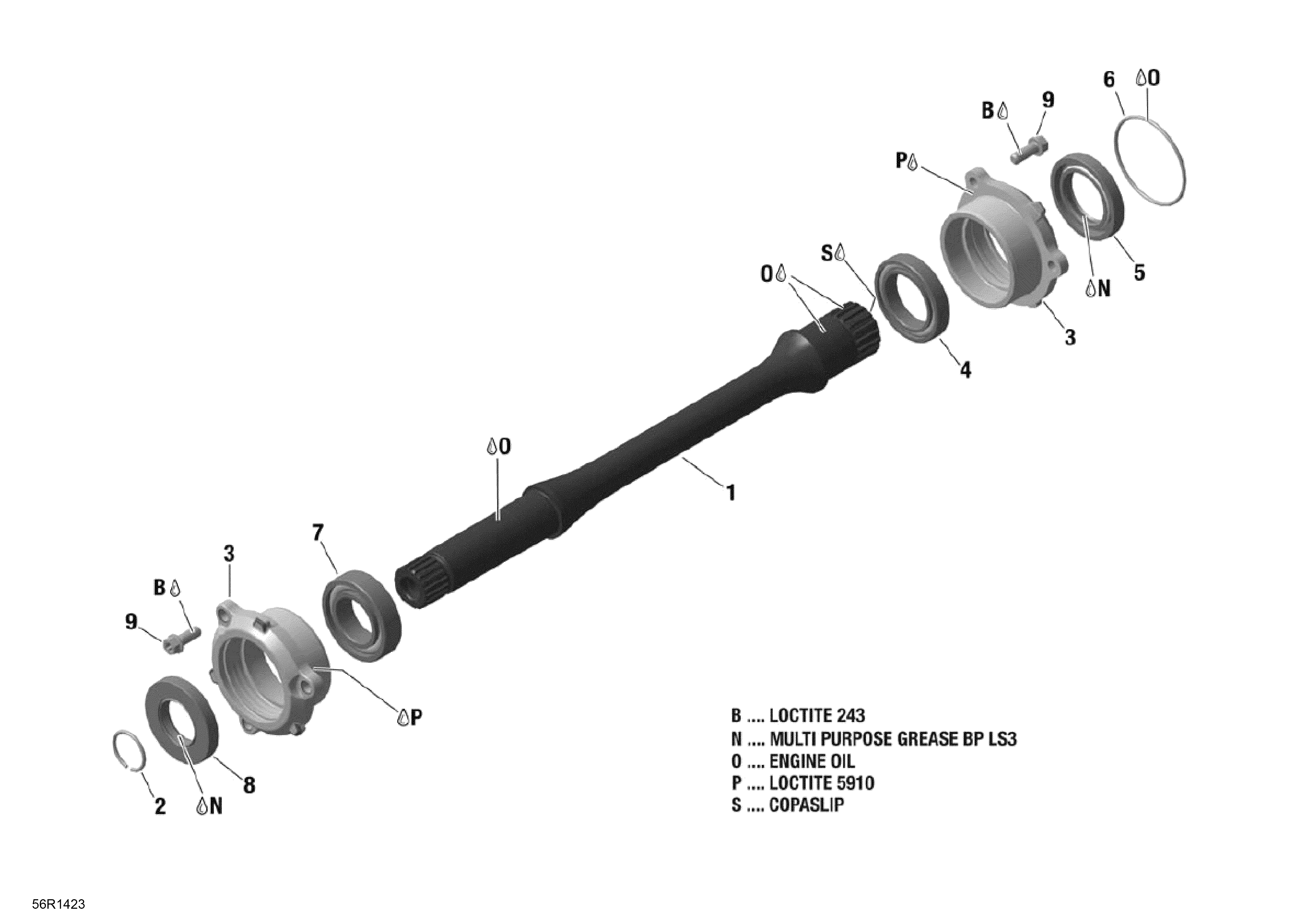

08- Drive Shaft _56R1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1420620517 Drive Shaft Ass'y. Includes 1-2Drive Shaft Ass'y. Includes 1-2
-
2420245010 CirclipCirclip
-
3420611221 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-RingO-Ring
-
7420232341 Ball BearingBall Bearing
-
8420430588 Oil SealOil Seal
-
9420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
