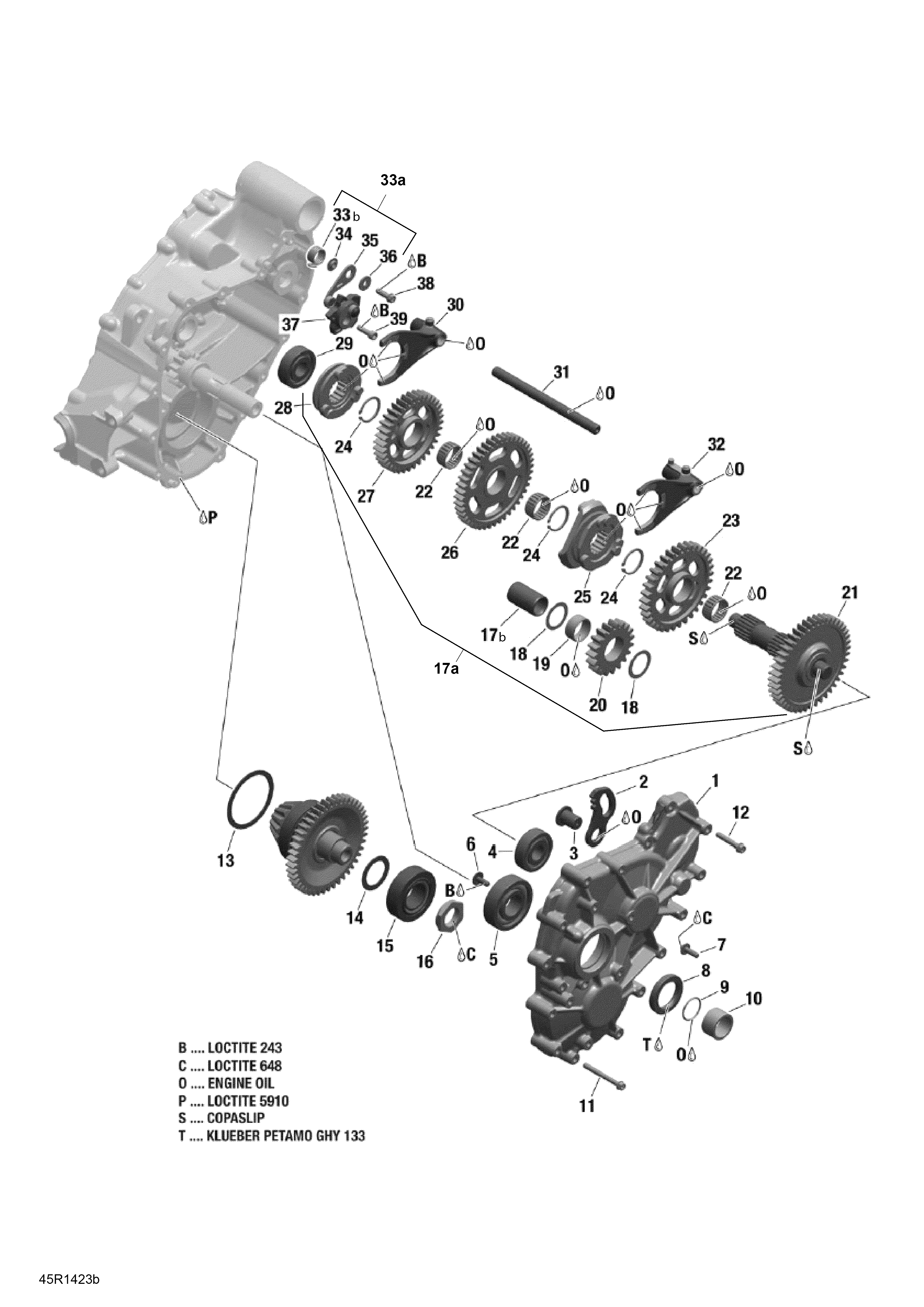

05- Gear Box 2 _45R1423b для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
2420257654 Parking Lock LeverParking Lock Lever
-
3420647122 Collar SleeveCollar Sleeve
-
4420932815 Ball Bearing 6303EBall Bearing 6303E
-
5420932825 Ball BearingBall Bearing
-
6420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420441431 Distance Screw M6Distance Screw M6
-
8420950089 Oil SealOil Seal
-
9420631610 O-RingO-Ring
-
10420647250 Distance RingDistance Ring
-
11420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
12420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13420281313 Shim SetShim Set
-
14420281315 Shim SetShim Set
-
15420632751 Tapered Roller Bearing 32206 BJ2/QCL7CVATapered Roller Bearing 32206 BJ2/QCL7CVA
-
16420842582 Hex. Nut M24 X 1.5Hex. Nut M24 X 1.5
-
18420944476 Thrust WasherThrust Washer
-
19420932930 Needle BearingNeedle Bearing
-
22420632070 Needle BearingNeedle Bearing
-
23420434873 Gear Pinion, 34 TeethGear Pinion, 34 Teeth
-
24420845771 Retaining RingRetaining Ring
-
25420257953 Shifting SleeveShifting Sleeve
-
26420434865 Gear Pinion, 46 TeethGear Pinion, 46 Teeth
-
27420434851 Gear Pinion, 36 TeethGear Pinion, 36 Teeth
-
28420257944 Shifting SleeveShifting Sleeve
-
30420257629 Shift ForkShift Fork
-
31420258387 Fork SpindleFork Spindle
-
32420258515 Shift Fork Ass'yShift Fork Ass'y
-
33a420248532 Index Lever Ass'y. Includes 33b-37Index Lever Ass'y. Includes 33b-37
-
38420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
39420241939 Allen Screw M6 X 20Allen Screw M6 X 20
