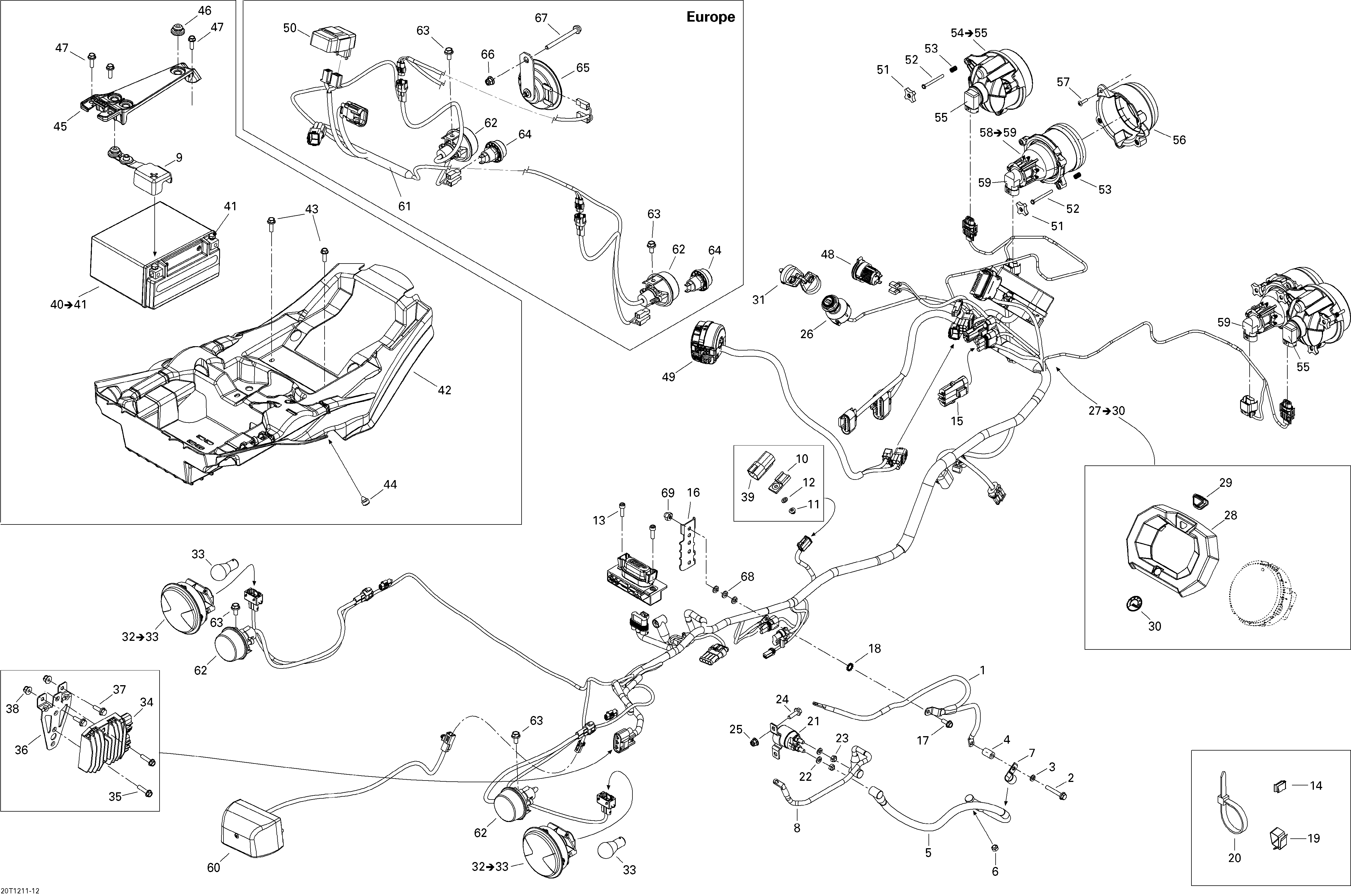

10- Electrical System для BRP Outlander STD, XT, 1000 EFI - 2012

  • №
    Артикул
    Название
  • 1
    710001747 Ground Cable Ass'y
    Ground Cable Ass'y
  • 2
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 5
    710001750 Positive Cable
    Positive Cable
  • 6
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 7
    518321570 Open Clamp
    Open Clamp
  • 8
    710001749 Positive Cable
    Positive Cable
  • 9
    710002569 Cap
    Cap
  • 10
    270000141 Clip
    Clip
  • 11
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 12
    391301600 Washer
    Washer
  • 13
    205562044 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 14
    710000992 Clip
    Clip
  • 15
    710000917 Connector Ass'y
    Connector Ass'y
  • 16
    710002567 Bracket
    Bracket
  • 17
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 18
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 19
    414227300 Clip
    Clip
  • 20
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 20
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 20
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 20
    293750041 Tie-rap 627 mm
    Tie-rap 627 mm
  • 21
    710001364 Starter Relay
    Starter Relay
  • 22
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 23
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 24
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 25
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 26
    710002327 Ignition Switch
    Ignition Switch
  • 27
    710002696 Speedometer Ass'y. Includes 27 to 30
    Speedometer Ass'y. Includes 27 to 30
  • 28
    710002092 Trim Ring
    Trim Ring
  • 29
    710001473 Button
    Button
  • 30
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 31
    710000817 Black-Electronic Key. Europe
    Black-Electronic Key. Europe
  • 31
    710000817 Black-Electronic Key. Except Europe
    Black-Electronic Key. Except Europe
  • 31
    710002183 Grey-Electronic Key
    Grey-Electronic Key
  • 32
    710001645 Tail Light. Includes 32 to 33
    Tail Light. Includes 32 to 33
  • 33
    520000758 Bulb
    Bulb
  • 34
    710001103 Voltage Regulator. STD Except Europe
    Voltage Regulator. STD Except Europe
  • 34
    710001191 Voltage Regulator. XT Except Europe
    Voltage Regulator. XT Except Europe
  • 34
    710001191 Voltage Regulator. Europe
    Voltage Regulator. Europe
  • 35
    210262580 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 36
    710001752 Rectifier Support
    Rectifier Support
  • 37
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 38
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 39
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 40
    410301203 Battery Ass'y, 18 Amperes. Includes 40 to 41
    Battery Ass'y, 18 Amperes. Includes 40 to 41
  • 41
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 42
    710002892 Battery Support
    Battery Support
  • 43
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 44
    293830005 Rubber Plug
    Rubber Plug
  • 45
    710002404 Fixation Plate
    Fixation Plate
  • 46
    705003666 Rubber Grommet
    Rubber Grommet
  • 47
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 48
    710001248 Outlet DC
    Outlet DC
  • 49
    710002963 Multi-Function Handle. Europe
    Multi-Function Handle. Europe
  • 49
    710002883 Multi-fonction Handle. XT Except Europe
    Multi-fonction Handle. XT Except Europe
  • 49
    710002884 Multi-Fonction Handle. STD Except Europe
    Multi-Fonction Handle. STD Except Europe
  • 50
    710002393 Flasher Unit. Europe
    Flasher Unit. Europe
  • 51
    572106600 Handle
    Handle
  • 52
    241044540 Hexagonal Screw K40 X 45
    Hexagonal Screw K40 X 45
  • 53
    517168600 Spring
    Spring
  • 54
    710002191 Low Beam. Includes 54 to 55
    Low Beam. Includes 54 to 55
  • 55
    715900141 Bulb 12V 55W
    Bulb 12V 55W
  • 56
    710002291 RH High Front Housing
    RH High Front Housing
  • 56
    710002292 LH High Front Housing
    LH High Front Housing
  • 57
    250000084 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 58
    710002525 High Beam Ass'y. Includes 58 to 59
    High Beam Ass'y. Includes 58 to 59
  • 59
    415129249 Halogen Bulb
    Halogen Bulb
  • 60
    710002721 Licence Light. Europe
    Licence Light. Europe
  • 61
    710002481 Harness Ass'y. Europe
    Harness Ass'y. Europe
  • 62
    710002047 Flasher. Europe
    Flasher. Europe
  • 63
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Europe
    Hex. Flanged Screw M6 X 12, Scotch Grip. Europe
  • 64
    710001726 Day Light. Europe
    Day Light. Europe
  • 65
    710000983 Horn. Europe
    Horn. Europe
  • 66
    233261414 Hex. Flanged Elastic Nut M6. Europe
    Hex. Flanged Elastic Nut M6. Europe
  • 67
    207667044 Hex. Flange Screw M6 X 70. Europe
    Hex. Flange Screw M6 X 70. Europe
