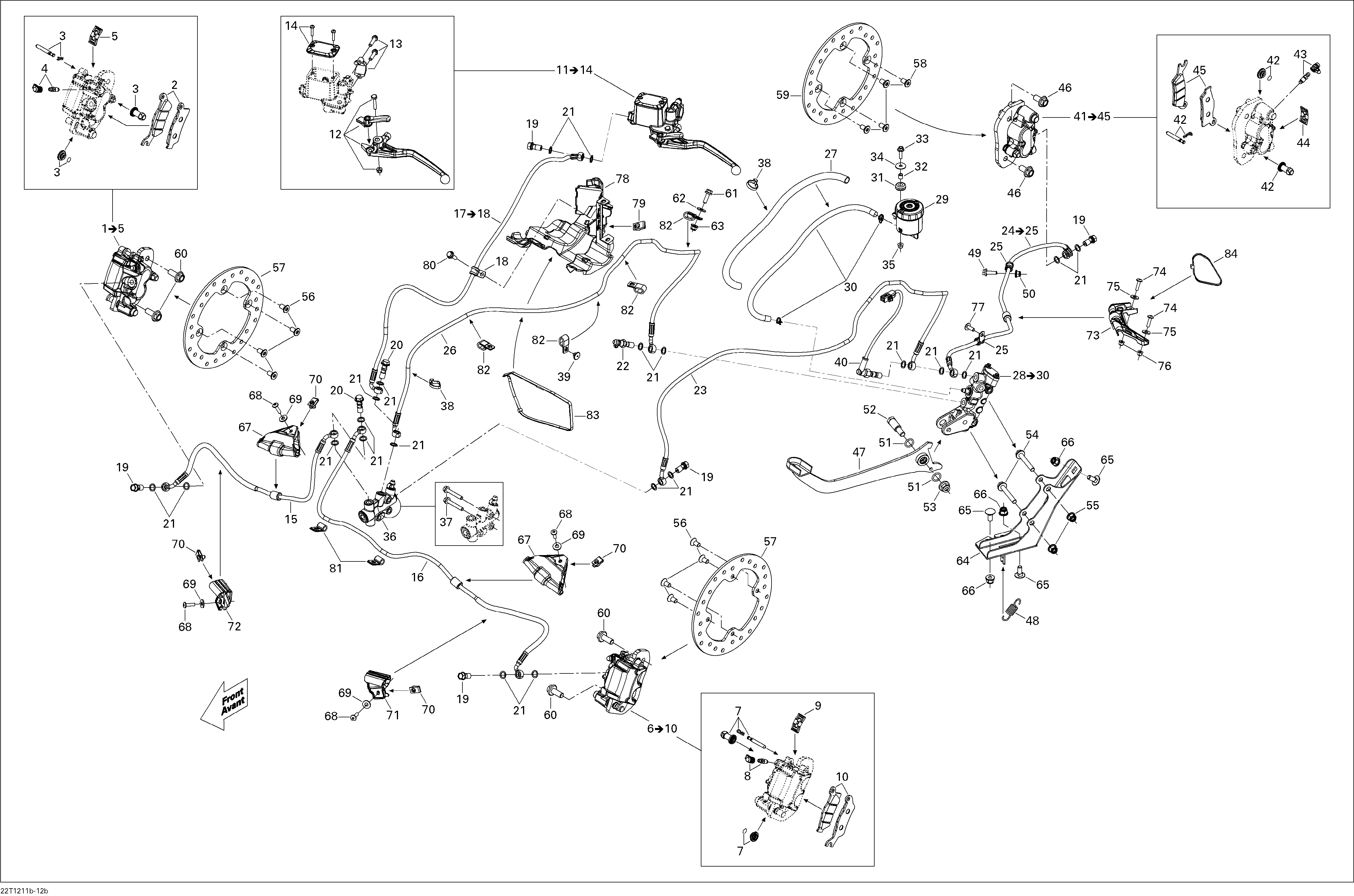

06- Hydraulic Brakes Europe для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1705600861 RH Front Caliper Ass'y. Includes 1 to 5RH Front Caliper Ass'y. Includes 1 to 5
-
2705601014 Brake Pad KitBrake Pad Kit
-
3705601016 Pin SetPin Set
-
4705601017 Bleeding ScrewBleeding Screw
-
5705601018 SpringSpring
-
6705600862 LH Front Caliper Ass'y. Includes 6 to 10LH Front Caliper Ass'y. Includes 6 to 10
-
7705601016 Pin SetPin Set
-
8705601017 Bleeding ScrewBleeding Screw
-
9705601018 SpringSpring
-
10705601015 Brake Pad KitBrake Pad Kit
-
11705600865 Front Master Cylinder. Includes 11 to 14Front Master Cylinder. Includes 11 to 14
-
12705601013 Lever SetLever Set
-
13705601022 Bracket KitBracket Kit
-
14705601021 Cap SetCap Set
-
15705601004 RH Brake LineRH Brake Line
-
16705601003 LH Brake LineLH Brake Line
-
17705600967 Brake Handle Line. Includes 17 to 18Brake Handle Line. Includes 17 to 18
-
18705600459 ClampClamp
-
19705600609 Banjo BoltBanjo Bolt
-
20705600958 Banjo BoltBanjo Bolt
-
21705600310 Copper WasherCopper Washer
-
22705601051 Bleeding ScrewBleeding Screw
-
23705600964 Outlet Hose, Master CylinderOutlet Hose, Master Cylinder
-
24705601005 RH Brake Line. Includes 24 to 25RH Brake Line. Includes 24 to 25
-
25705600459 ClampClamp
-
26705600973 Inlet Hose, Master CylinderInlet Hose, Master Cylinder
-
27415079900 Tubing 10 mmTubing 10 mm
-
28705600982 Rear Cylinder Master Ass'y. Includes 28 to 30Rear Cylinder Master Ass'y. Includes 28 to 30
-
29705601020 Oil TankOil Tank
-
30705601019 Housing Oil HoseHousing Oil Hose
-
31414036300 GrommetGrommet
-
32293900112 BushingBushing
-
33207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
34224060201 Flat WasherFlat Washer
-
35233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
36705600994 SplitterSplitter
-
37210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
39390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
40705600997 Brake SwitchBrake Switch
-
41705600859 RH Rear Caliper Ass'y. Includes 41 to 45RH Rear Caliper Ass'y. Includes 41 to 45
-
42705601016 Pin SetPin Set
-
43705601017 Bleeding ScrewBleeding Screw
-
44705601018 SpringSpring
-
45705601014 Brake Pad KitBrake Pad Kit
-
46207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
47705600819 Brake PedalBrake Pedal
-
48705600792 Brake Pedal SpringBrake Pedal Spring
-
49207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51293300144 O-RingO-Ring
-
52250000513 Shoulder Screw M10Shoulder Screw M10
-
53233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
54207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
55233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
57705600999 Disc BrakeDisc Brake
-
58235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
59705600999 Disc BrakeDisc Brake
-
60207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
61207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
62234062410 Flat Washer 6 mmFlat Washer 6 mm
-
63233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
64705202000 Bracket Brake PedalBracket Brake Pedal
-
65207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
66233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
67705600962 Front Hose ProtectorFront Hose Protector
-
68250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
69250200025 Washer M5Washer M5
-
70250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
71705601048 LH Hose BracketLH Hose Bracket
-
72705601049 RH Hose BracketRH Hose Bracket
-
73705600963 Rear Hose ProtectorRear Hose Protector
-
74250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
75250200025 Washer M5Washer M5
-
76233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
77250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
78705600983 Front Hose BracketFront Hose Bracket
-
79250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
80207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
81293650219 ClampClamp
-
82293650220 ClampClamp
-
83293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
84293750008 Tie-Rap 350 mmTie-Rap 350 mm
