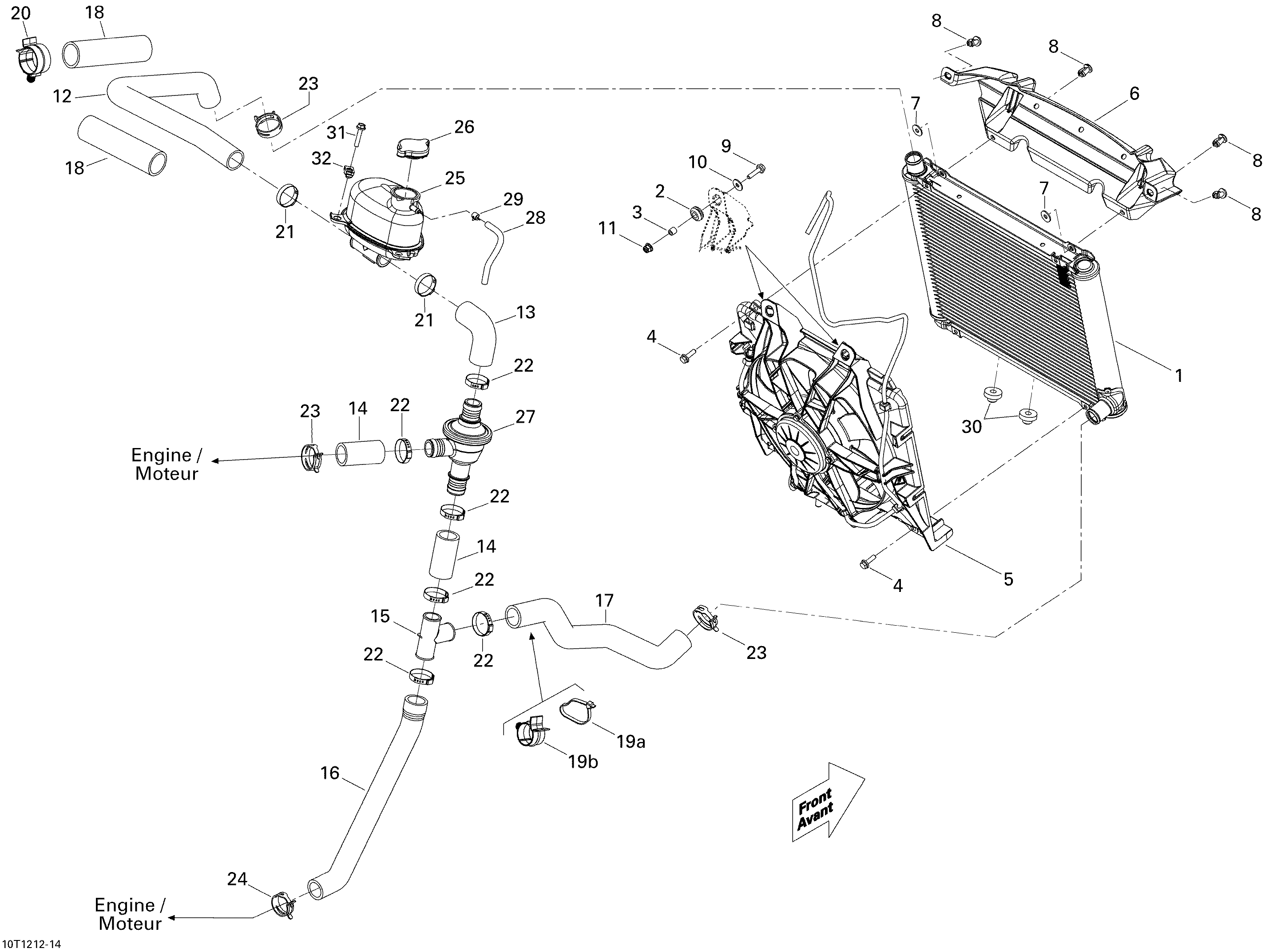

01- Cooling System для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1709200286 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3293900105 BushingBushing
-
4207662034 Hex. Flanged ScrewHex. Flanged Screw
-
5709200309 Fan Ass'yFan Ass'y
-
6709200393 Air Deflector. OutlanderAir Deflector. Outlander
-
7234081410 Flat Washer 8 mm. OutlanderFlat Washer 8 mm. Outlander
-
8293150089 Tuflok Plastic Rivet. OutlanderTuflok Plastic Rivet. Outlander
-
9207662534 Hex. Flanged ScrewHex. Flanged Screw
-
10250200082 Flat WasherFlat Washer
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12709200278 Radiator Inlet HoseRadiator Inlet Hose
-
13709200280 Thermostat Inlet HoseThermostat Inlet Hose
-
14709200299 HoseHose
-
15509000219 T-FittingT-Fitting
-
16709200392 HoseHose
-
17709200390 Radiator Outlet HoseRadiator Outlet Hose
-
18515176260 Tubing 35mmTubing 35mm
-
19b275500590 Retainer. OutlanderRetainer. Outlander
-
20275500590 RetainerRetainer
-
21509000162 Gear ClampGear Clamp
-
22509000162 Gear ClampGear Clamp
-
23293650166 Norma Spring ClampNorma Spring Clamp
-
24293650108 Norma Spring ClampNorma Spring Clamp
-
25709200297 Coolant TankCoolant Tank
-
26709200207 Pressure CapPressure Cap
-
27709200406 ThermostatThermostat
-
28415080200 Hose, PolyurethaneHose, Polyurethane
-
29414554800 Spring ClampSpring Clamp
-
30709200285 GrommetGrommet
-
31207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
32250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
