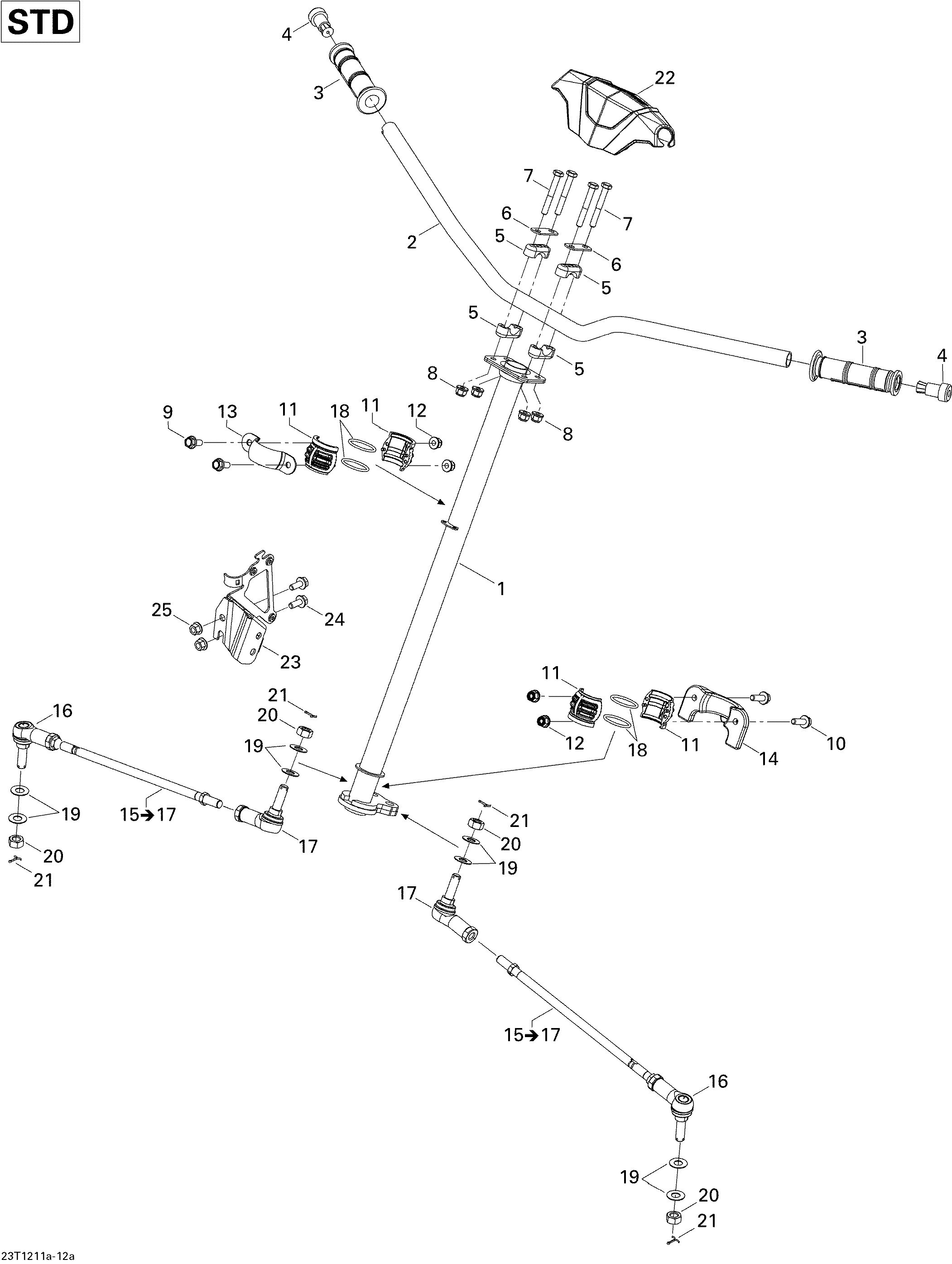

07- Steering STD для BRP Outlander STD, XT, 1000 EFI - 2012
‹-+›
-
№АртикулНазвание
-
1709401008 Main TubeMain Tube
-
2709400877 Handle Bar, BlackHandle Bar, Black
-
3709400493 Handle GripHandle Grip
-
4709400449 End PieceEnd Piece
-
5709400919 Steering SupportSteering Support
-
6709400509 StiffnerStiffner
-
7207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
8233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
11709400783 Spherical Half BushingSpherical Half Bushing
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13709400827 Upper Column AttachmentUpper Column Attachment
-
14709400912 Lower Column AttachmentLower Column Attachment
-
15703500783 Tie-Rod Ass'y. Includes 15 to 17Tie-Rod Ass'y. Includes 15 to 17
-
16709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
17709400490 Ball JointBall Joint
-
18293300068 O-RingO-Ring
-
19706200281 Hardened WasherHardened Washer
-
20250100099 Nut M12Nut M12
-
21211400013 Cotter PinCotter Pin
-
22709400939 CoverCover
-
23709400994 RH Steering BracketRH Steering Bracket
-
24207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
25233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
