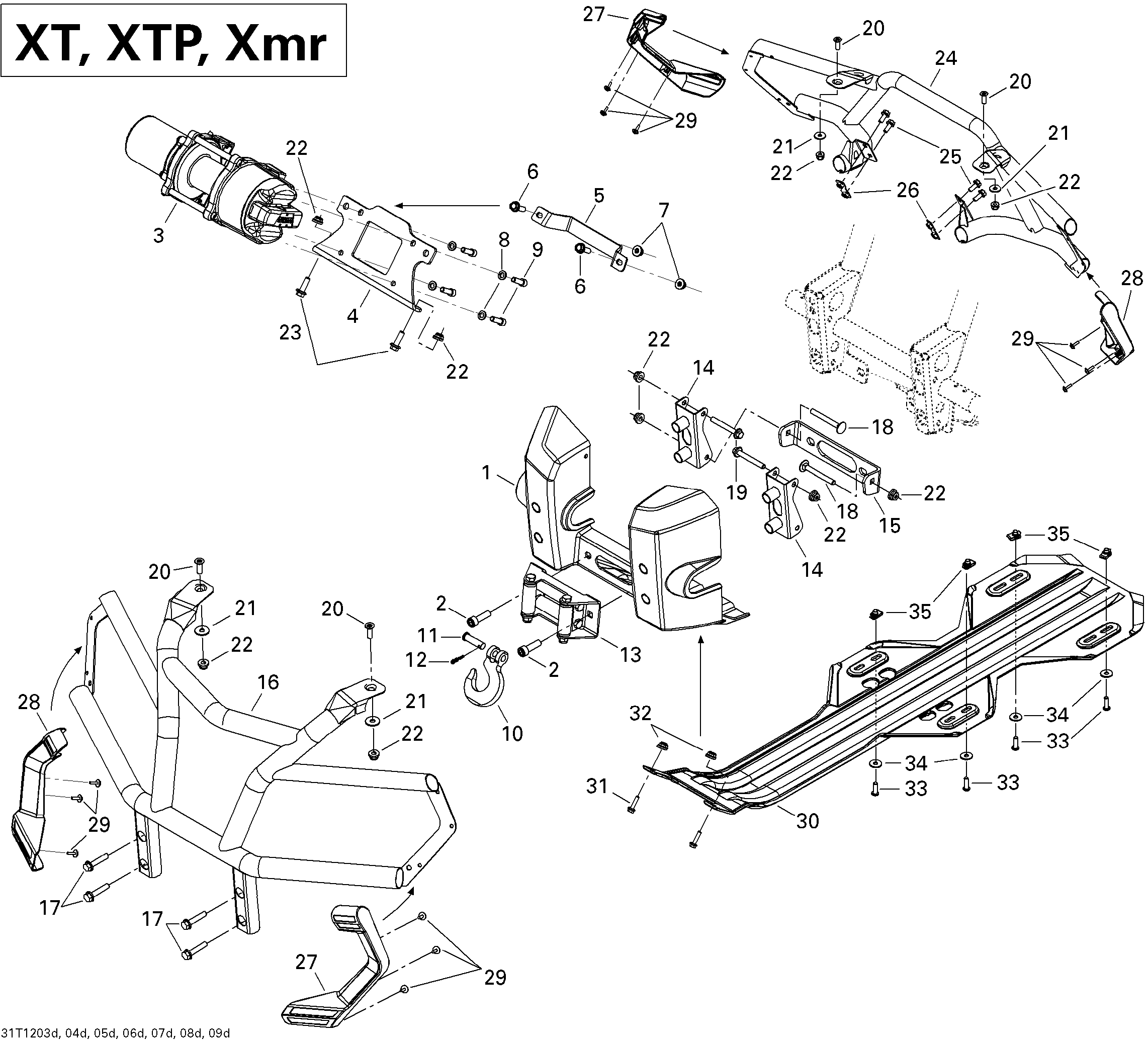

09- Body And Accessories 4 для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1705003495 Guard Plate. STDGuard Plate. STD
-
1705003496 Guard Plate. XT, XTPGuard Plate. XT, XTP
-
2205003544 Socket Screw M10 X 35. XT, XTPSocket Screw M10 X 35. XT, XTP
-
3705003296 Winch. XT, XTPWinch. XT, XTP
-
4705004278 Mounting Plate, Black. XT, XTPMounting Plate, Black. XT, XTP
-
5705001460 Winch Bracket, Black. XT, XTPWinch Bracket, Black. XT, XTP
-
6207682544 Hex. Flanged Screw M8 X 25. XT, XTPHex. Flanged Screw M8 X 25. XT, XTP
-
7233281414 Hex. Flanged Elastic Nut M8. XT, XTPHex. Flanged Elastic Nut M8. XT, XTP
-
8234181401 Lock Washer 8 mm. XT, XTPLock Washer 8 mm. XT, XTP
-
9205082044 Socket Head Screw M8 X 20. XT, XTPSocket Head Screw M8 X 20. XT, XTP
-
10705002329 Hook. XT, XTPHook. XT, XTP
-
11250400021 Clevis Pin. XT, XTPClevis Pin. XT, XTP
-
12250400022 Cotter Pin. XT, XTPCotter Pin. XT, XTP
-
13715000011 Winch Roller. XT, XTPWinch Roller. XT, XTP
-
14705003828 Bumper Bracket. XT, XTPBumper Bracket. XT, XTP
-
15705003649 Winch Bracket. XT, XTPWinch Bracket. XT, XTP
-
16705002812 Front Bumber. XT, XTPFront Bumber. XT, XTP
-
17207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. XT, XTPHex. Flanged Screw M8 X 40, Scotch Grip. XT, XTP
-
18207787044 Carriage Bolt M8 X 70. XT, XTPCarriage Bolt M8 X 70. XT, XTP
-
19207686044 Hex. Flanged Screw M8 x 60. XT, XTPHex. Flanged Screw M8 x 60. XT, XTP
-
20235482584 Torx Screw M8 X 25. XT, XTPTorx Screw M8 X 25. XT, XTP
-
21234082410 Flat Washer 8 mm. XT, XTPFlat Washer 8 mm. XT, XTP
-
22233281414 Hex. Flanged Elastic Nut M8. XT, XTPHex. Flanged Elastic Nut M8. XT, XTP
-
23207682544 Hex. Flanged Screw M8 X 25. XT, XTPHex. Flanged Screw M8 X 25. XT, XTP
-
24705002806 Rear Bumber. XT, XTPRear Bumber. XT, XTP
-
25207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. XT, XTPHex. Flanged Screw M8 X 20, Scotch Grip. XT, XTP
-
26705003796 Link Plate. XT, XTPLink Plate. XT, XTP
-
27705002802 LH Front Cap. XT, XTPLH Front Cap. XT, XTP
-
28705002803 RH Front Cap. XT, XTPRH Front Cap. XT, XTP
-
29250000113 Screw M4 X 16, Type K-40. XT, XTPScrew M4 X 16, Type K-40. XT, XTP
-
30715000688 Skid PlateSkid Plate
-
31207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
34234082410 Flat Washer 8 mmFlat Washer 8 mm
-
35250100111 Panel Nut M8Panel Nut M8
