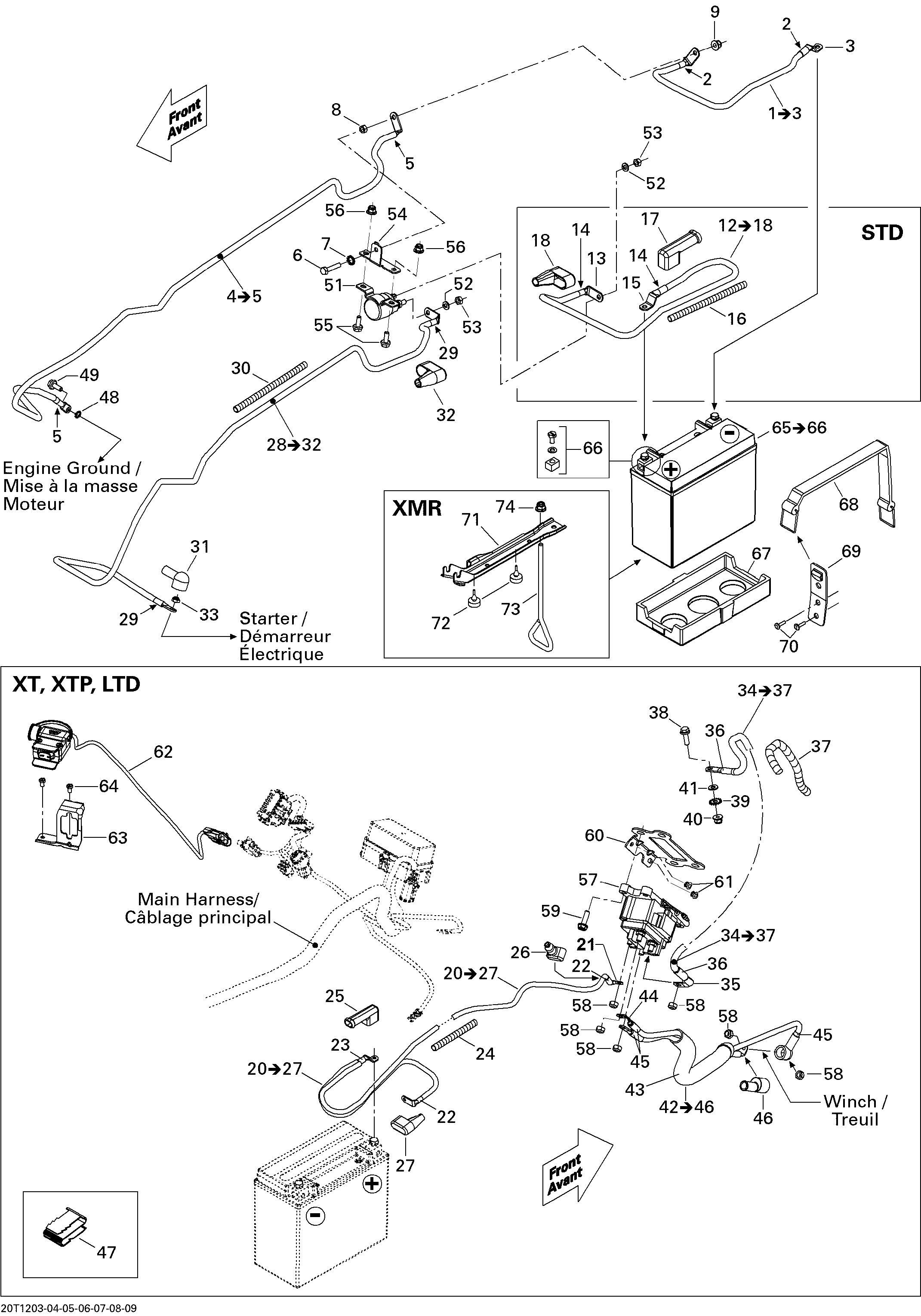

10- Electrical System для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012

  • №
    Артикул
    Название
  • 1
    710000830 Ground Cable Ass'y, Battery/Frame. Includes 1 to 3
    Ground Cable Ass'y, Battery/Frame. Includes 1 to 3
  • 2
    710000483 Shrink Tubing
    Shrink Tubing
  • 3
    710000518 Open Barrel
    Open Barrel
  • 4
    710000844 Ground Cable. MAX, XMR, Includes 4 to 5
    Ground Cable. MAX, XMR, Includes 4 to 5
  • 5
    710000483 Shrink Tubing
    Shrink Tubing
  • 6
    207162544 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 7
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 8
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 9
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 12
    710001822 Positive Cable Ass'y. STD, Includes 12 to 18
    Positive Cable Ass'y. STD, Includes 12 to 18
  • 14
    710000483 Shrink Tubing
    Shrink Tubing
  • 16
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 17
    710001829 Protector Cap
    Protector Cap
  • 18
    710001817 Protector Cap
    Protector Cap
  • 20
    710001824 Positive Cable Ass'y. MAX XT, XTP, XMR, , LTD, Includes 20 to 27
    Positive Cable Ass'y. MAX XT, XTP, XMR, , LTD, Includes 20 to 27
  • 21
    710000476 Open Barrel, 6.6 mm
    Open Barrel, 6.6 mm
  • 22
    710000483 Shrink Tubing
    Shrink Tubing
  • 23
    275500578 Shrink Tubing
    Shrink Tubing
  • 24
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 25
    710001829 Protector Cap
    Protector Cap
  • 26
    710001828 Protector Cap
    Protector Cap
  • 27
    710001817 Protector Cap
    Protector Cap
  • 28
    710001818 Positive Cable. Includes 28 to 32
    Positive Cable. Includes 28 to 32
  • 29
    710000483 Shrink Tubing
    Shrink Tubing
  • 30
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 31
    710000526 Protector Cap
    Protector Cap
  • 32
    710001817 Protector Cap
    Protector Cap
  • 33
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 34
    710000455 Negative Cable Ass'y. XT, XTP, XMR, LTD, Includes 34 to 37
    Negative Cable Ass'y. XT, XTP, XMR, LTD, Includes 34 to 37
  • 35
    710000476 Open Barrel, 6.6 mm
    Open Barrel, 6.6 mm
  • 36
    710000483 Shrink Tubing
    Shrink Tubing
  • 37
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 38
    207662044 Hex. Flanged Screw M6 X 20. XT, XTP, XMR, LTD,
    Hex. Flanged Screw M6 X 20. XT, XTP, XMR, LTD,
  • 39
    250200041 Lock Washer Serrated M6. XT, XTP, XMR, LTD,
    Lock Washer Serrated M6. XT, XTP, XMR, LTD,
  • 40
    233261414 Hex. Flanged Elastic Nut M6. XT, XTP, XMR, LTD,
    Hex. Flanged Elastic Nut M6. XT, XTP, XMR, LTD,
  • 41
    224061121 Flat Washer. XT, XTP, XMR, LTD,
    Flat Washer. XT, XTP, XMR, LTD,
  • 42
    710001615 Winch Cable Ass'y. XT, XTP, XMR, LTD, Includes 42 to 46
    Winch Cable Ass'y. XT, XTP, XMR, LTD, Includes 42 to 46
  • 43
    409901600 Tubing 19 mm
    Tubing 19 mm
  • 44
    710000476 Open Barrel, 6.6 mm
    Open Barrel, 6.6 mm
  • 45
    710000483 Shrink Tubing
    Shrink Tubing
  • 46
    515175919 Protector Cap
    Protector Cap
  • 47
    710000992 Clip. XT, XTP, XMR, LTD,
    Clip. XT, XTP, XMR, LTD,
  • 48
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 49
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 51
    710001364 Starter Relay
    Starter Relay
  • 52
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 53
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 54
    710001260 Solenoid Support
    Solenoid Support
  • 55
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 56
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 57
    710001000 Winch Solenoid. XT, XTP, XMR, LTD,
    Winch Solenoid. XT, XTP, XMR, LTD,
  • 58
    232561434 Elastic Stop Nut M6. XT, XTP, XMR, LTD,
    Elastic Stop Nut M6. XT, XTP, XMR, LTD,
  • 59
    210262080 Hex. Forming Screw M6 X 20. XT, XTP, XMR, LTD,
    Hex. Forming Screw M6 X 20. XT, XTP, XMR, LTD,
  • 60
    710001596 Bracket Winch Relay. XT, XTP, XMR, LTD,
    Bracket Winch Relay. XT, XTP, XMR, LTD,
  • 61
    390406500 Pop Rivet 3/16''. XT, XTP, XMR, LTD,
    Pop Rivet 3/16''. XT, XTP, XMR, LTD,
  • 62
    710002724 Winch Interrupter. XT, XTP, XMR, LTD,
    Winch Interrupter. XT, XTP, XMR, LTD,
  • 63
    710002631 Winch Interrupter Support. XT, XTP, XMR, LTD,
    Winch Interrupter Support. XT, XTP, XMR, LTD,
  • 64
    250000153 Hex. Cap Screw 6-32 X 1/4''. XT, XTP, XMR, LTD,
    Hex. Cap Screw 6-32 X 1/4''. XT, XTP, XMR, LTD,
  • 65
    410301203 Battery Ass'y, 18 Amperes. Includes 65 to 66
    Battery Ass'y, 18 Amperes. Includes 65 to 66
  • 66
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 67
    710000279 Insulator Pad
    Insulator Pad
  • 68
    293850097 Retainer Strap
    Retainer Strap
  • 69
    293850030 Strap Clip
    Strap Clip
  • 70
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
