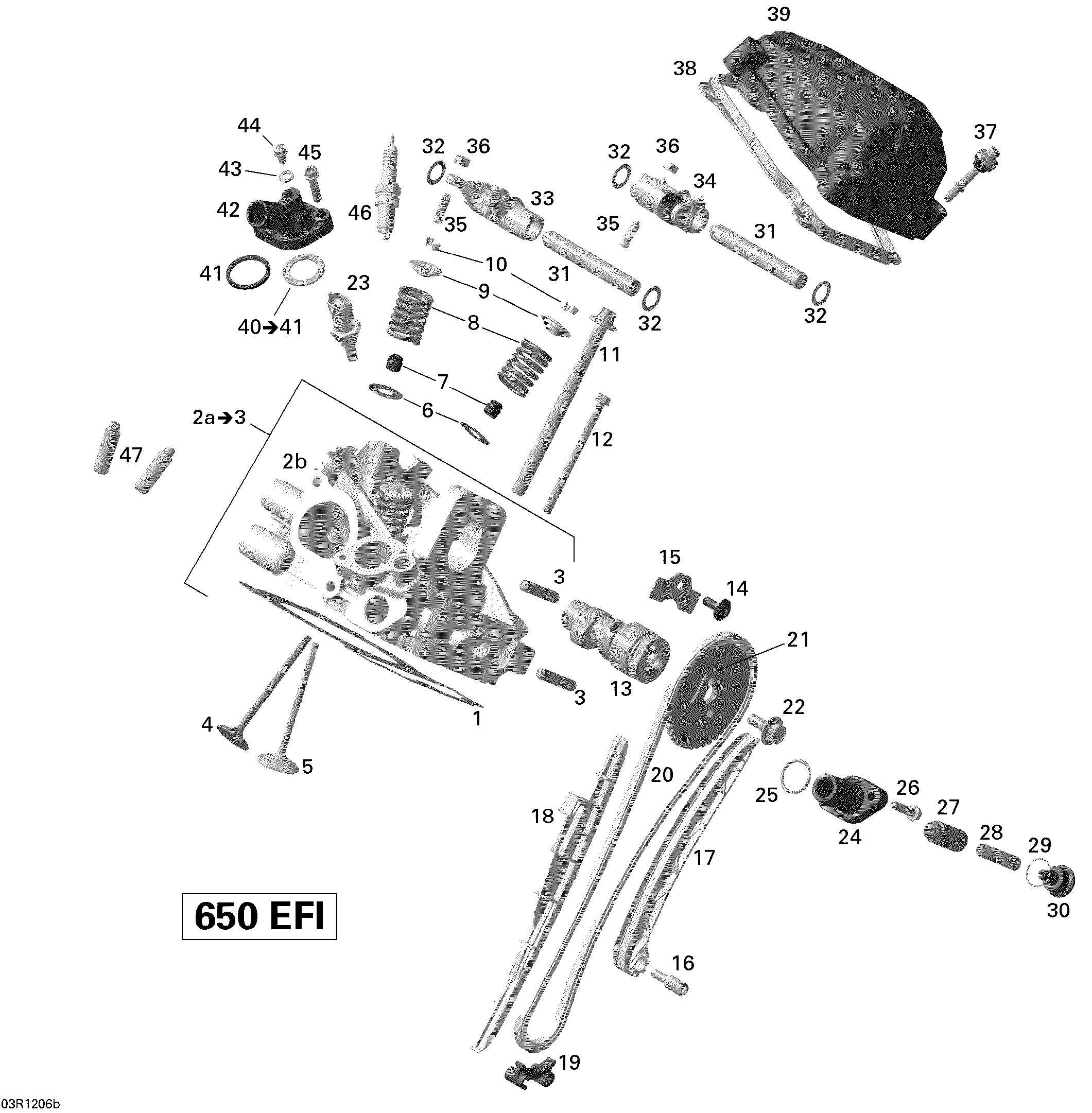

01- Cylinder Head, Rear _2VCA Model для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1420630850 Cylinder Head GasketCylinder Head Gasket
-
2a420613531 Cylinder Head Ass'y. Includes 2a to 3Cylinder Head Ass'y. Includes 2a to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254351 Intake Valve, 31 mmIntake Valve, 31 mm
-
5420254361 Exhaust Valve, 27 mmExhaust Valve, 27 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem SealValve Stem Seal
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
13420637230 CamshaftCamshaft
-
14420241525 Torx Screw M6 X 16Torx Screw M6 X 16
-
15420627743 Holding StripHolding Strip
-
16420240942 Bearing Screw M6Bearing Screw M6
-
17420436015 Chain Tension GuideChain Tension Guide
-
18420236581 Chain GuideChain Guide
-
19420236350 Chain GuideChain Guide
-
20420297062 Silent ChainSilent Chain
-
21420254435 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
22420840031 Screw M6 X 12Screw M6 X 12
-
23278001016 Temperature SensorTemperature Sensor
-
24420236510 Chain Tensioner HousingChain Tensioner Housing
-
25420430370 O-RingO-Ring
-
26420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
27420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
28420238120 SpringSpring
-
29420250890 O-RingO-Ring
-
30420641150 Plug ScrewPlug Screw
-
31420229712 Pin #12, Small, M6 X 90Pin #12, Small, M6 X 90
-
32420944382 ShimShim
-
33420254905 Rocker Arm InletRocker Arm Inlet
-
34420254915 Rocker Arm ExhaustRocker Arm Exhaust
-
35420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
36420242910 Hex. Nut M6Hex. Nut M6
-
37420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
38420630260 GasketGasket
-
39420610395 Valve CoverValve Cover
-
40420927837 Spacer Ass'y. Includes 40 to 41Spacer Ass'y. Includes 40 to 41
-
41420650300 Thermostat GasketThermostat Gasket
-
42420222690 Thermostat CoverThermostat Cover
-
43420650255 Gasket RingGasket Ring
-
44420441621 Screw M5 X 16Screw M5 X 16
-
45420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
46707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
47420254374 Valve GuideValve Guide
