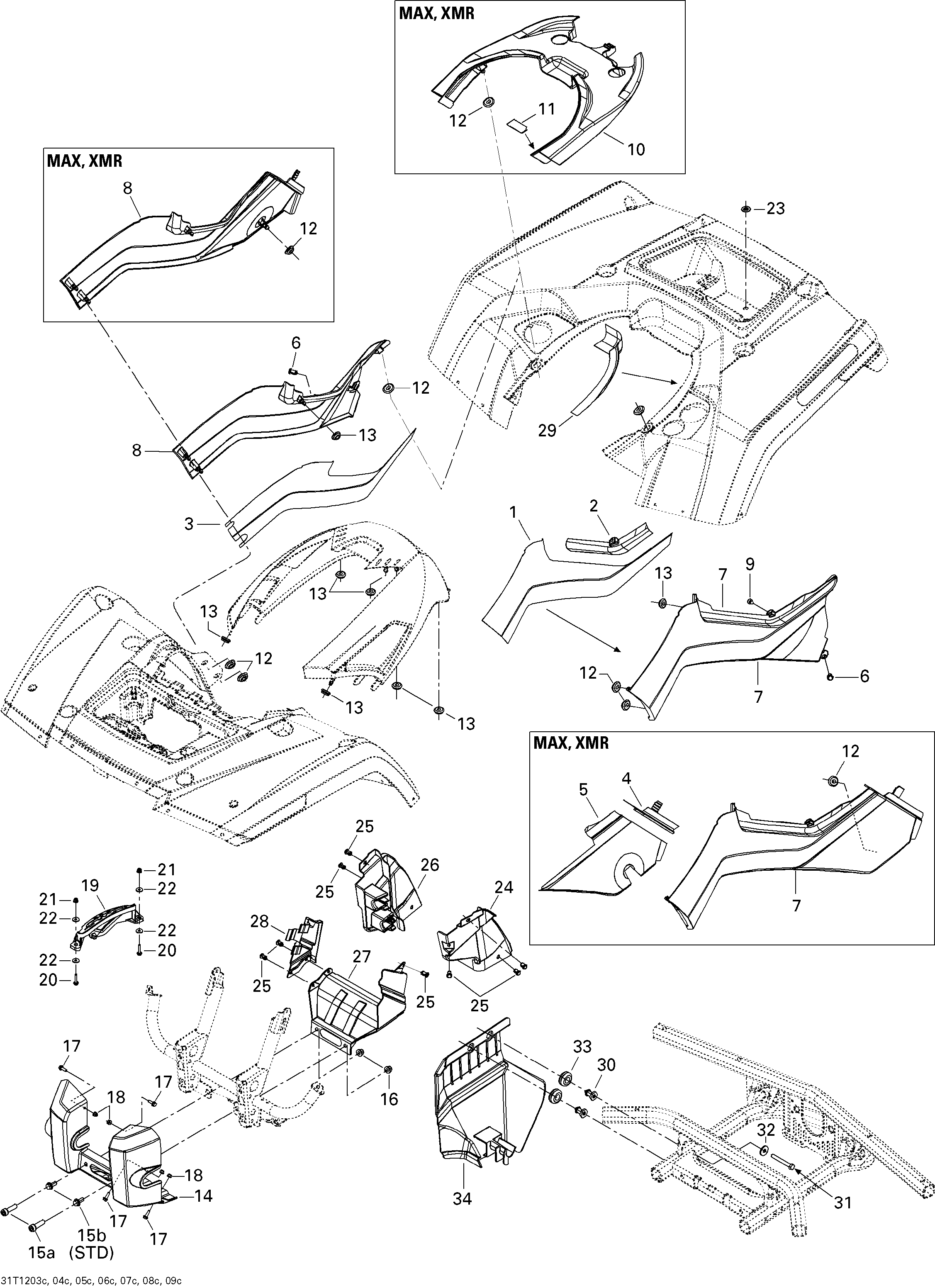

09- Body And Accessories 3 для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012

  • №
    Артикул
    Название
  • 1
    705005620 Reflective Sheet
    Reflective Sheet
  • 2
    705005617 Reflective Sheet
    Reflective Sheet
  • 3
    705005623 Reflective Sheet
    Reflective Sheet
  • 4
    705002183 LH Reflective Sheet. MAX
    LH Reflective Sheet. MAX
  • 5
    705005621 Reflective Sheet. MAX
    Reflective Sheet. MAX
  • 7
    705002940 LH Lateral Panel, Yellow. MAX Yellow
    LH Lateral Panel, Yellow. MAX Yellow
  • 7
    705002940 LH Lateral Panel, Yellow. MAX XTP
    LH Lateral Panel, Yellow. MAX XTP
  • 7
    705002942 LH Lateral Panel, Red. MAX Viper Red
    LH Lateral Panel, Red. MAX Viper Red
  • 7
    705003493 LH Lateral Panel, Black. MAX Deep Black STD, XT
    LH Lateral Panel, Black. MAX Deep Black STD, XT
  • 7
    705005044 LH Lateral Panel, Magnesium Painted. MAX Pure Magnesiun
    LH Lateral Panel, Magnesium Painted. MAX Pure Magnesiun
  • 7
    705005059 LH Lateral Panel, CAMO. MAX Camo
    LH Lateral Panel, CAMO. MAX Camo
  • 8
    705002943 RH Lateral Panel, Yellow. MAX Yellow
    RH Lateral Panel, Yellow. MAX Yellow
  • 8
    705002943 RH Lateral Panel, Yellow. MAX XTP
    RH Lateral Panel, Yellow. MAX XTP
  • 8
    705002945 RH Lateral Panel, Red. MAX Viper Red
    RH Lateral Panel, Red. MAX Viper Red
  • 8
    705003494 RH Lateral Panel, Black. MAX Deep Black STD, XT
    RH Lateral Panel, Black. MAX Deep Black STD, XT
  • 8
    705005046 RH Lateral Panel, Magnesium Painted. MAX Pure Magnesiun
    RH Lateral Panel, Magnesium Painted. MAX Pure Magnesiun
  • 8
    705005060 RH Lateral Panel, CAMO. MAX Camo
    RH Lateral Panel, CAMO. MAX Camo
  • 9
    293830005 Rubber Plug
    Rubber Plug
  • 10
    705002952 Storage Tray, Yellow. XT (2VCA Model)
    Storage Tray, Yellow. XT (2VCA Model)
  • 10
    705002952 Storage Tray, Yellow. MAX Yellow XT
    Storage Tray, Yellow. MAX Yellow XT
  • 10
    705002954 Storage Tray, Red. MAX Viper Red
    Storage Tray, Red. MAX Viper Red
  • 10
    705003133 Storage Tray, Black. MAX Yellow XTP
    Storage Tray, Black. MAX Yellow XTP
  • 10
    705003481 Storage Tray, Black. MAX Deep Black
    Storage Tray, Black. MAX Deep Black
  • 10
    705005049 Storage Tray, Magnesium Painted. MAX Pure Magnesiun
    Storage Tray, Magnesium Painted. MAX Pure Magnesiun
  • 10
    705005063 Storage Tray, CAMO. MAX Camo
    Storage Tray, CAMO. MAX Camo
  • 11
    705002185 Reflective Sheet. MAX
    Reflective Sheet. MAX
  • 12
    705000321 Oval Washer. MAX
    Oval Washer. MAX
  • 13
    705003264 Grommet
    Grommet
  • 14
    705003495 Guard Plate. STD
    Guard Plate. STD
  • 14
    705003496 Guard Plate. XT, XTP
    Guard Plate. XT, XTP
  • 15a
    205003544 Socket Screw M10 X 35. XT, XTP
    Socket Screw M10 X 35. XT, XTP
  • 15b
    207602544 Hex. Flanged Screw M10 X 25. STD
    Hex. Flanged Screw M10 X 25. STD
  • 16
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 17
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 18
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 19
    705003838 Lever Indicator
    Lever Indicator
  • 20
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 21
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 22
    250200072 Flat Washer
    Flat Washer
  • 23
    414859400 Cap
    Cap
  • 24
    705003634 LH Inner Fender
    LH Inner Fender
  • 25
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 26
    705002124 RH Inner Fender
    RH Inner Fender
  • 27
    705002988 LH Deflector
    LH Deflector
  • 28
    705002135 RH Deflector
    RH Deflector
  • 29
    705002085 Reflective Sheet
    Reflective Sheet
  • 30
    517303439 Knob
    Knob
  • 31
    241154540 Hex. Screw K50 X 45
    Hex. Screw K50 X 45
  • 32
    391301600 Washer
    Washer
  • 33
    293720053 Grommet
    Grommet
  • 34
    705004036 Thread Cover
    Thread Cover
