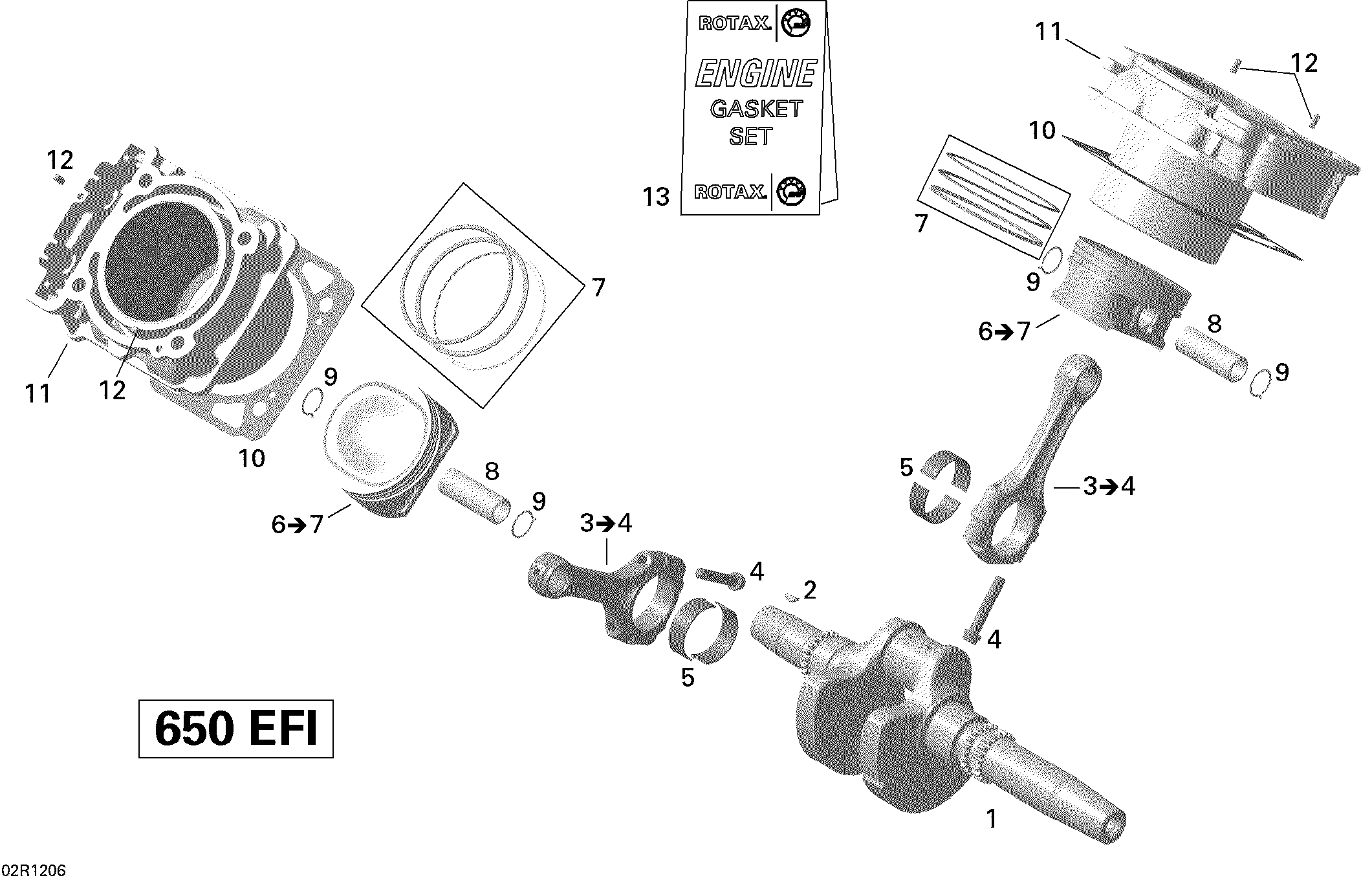

01- Crankshaft, Piston And Cylinder для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1420219745 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217425 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420684110 Piston Ass'y, 81.958 mm . Includes 6 to 7Piston Ass'y, 81.958 mm . Includes 6 to 7
-
6420684111 Piston Ass'y, Oversize, 82.208 mm. Includes 6 to 7Piston Ass'y, Oversize, 82.208 mm. Includes 6 to 7
-
7420684384 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845109 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613887 Cylinder With SleeveCylinder With Sleeve
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
13420684144 Gasket Set, EngineGasket Set, Engine
