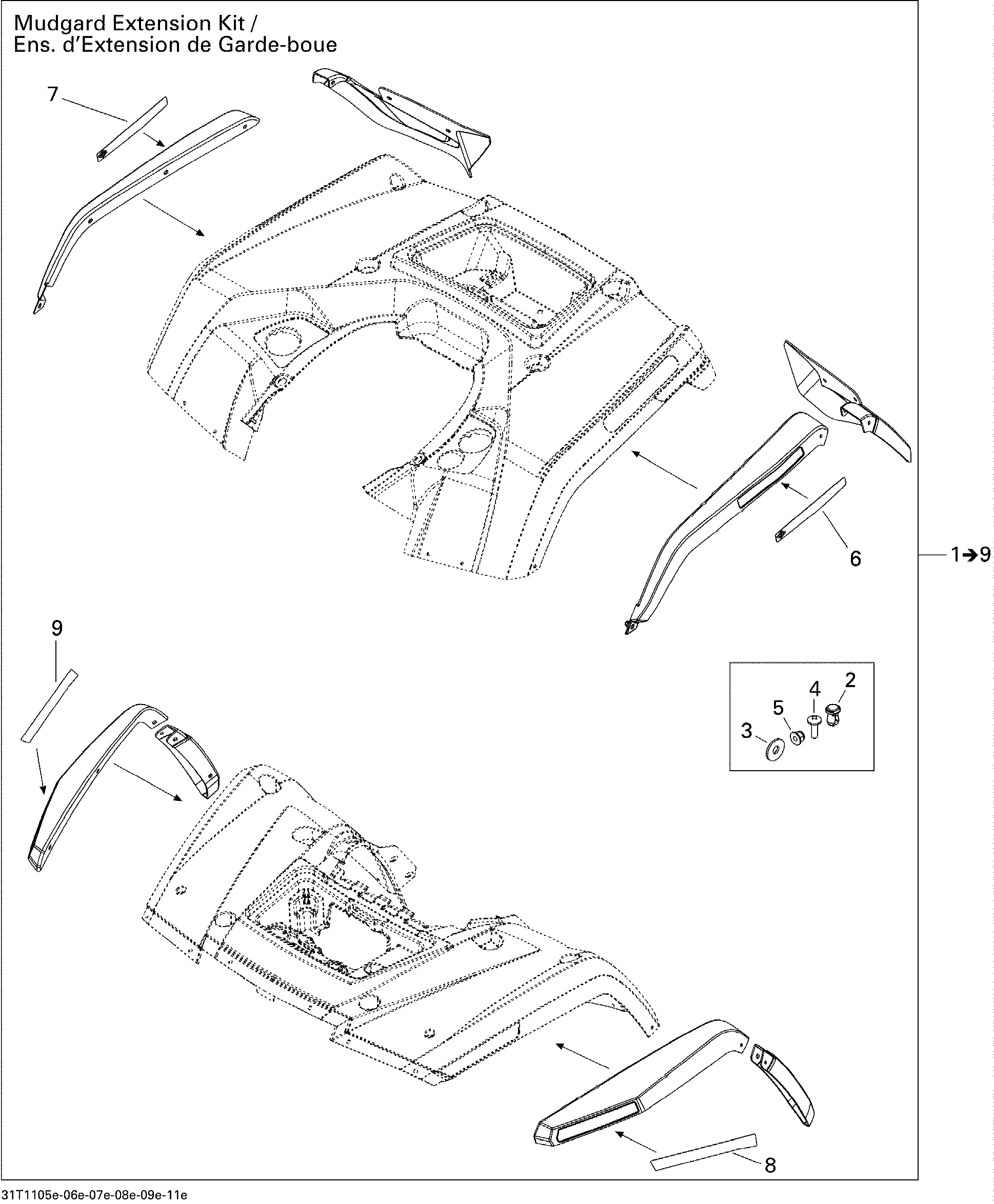

09- Body And Accessories 5, Mudguard для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
1715000533 Mudguard Extension Kit. Includes 1 to 9, XTP, LTD, XmrMudguard Extension Kit. Includes 1 to 9, XTP, LTD, Xmr
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3234082430 Flat Washer M8Flat Washer M8
-
4211000123 Phillips Screw M6 X 20Phillips Screw M6 X 20
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6704901429 LH Rear Lateral ReflectorLH Rear Lateral Reflector
-
7704901430 RH Rear Lateral ReflectorRH Rear Lateral Reflector
-
8704901431 LH Front Lateral ReflectorLH Front Lateral Reflector
-
9704901432 RH Front Lateral ReflectorRH Front Lateral Reflector
