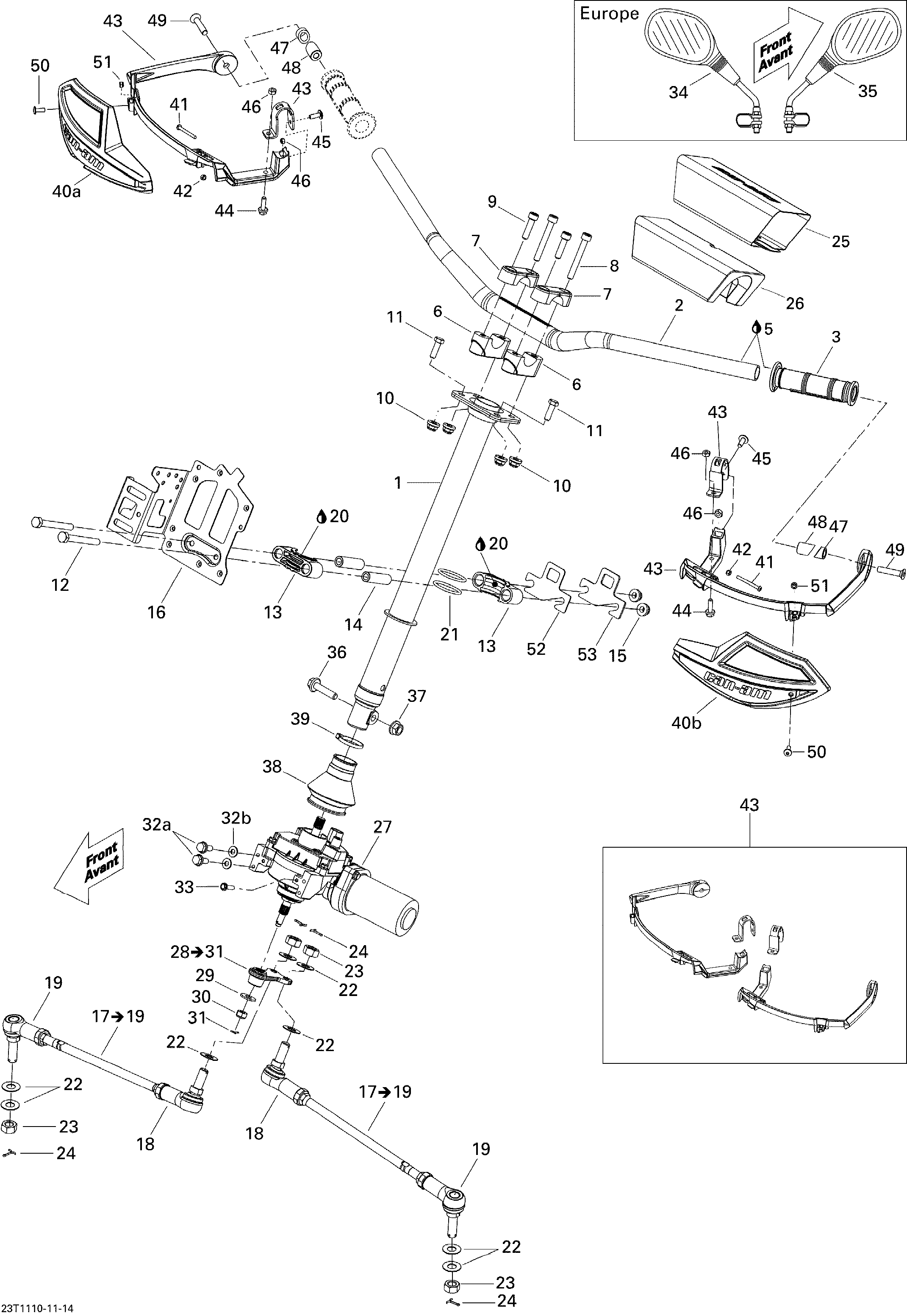

07- Steering для BRP Outlander 800R EFI, XMR - 2011

  • №
    Артикул
    Название
  • 1
    709400566 Main Tube
    Main Tube
  • 2
    709400513 Aluminum- Handle Bar
    Aluminum- Handle Bar
  • 3
    709400493 Handle Grip
    Handle Grip
  • 5
    293800100 Loctite 406, 7 Oz
    Loctite 406, 7 Oz
  • 6
    709400497 Steering Support
    Steering Support
  • 7
    709400496 Support
    Support
  • 8
    205086060 Socket Head Screw M8 X 60
    Socket Head Screw M8 X 60
  • 9
    205083060 Socket Screw M8 X 30
    Socket Screw M8 X 30
  • 10
    233281416 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 11
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 12
    207087044 Hex. Screw M8 X 70
    Hex. Screw M8 X 70
  • 13
    709400471 Half Bushing
    Half Bushing
  • 14
    709400072 Bushing
    Bushing
  • 15
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 16
    709400751 Module Support
    Module Support
  • 17
    709400485 Tie Rod Ass'y. Includes 17 to 19
    Tie Rod Ass'y. Includes 17 to 19
  • 18
    709400486 Ball Joint, LH Threads
    Ball Joint, LH Threads
  • 19
    709400487 Ball Joint, RH Threads
    Ball Joint, RH Threads
  • 20
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 21
    293300068 O-Ring
    O-Ring
  • 22
    706200281 Hardened Washer
    Hardened Washer
  • 23
    250100099 Nut M12
    Nut M12
  • 24
    211400013 Cotter Pin
    Cotter Pin
  • 25
    709400519 Cover
    Cover
  • 26
    709400422 Foam
    Foam
  • 27
    709401001 Power Steering Assist
    Power Steering Assist
  • 28
    703500784 Lower Main Tube Kit. Includes 28 to 31
    Lower Main Tube Kit. Includes 28 to 31
  • 29
    250200086 Flat Washer
    Flat Washer
  • 30
    250000047 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 31
    211400013 Cotter Pin
    Cotter Pin
  • 32a
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 32b
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 33
    210252040 Hex. Forming Screw
    Hex. Forming Screw
  • 34
    709400406 LH Mirror. Europe
    LH Mirror. Europe
  • 35
    709400523 RH Mirror. Europe
    RH Mirror. Europe
  • 36
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 37
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 38
    709400674 Bellows
    Bellows
  • 39
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 40a
    709400530 RH Air Deflector
    RH Air Deflector
  • 40b
    709400531 LH Air Deflector
    LH Air Deflector
  • 41
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 42
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 43
    715000545 Deflector Support Kit
    Deflector Support Kit
  • 44
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 45
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 46
    232561600 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 47
    709400161 Bracket
    Bracket
  • 48
    709400162 Bracket
    Bracket
  • 49
    205384034 Socket Head Screw
    Socket Head Screw
  • 50
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 51
    232551600 Hex. Elastic Nut M5
    Hex. Elastic Nut M5
  • 52
    709400734 Shim 2 mm
    Shim 2 mm
  • 53
    709400735 Shim 1 mm
    Shim 1 mm
