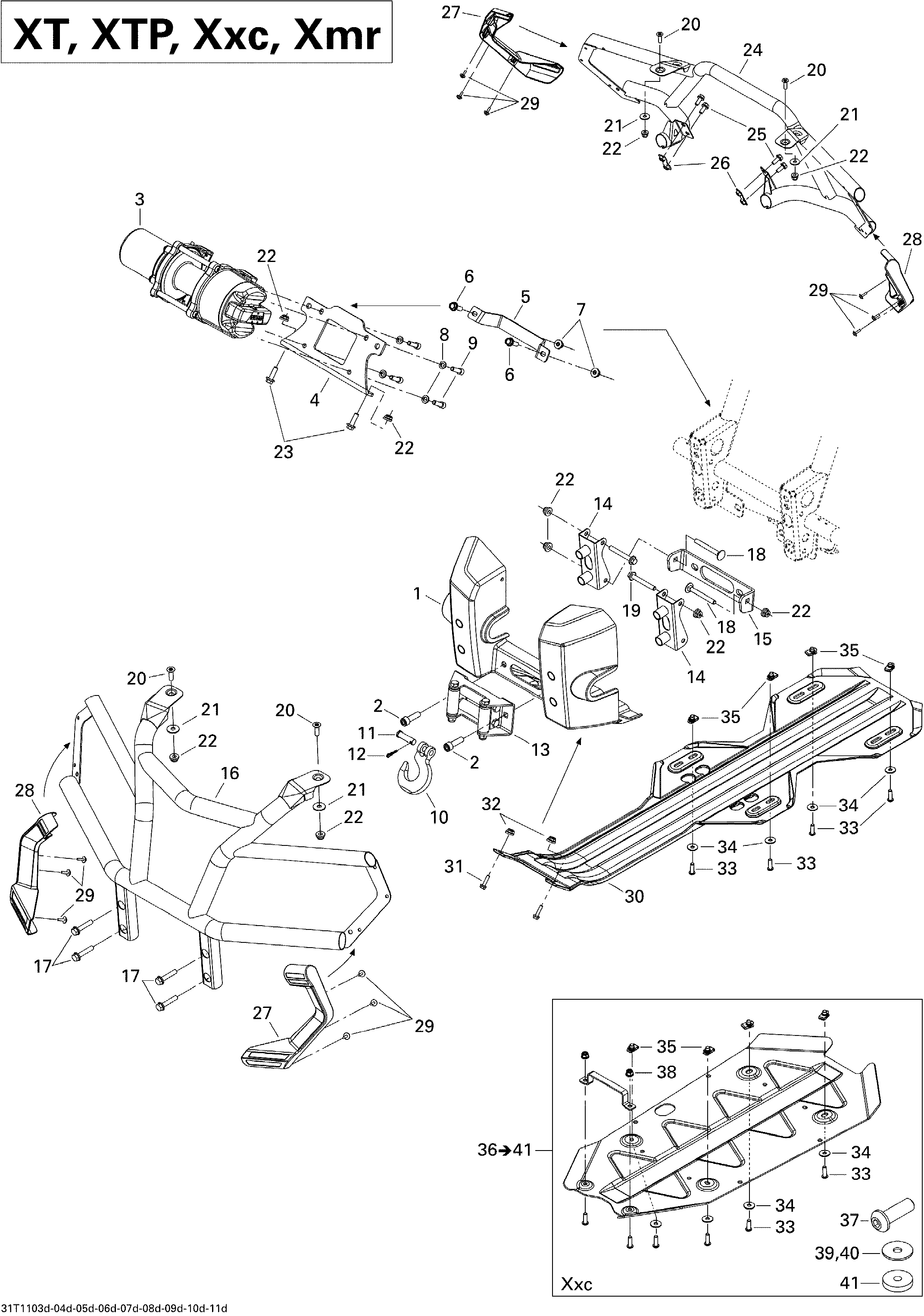

09- Body And Accessories 4 для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
1705003496 Guard PlateGuard Plate
-
2205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
3705003296 WinchWinch
-
4705004278 Mounting Plate, BlackMounting Plate, Black
-
5705001460 Winch Bracket, BlackWinch Bracket, Black
-
6207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234181401 Lock Washer 8 mmLock Washer 8 mm
-
9205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
10705002329 HookHook
-
11250400021 Clevis PinClevis Pin
-
12250400022 Cotter PinCotter Pin
-
13715000011 Winch RollerWinch Roller
-
14705003828 Bumper BracketBumper Bracket
-
15705003649 Winch BracketWinch Bracket
-
16705002812 Front BumberFront Bumber
-
17207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
18207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
19207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
20235482584 Torx Screw M8 X 25Torx Screw M8 X 25
-
21234082410 Flat Washer 8 mmFlat Washer 8 mm
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
24705002806 Rear BumberRear Bumber
-
25207582084 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
26705003796 Link PlateLink Plate
-
27705002802 LH Front CapLH Front Cap
-
28705002803 RH Front CapRH Front Cap
-
29250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
30715000688 Skid PlateSkid Plate
-
31207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
34234082410 Flat Washer 8 mmFlat Washer 8 mm
-
35250100111 Panel Nut M8Panel Nut M8
