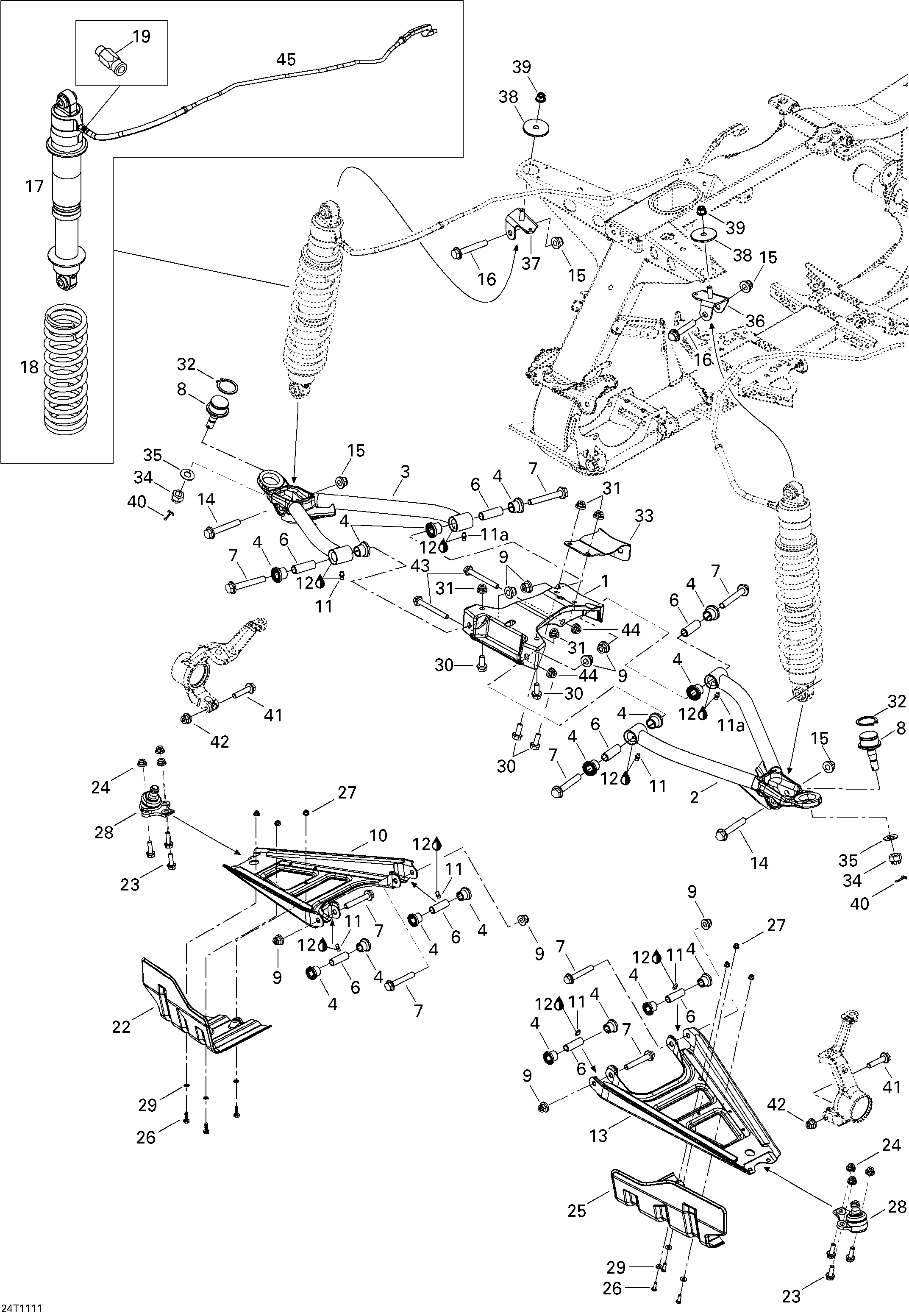

07- Front Suspension для BRP Outlander 800R EFI, XMR - 2011

  • №
    Артикул
    Название
  • 1
    706200476 Upper Arm Bracket
    Upper Arm Bracket
  • 2
    706201220 L.H. Arm
    L.H. Arm
  • 3
    706201223 R.H. Arm
    R.H. Arm
  • 4
    706200181 Cushion
    Cushion
  • 6
    706200678 Inner Bushing
    Inner Bushing
  • 7
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 8
    706200653 Ball Joint
    Ball Joint
  • 9
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 10
    706201050 Suspension Arm, Black
    Suspension Arm, Black
  • 11a
    408200600 Grease Fitting
    Grease Fitting
  • 11
    408200700 Grease Fitting
    Grease Fitting
  • 12
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 13
    706201050 Suspension Arm, Black
    Suspension Arm, Black
  • 14
    207606546 Hex. Flanged Screw M10 X 65
    Hex. Flanged Screw M10 X 65
  • 15
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 16
    207605544 Hex. Flanged Screw M10 X 55
    Hex. Flanged Screw M10 X 55
  • 17
    706201232 Front Shock Ass'y
    Front Shock Ass'y
  • 18
    706201231 Painted Front Spring
    Painted Front Spring
  • 19
    706201356 Connector
    Connector
  • 22
    706200214 RH Protector
    RH Protector
  • 23
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 24
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 25
    706200213 LH Protector
    LH Protector
  • 26
    207151644 Hex. Screw M5 X 16
    Hex. Screw M5 X 16
  • 27
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 28
    706200444 Joint Attachment
    Joint Attachment
  • 29
    391301700 Washer
    Washer
  • 30
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 31
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 32
    293370009 Circlip 32 mm
    Circlip 32 mm
  • 33
    706201014 Bracket
    Bracket
  • 34
    250100099 Nut M12
    Nut M12
  • 35
    706200281 Hardened Washer
    Hardened Washer
  • 36
    706201035 L.H. Bracket
    L.H. Bracket
  • 37
    706201036 R.H. Bracket
    R.H. Bracket
  • 38
    706200724 Spacer
    Spacer
  • 39
    233281416 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 40
    211400017 Cotter Pin
    Cotter Pin
  • 41
    207604544 Hex. Flanged Screw M10 X 45
    Hex. Flanged Screw M10 X 45
  • 42
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 43
    207687044 Hex. Flanged Screw M8 X 70
    Hex. Flanged Screw M8 X 70
  • 44
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 45
    706201351 Hose Ass'y
    Hose Ass'y
