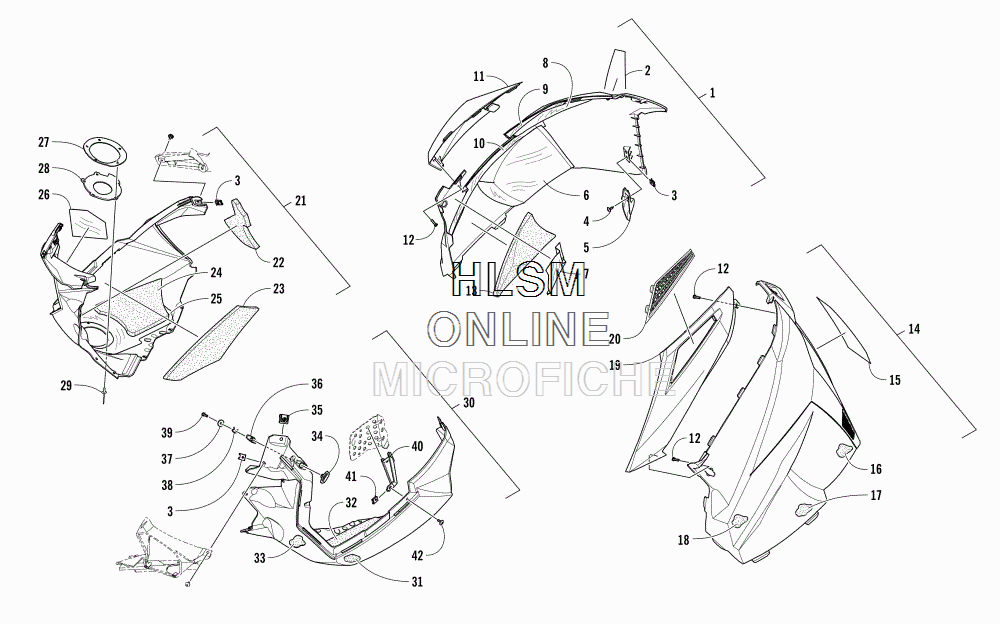

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-782 PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 1
    5718-030 PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 2-13)
    PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 2-13)
  • 2
    3621-487 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 3
    1623-939 ...NUT, U
    ...NUT, U
  • 4
    2623-166 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    7606-292 ...HOOK, MOUNTING - RIGHT
    ...HOOK, MOUNTING - RIGHT
  • 5
    7606-293 ...HOOK, MOUNTING - LEFT
    ...HOOK, MOUNTING - LEFT
  • 6
    7606-076 ...FOIL, PROTECTIVE - LOWER - REAR - RIGHT
    ...FOIL, PROTECTIVE - LOWER - REAR - RIGHT
  • 7
    3612-322 ...FOIL, PROTECTIVE - UPPER FRONT - RIGHT
    ...FOIL, PROTECTIVE - UPPER FRONT - RIGHT
  • 8
    3612-324 ...FOIL, PROTECTIVE - UPPER - RIGHT
    ...FOIL, PROTECTIVE - UPPER - RIGHT
  • 9
    7606-432 ...FOIL, PROTECTIVE - RIGHT
    ...FOIL, PROTECTIVE - RIGHT
  • 10
    7606-116 ...FOIL, PROTECTIVE - MIDDLE - RIGHT
    ...FOIL, PROTECTIVE - MIDDLE - RIGHT
  • 11
    7606-091 ...VENT, SIDE PANEL
    ...VENT, SIDE PANEL
  • 12
    2623-211 ...SCREW
    ...SCREW
  • 13
    0617-754 ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 14
    5718-783 PANEL, SIDE W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
    PANEL, SIDE W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 14
    5718-031 PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 3-5 AND 15-18)
    PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 3-5 AND 15-18)
  • 15
    3621-486 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 16
    0617-757 ...FOAM, SIDE PANEL - LOWER REAR - LEFT
    ...FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 17
    0617-755 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ...FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 18
    0617-759 ...FOAM, SIDE PANEL - MIDDLE - LEFT
    ...FOAM, SIDE PANEL - MIDDLE - LEFT
  • 19
    7606-152 PANEL, UPPER SIDE - RIGHT - BLACK
    PANEL, UPPER SIDE - RIGHT - BLACK
  • 19
    7606-153 PANEL, UPPER SIDE - LEFT - BLACK
    PANEL, UPPER SIDE - LEFT - BLACK
  • 20
    7606-272 VENT, UPPER - SIDE PANEL - RIGHT
    VENT, UPPER - SIDE PANEL - RIGHT
  • 20
    7606-273 VENT, UPPER - SIDE PANEL - LEFT
    VENT, UPPER - SIDE PANEL - LEFT
  • 21
    5718-374 PLATE, SKID W/FOAM - RIGHT - BLACK (INC. 3, 22-26, AND 34-39)
    PLATE, SKID W/FOAM - RIGHT - BLACK (INC. 3, 22-26, AND 34-39)
  • 22
    0617-760 ...FOAM, SKID PLATE - FRONT - RIGHT
    ...FOAM, SKID PLATE - FRONT - RIGHT
  • 23
    0617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT
    ...FOAM, SKID PLATE - MIDDLE - RIGHT
  • 24
    0617-764 ...FOAM, SKID PLATE - LOWER - RIGHT
    ...FOAM, SKID PLATE - LOWER - RIGHT
  • 25
    3612-326 ...FOIL, SKID PLATE - RIGHT
    ...FOIL, SKID PLATE - RIGHT
  • 26
    3612-330 ...FOIL
    ...FOIL
  • 27
    3612-193 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 28
    3612-191 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 29
    8061-708 RIVET
    RIVET
  • 30
    5718-349 PLATE, SKID W/FOAM - LEFT - BLACK (INC. 3 AND 31-39)
    PLATE, SKID W/FOAM - LEFT - BLACK (INC. 3 AND 31-39)
  • 31
    0617-765 ...FOAM, SKID PLATE - LOWER - LEFT
    ...FOAM, SKID PLATE - LOWER - LEFT
  • 32
    0617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT
    ...FOAM, SKID PLATE - MIDDLE - LEFT
  • 33
    0617-761 ...FOAM, SKID PLATE - FRONT - LEFT
    ...FOAM, SKID PLATE - FRONT - LEFT
  • 34
    7606-265 ...KNOB, HOLDDOWN
    ...KNOB, HOLDDOWN
  • 35
    2623-005 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 36
    7606-296 ...PLATE, BACKING
    ...PLATE, BACKING
  • 37
    2623-171 ...WASHER, FLAT
    ...WASHER, FLAT
  • 38
    2623-155 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 39
    1623-933 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 40
    7606-620 BRACE
    BRACE
  • 41
    1623-939 NUT, U
    NUT, U
  • 42
    2623-164 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
