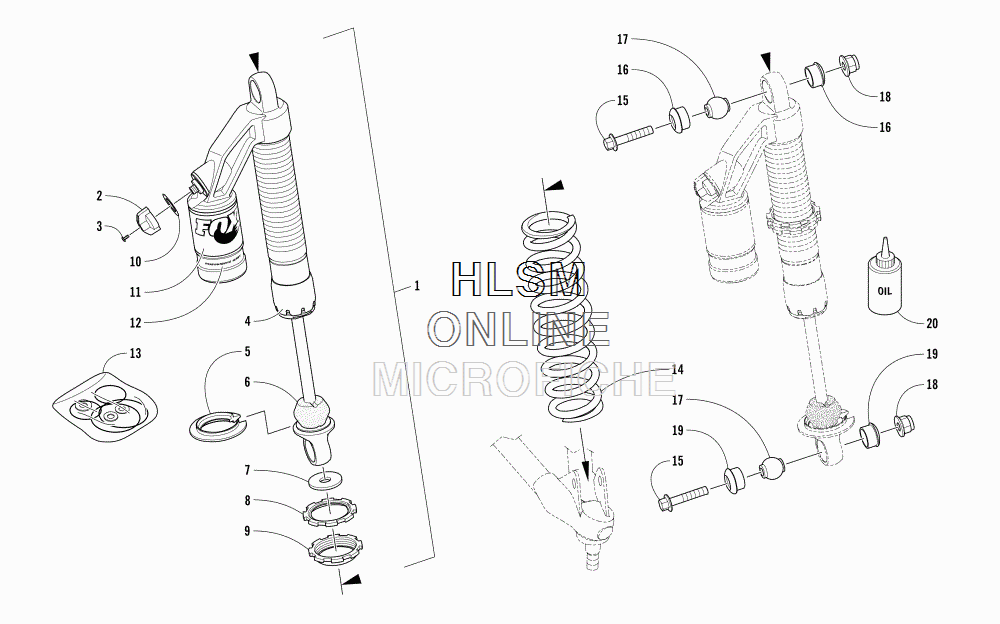

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-746 COMPLETE SHOCK ABSORBER (INC. 2-13)
    COMPLETE SHOCK ABSORBER (INC. 2-13)
  • 2
    3603-623 ...DAMPING, ADJUST KNOB
    ...DAMPING, ADJUST KNOB
  • 3
    3603-377 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 4
    4604-016 ...GUIDE, SPRING
    ...GUIDE, SPRING
  • 5
    4604-186 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 6
    3603-024 ...BUMPER, SHAFT
    ...BUMPER, SHAFT
  • 7
    3603-028 ...WASHER
    ...WASHER
  • 8
    3603-026 ...PRELOAD RING
    ...PRELOAD RING
  • 9
    3603-027 ...PRELOAD RING, BACK-UP
    ...PRELOAD RING, BACK-UP
  • 10
    3603-523 ...DECAL, BASE VALUE
    ...DECAL, BASE VALUE
  • 11
    3603-521 ...DECAL, RESERVOIR
    ...DECAL, RESERVOIR
  • 12
    3603-365 ...DECAL, "PERFORMANCE SERIES"
    ...DECAL, "PERFORMANCE SERIES"
  • 13
    3603-522 ...KIT, SEAL/CAP REBUILD
    ...KIT, SEAL/CAP REBUILD
  • 14
    3703-496 SPRING, COMPRESSION - WHITE
    SPRING, COMPRESSION - WHITE
  • 15
    8413-850 SCREW, CAP
    SCREW, CAP
  • 16
    3603-260 BUSHING
    BUSHING
  • 17
    3603-261 SLEEVE
    SLEEVE
  • 18
    8437-804 NUT, LOCK
    NUT, LOCK
  • 19
    3603-296 BUSHING
    BUSHING
  • 20
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
