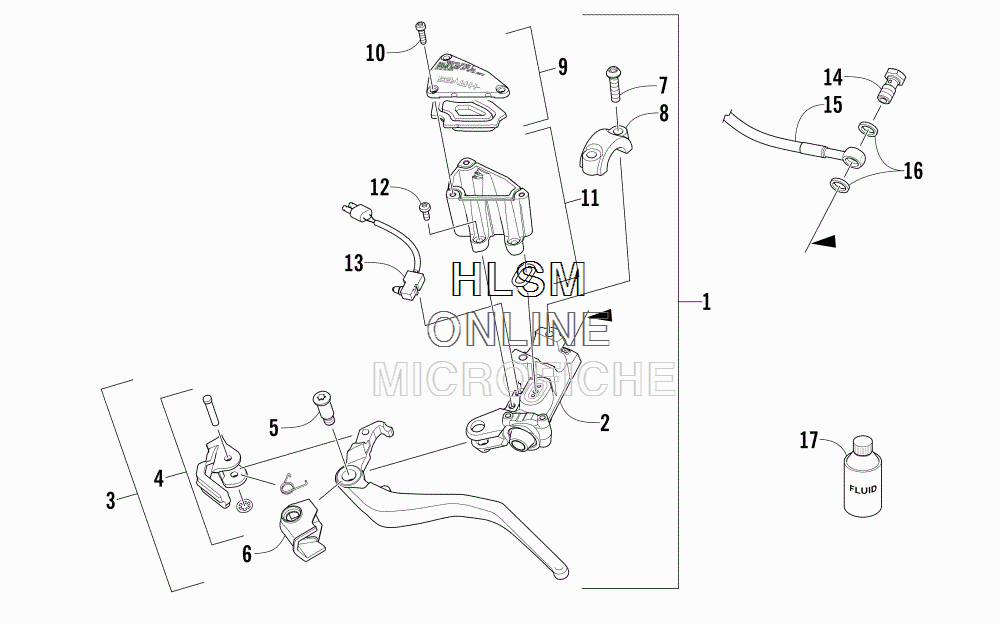

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2602-477 BRAKE ASSEMBLY (INC. 2-13)
    BRAKE ASSEMBLY (INC. 2-13)
  • 2
    2602-479 ...PISTON ASSEMBLY
    ...PISTON ASSEMBLY
  • 3
    2602-427 ...LEVER, BRAKE - ASSEMBLY (INC. 4-6)
    ...LEVER, BRAKE - ASSEMBLY (INC. 4-6)
  • 4
    2602-428 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 5
    2602-624 ......SCREW, SHOULDER
    ......SCREW, SHOULDER
  • 6
    2602-625 ......BOOT
    ......BOOT
  • 7
    1602-936 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    0502-869 ...CLAMP, BRAKE
    ...CLAMP, BRAKE
  • 9
    2602-429 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 10
    2602-430 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 11
    2602-433 ...RESERVOIR (INC. 12)
    ...RESERVOIR (INC. 12)
  • 12
    2602-519 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 13
    2602-432 ...SWITCH, BRAKE
    ...SWITCH, BRAKE
  • 14
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 15
    3602-099 BRAKELINE, HYDRAULIC
    BRAKELINE, HYDRAULIC
  • 16
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 17
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
