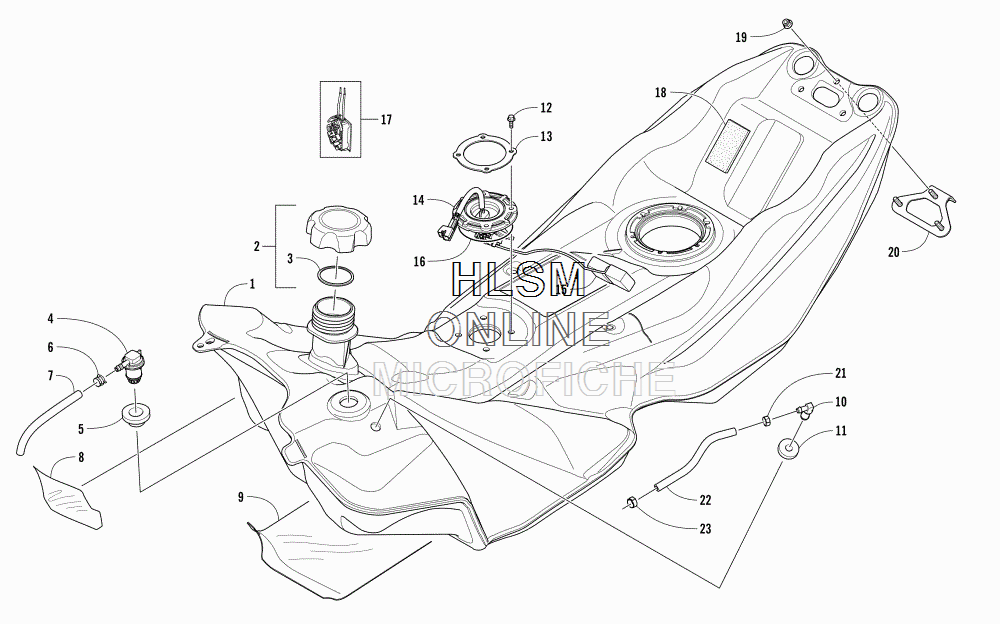

GAS TANK ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 (1.75) GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-090 TANK, GAS - ASSEMBLY (INC. 4-5 AND 10-11)
    TANK, GAS - ASSEMBLY (INC. 4-5 AND 10-11)
  • 2
    2670-048 CAP, GAS TANK - ASSEMBLY (INC. 3)
    CAP, GAS TANK - ASSEMBLY (INC. 3)
  • 3
    0109-733 ...SEAL, TANK CAP
    ...SEAL, TANK CAP
  • 4
    1670-787 VALVE, CHECK
    VALVE, CHECK
  • 5
    1670-822 GROMMET
    GROMMET
  • 6
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    6101-009 HOSE - 50 FT
    HOSE - 50 FT
  • 8
    3612-316 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 9
    3612-315 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 10
    1670-324 FITTING, ELBOW
    FITTING, ELBOW
  • 11
    1670-325 GROMMET
    GROMMET
  • 12
    8408-517 SCREW, CAP
    SCREW, CAP
  • 13
    2670-431 PLATE, RETAINING
    PLATE, RETAINING
  • 14
    2670-386 SENSOR, FUEL LEVEL (INC. 15)
    SENSOR, FUEL LEVEL (INC. 15)
  • 15
    2670-235 ...FLOAT
    ...FLOAT
  • 16
    2623-035 O-RING
    O-RING
  • 17
    1770-170 FUEL LEVEL SENSOR KIT
    FUEL LEVEL SENSOR KIT
  • 18
    0645-760 PAD, BATTERY
    PAD, BATTERY
  • 19
    8427-602 NUT, LOCK
    NUT, LOCK
  • 20
    5706-771 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 21
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    0410-143 HOSE - 25 FT
    HOSE - 25 FT
  • 23
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
