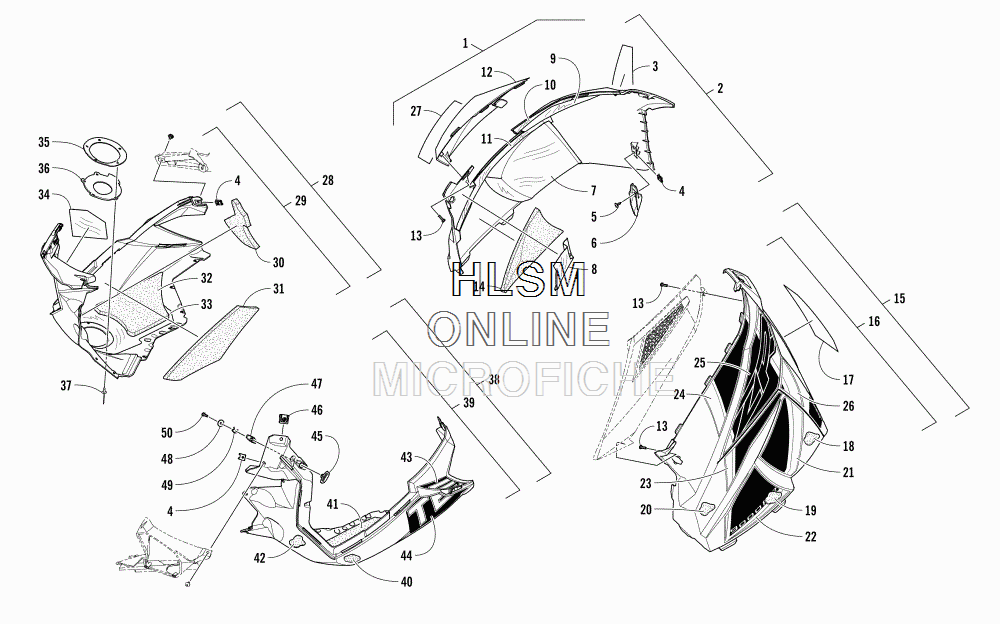

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 9000 RR 137 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-220 PANEL, SIDE W/DECALS - RIGHT - GREEN (INC. 2-14 AND 21-27)
    PANEL, SIDE W/DECALS - RIGHT - GREEN (INC. 2-14 AND 21-27)
  • 2
    5718-224 ...PANEL, SIDE W/O DECALS - RIGHT - GREEN (INC. 3-14)
    ...PANEL, SIDE W/O DECALS - RIGHT - GREEN (INC. 3-14)
  • 3
    3621-487 ......DECAL, WARNING - ENGLISH
    ......DECAL, WARNING - ENGLISH
  • 4
    1623-939 ......NUT, U
    ......NUT, U
  • 5
    2623-166 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 6
    7606-292 ......HOOK, MOUNTING - RIGHT
    ......HOOK, MOUNTING - RIGHT
  • 6
    7606-293 ......HOOK, MOUNTING - LEFT
    ......HOOK, MOUNTING - LEFT
  • 7
    7606-076 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
    ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
  • 8
    7606-498 ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT
    ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT
  • 9
    7606-288 ......FOIL, PROTECTIVE - UPPER - RIGHT
    ......FOIL, PROTECTIVE - UPPER - RIGHT
  • 10
    7606-432 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 11
    7606-116 ......FOIL, PROTECTIVE - MIDDLE - RIGHT
    ......FOIL, PROTECTIVE - MIDDLE - RIGHT
  • 12
    7606-091 ......VENT, SIDE PANEL
    ......VENT, SIDE PANEL
  • 13
    2623-211 ......SCREW
    ......SCREW
  • 14
    0617-754 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 15
    5718-221 PANEL, SIDE W/DECALS - LEFT - GREEN (INC. 4-6 AND 16-26)
    PANEL, SIDE W/DECALS - LEFT - GREEN (INC. 4-6 AND 16-26)
  • 16
    5718-225 ...PANEL, SIDE W/O DECALS - LEFT - GREEN (INC. 4-6 AND 17-20)
    ...PANEL, SIDE W/O DECALS - LEFT - GREEN (INC. 4-6 AND 17-20)
  • 17
    3621-486 ......DECAL, WARNING - FRENCH
    ......DECAL, WARNING - FRENCH
  • 18
    0617-757 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 19
    0617-755 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 20
    0617-759 ......FOAM, SIDE PANEL - MIDDLE - LEFT
    ......FOAM, SIDE PANEL - MIDDLE - LEFT
  • 21
    3621-590 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
    ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
  • 21
    3621-591 ...DECAL, SIDE PANEL - LOWER REAR - LEFT
    ...DECAL, SIDE PANEL - LOWER REAR - LEFT
  • 22
    3621-592 ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - RIGHT
    ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - RIGHT
  • 22
    3621-593 ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - LEFT
    ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - LEFT
  • 23
    3621-588 ...DECAL, SIDE PANEL - MID FRONT - RIGHT
    ...DECAL, SIDE PANEL - MID FRONT - RIGHT
  • 23
    3621-589 ...DECAL, SIDE PANEL - MID FRONT - LEFT
    ...DECAL, SIDE PANEL - MID FRONT - LEFT
  • 24
    3621-154 ...DECAL, SIDE PANEL - UPPER VENT - RIGHT
    ...DECAL, SIDE PANEL - UPPER VENT - RIGHT
  • 24
    3621-613 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
    ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
  • 25
    3621-584 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT
    ...DECAL, SIDE PANEL - UPPER REAR - RIGHT
  • 25
    3621-585 ...DECAL, SIDE PANEL - UPPER REAR - LEFT
    ...DECAL, SIDE PANEL - UPPER REAR - LEFT
  • 26
    3621-586 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
    ...DECAL, SIDE PANEL - LOWER REAR - RIGHT
  • 26
    3621-587 ...DECAL, SIDE PANEL - LOWER REAR - LEFT
    ...DECAL, SIDE PANEL - LOWER REAR - LEFT
  • 27
    3621-256 DECAL, SIDE PANEL - VENT LOWER RIGHT
    DECAL, SIDE PANEL - VENT LOWER RIGHT
  • 28
    5718-228 PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 4, 29-34, AND 43-50)
    PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 4, 29-34, AND 43-50)
  • 29
    4718-970 ...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 30-34, AND 45-50)
    ...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 30-34, AND 45-50)
  • 30
    0617-760 ......FOAM, SKID PLATE - FRONT - RIGHT
    ......FOAM, SKID PLATE - FRONT - RIGHT
  • 31
    0617-762 ......FOAM, SKID PLATE - MIDDLE - RIGHT
    ......FOAM, SKID PLATE - MIDDLE - RIGHT
  • 32
    0617-764 ......FOAM, SKID PLATE - LOWER - RIGHT
    ......FOAM, SKID PLATE - LOWER - RIGHT
  • 33
    3612-192 ......FOIL, SKID PLATE - RIGHT
    ......FOIL, SKID PLATE - RIGHT
  • 34
    3612-274 ......FOIL, SKID PLATE - RIGHT
    ......FOIL, SKID PLATE - RIGHT
  • 35
    3612-193 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 36
    3612-191 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 37
    8061-708 RIVET
    RIVET
  • 38
    5718-229 PLATE, SKID W/DECALS - LEFT - BLACK (INC. 4 AND 40-50)
    PLATE, SKID W/DECALS - LEFT - BLACK (INC. 4 AND 40-50)
  • 39
    4718-971 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 40-42, AND 45-50)
    PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 40-42, AND 45-50)
  • 40
    0617-765 ...FOAM, SKID PLATE - LOWER - LEFT
    ...FOAM, SKID PLATE - LOWER - LEFT
  • 41
    0617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT
    ...FOAM, SKID PLATE - MIDDLE - LEFT
  • 42
    0617-761 ...FOAM, SKID PLATE - FRONT - LEFT
    ...FOAM, SKID PLATE - FRONT - LEFT
  • 43
    3621-578 DECAL, SKID PLATE - REAR - RIGHT
    DECAL, SKID PLATE - REAR - RIGHT
  • 43
    3621-579 DECAL, SKID PLATE - REAR - LEFT
    DECAL, SKID PLATE - REAR - LEFT
  • 44
    3621-580 DECAL, SKID PLATE - FRONT - RIGHT
    DECAL, SKID PLATE - FRONT - RIGHT
  • 44
    3621-581 DECAL, SKID PLATE - FRONT - LEFT
    DECAL, SKID PLATE - FRONT - LEFT
  • 45
    7606-265 KNOB, HOLDDOWN
    KNOB, HOLDDOWN
  • 46
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 47
    7606-296 PLATE, BACKING
    PLATE, BACKING
  • 48
    2623-171 WASHER, FLAT
    WASHER, FLAT
  • 49
    2623-155 CLIP, RETAINING
    CLIP, RETAINING
  • 50
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
