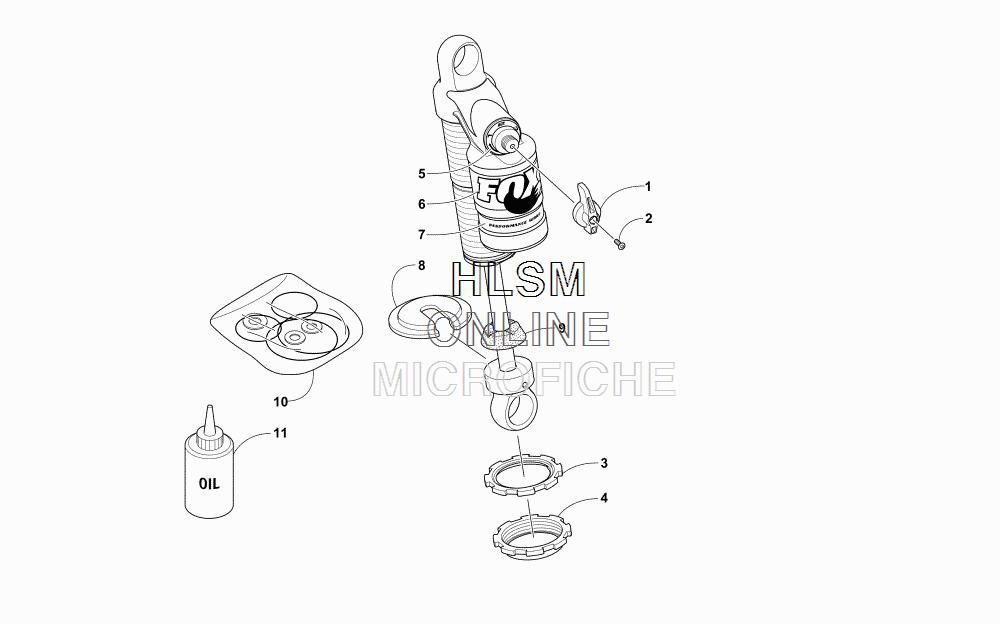

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 9000 RR 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-2704-966 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13603-520 KNOB, DAMPING ADJUSTER - REBOUNDKNOB, DAMPING ADJUSTER - REBOUND
-
23603-377 SCREW, MACHINESCREW, MACHINE
-
33603-026 PRELOAD RINGPRELOAD RING
-
43603-027 PRELOAD RING, BACK-UPPRELOAD RING, BACK-UP
-
53603-523 DECAL, BASE VALUEDECAL, BASE VALUE
-
63603-562 DECAL, RESERVOIRDECAL, RESERVOIR
-
73603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
80403-490 RETAINER, SPRINGRETAINER, SPRING
-
93604-530 BUMPERBUMPER
-
103603-522 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
115639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
