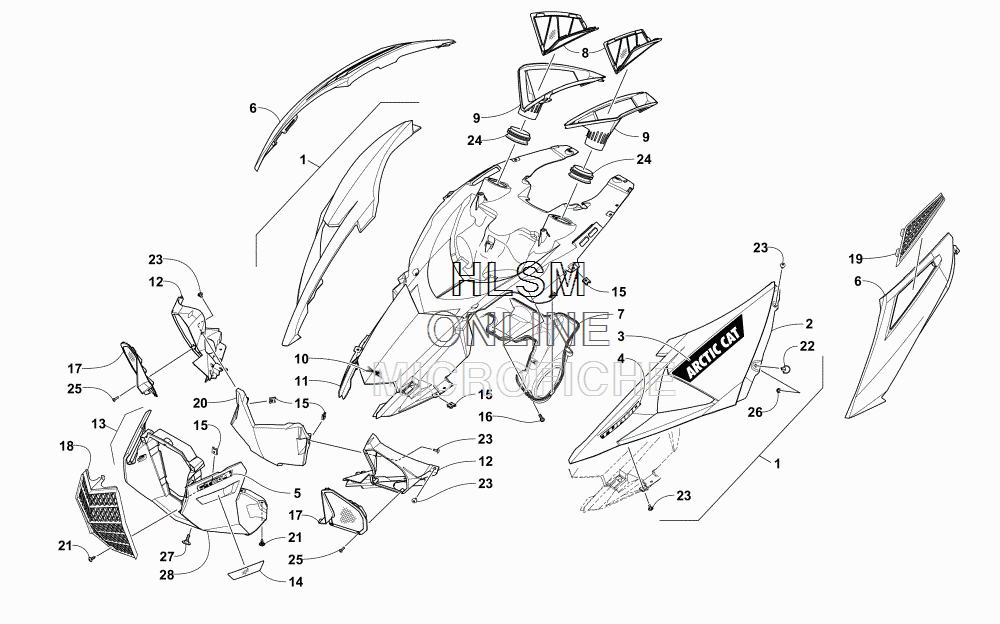

HOOD ASSEMBLY для Arctic Cat ZR 9000 RR 137 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-218 HOOD W/DECALS - RIGHT - BLACK (INC. 2-4)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-4)
  • 1
    5718-219 HOOD W/DECALS - LEFT - BLACK (INC. 2-4)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-4)
  • 2
    7606-138 ...HOOD W/O DECALS - RIGHT - BLACK
    ...HOOD W/O DECALS - RIGHT - BLACK
  • 2
    7606-139 ...HOOD W/O DECALS - LEFT - BLACK
    ...HOOD W/O DECALS - LEFT - BLACK
  • 3
    3621-582 ...DECAL, HOOD - REAR - RIGHT
    ...DECAL, HOOD - REAR - RIGHT
  • 3
    3621-583 ...DECAL, HOOD - REAR - LEFT
    ...DECAL, HOOD - REAR - LEFT
  • 4
    3621-577 ...DECAL, FRONT FASCIA
    ...DECAL, FRONT FASCIA
  • 5
    0621-993 DECAL, HOOD - "C-TEC4"
    DECAL, HOOD - "C-TEC4"
  • 6
    7606-152 PANEL, UPPER SIDE - RIGHT - BLACK
    PANEL, UPPER SIDE - RIGHT - BLACK
  • 6
    7606-153 PANEL, UPPER SIDE - LEFT - BLACK
    PANEL, UPPER SIDE - LEFT - BLACK
  • 7
    2670-500 PLENUM, INTAKE - LOWER
    PLENUM, INTAKE - LOWER
  • 8
    0608-758 SCREEN, INTAKE DUCT - RIGHT
    SCREEN, INTAKE DUCT - RIGHT
  • 8
    0608-759 SCREEN, INTAKE DUCT - LEFT
    SCREEN, INTAKE DUCT - LEFT
  • 9
    0608-748 DUCT, INTAKE - RIGHT
    DUCT, INTAKE - RIGHT
  • 9
    0608-749 DUCT, INTAKE - LEFT
    DUCT, INTAKE - LEFT
  • 10
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 11
    7606-095 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 12
    7606-054 VENT - RIGHT
    VENT - RIGHT
  • 12
    7606-055 VENT - LEFT
    VENT - LEFT
  • 13
    5718-284 FASCIA, FRONT W/DECAL - BLACK (INC. 5 AND 28)
    FASCIA, FRONT W/DECAL - BLACK (INC. 5 AND 28)
  • 14
    2621-915 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 15
    1623-939 NUT, U
    NUT, U
  • 16
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    7606-056 BEZEL, VENT - RIGHT
    BEZEL, VENT - RIGHT
  • 17
    7606-057 BEZEL, VENT - LEFT
    BEZEL, VENT - LEFT
  • 18
    7606-117 GRILLE
    GRILLE
  • 19
    7606-272 VENT, UPPER - SIDE PANEL - RIGHT
    VENT, UPPER - SIDE PANEL - RIGHT
  • 19
    7606-273 VENT, UPPER - SIDE PANEL - LEFT
    VENT, UPPER - SIDE PANEL - LEFT
  • 20
    7606-097 CLOSE-OFF
    CLOSE-OFF
  • 21
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 23
    2623-164 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    6606-386 SEAL
    SEAL
  • 25
    2623-211 SCREW
    SCREW
  • 26
    2623-004 NUT, PUSH
    NUT, PUSH
  • 27
    1423-060 SCREW, SHOULDER
    SCREW, SHOULDER
  • 28
    7606-196 FASCIA, FRONT W/O DECAL - BLACK
    FASCIA, FRONT W/O DECAL - BLACK
