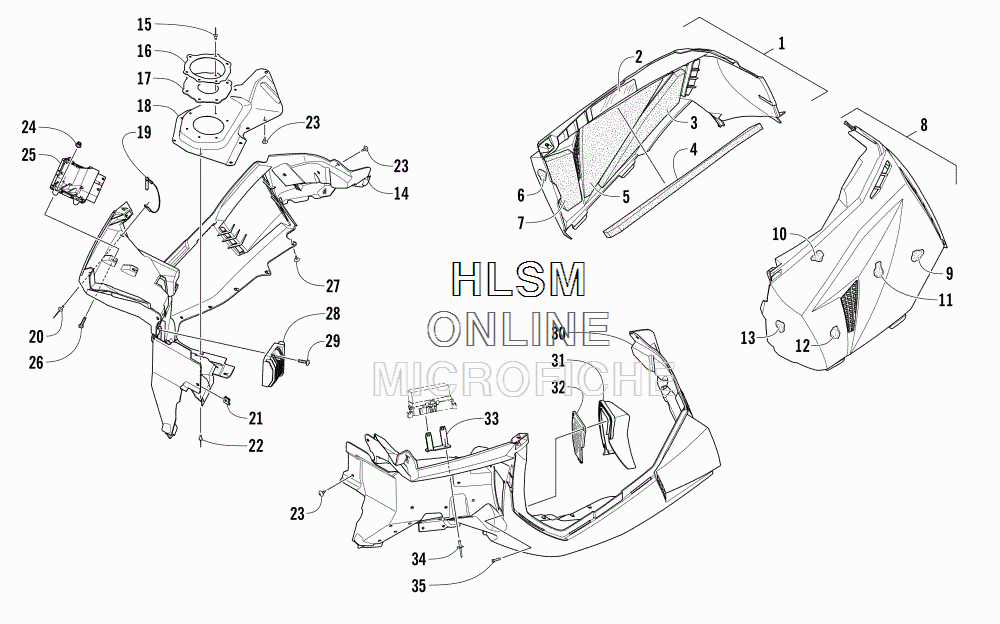

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat BEARCAT 7000 XT INTERNATIONAL BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-698 PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 2-7)
    PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 2-7)
  • 2
    7606-274 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 3
    0617-722 ...FOAM, SIDE PANEL - REAR - RIGHT
    ...FOAM, SIDE PANEL - REAR - RIGHT
  • 4
    0617-716 ...FOAM, SIDE PANEL - UPPER - RIGHT
    ...FOAM, SIDE PANEL - UPPER - RIGHT
  • 5
    0617-720 ...FOAM, SIDE PANEL - CENTER REAR - RIGHT
    ...FOAM, SIDE PANEL - CENTER REAR - RIGHT
  • 6
    0617-714 ...FOAM, SIDE PANEL - FRONT - RIGHT
    ...FOAM, SIDE PANEL - FRONT - RIGHT
  • 7
    0617-718 ...FOAM, SIDE PANEL - CENTER - RIGHT
    ...FOAM, SIDE PANEL - CENTER - RIGHT
  • 8
    5706-699 PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 9-13)
    PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 9-13)
  • 9
    0617-723 ...FOAM, SIDE PANEL - REAR - LEFT
    ...FOAM, SIDE PANEL - REAR - LEFT
  • 10
    0617-717 ...FOAM, SIDE PANEL - UPPER - LEFT
    ...FOAM, SIDE PANEL - UPPER - LEFT
  • 11
    0617-721 ...FOAM, SIDE PANEL - CENTER REAR - LEFT
    ...FOAM, SIDE PANEL - CENTER REAR - LEFT
  • 12
    0617-719 ...FOAM, SIDE PANEL - CENTER - LEFT
    ...FOAM, SIDE PANEL - CENTER - LEFT
  • 13
    0617-715 ...FOAM, SIDE PANEL - FRONT - LEFT
    ...FOAM, SIDE PANEL - FRONT - LEFT
  • 14
    6606-766 SKID PLATE - RIGHT - BLACK
    SKID PLATE - RIGHT - BLACK
  • 15
    8061-486 RIVET
    RIVET
  • 16
    2612-685 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 17
    2612-554 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 18
    2612-974 SHIELD, EXHAUST OUTLET
    SHIELD, EXHAUST OUTLET
  • 19
    2623-198 PUSH PIN
    PUSH PIN
  • 20
    8061-506 RIVET
    RIVET
  • 21
    1623-939 NUT, U
    NUT, U
  • 22
    8061-708 RIVET
    RIVET
  • 23
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    8427-602 NUT, LOCK
    NUT, LOCK
  • 25
    0730-279 ECM
    ECM
  • 26
    8408-630 SCREW, CAP
    SCREW, CAP
  • 27
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0824-072 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 29
    1623-618 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 30
    6606-767 SKID PLATE - LEFT - BLACK
    SKID PLATE - LEFT - BLACK
  • 31
    6606-887 DUCT, VENT
    DUCT, VENT
  • 32
    6606-886 SCREEN, VENT
    SCREEN, VENT
  • 33
    0745-388 BRACKET MOUNTING- PDM
    BRACKET MOUNTING- PDM
  • 34
    8061-706 RIVET
    RIVET
  • 35
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
