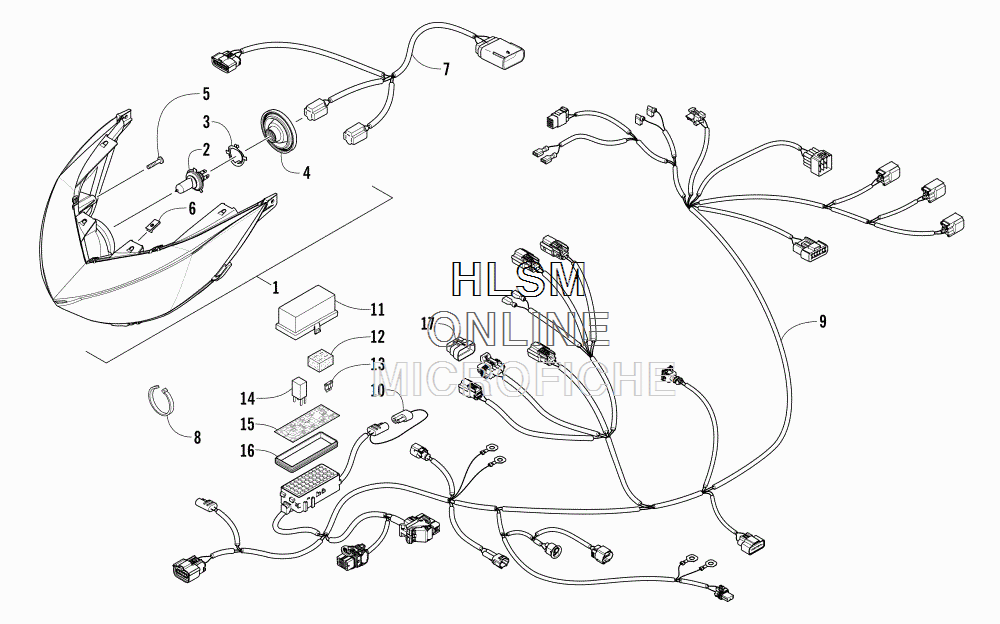

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat BEARCAT 7000 XT INTERNATIONAL BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-967 HEADLIGHT ASSEMBLY (INC. 2-4)
    HEADLIGHT ASSEMBLY (INC. 2-4)
  • 2
    0609-956 ...BULB
    ...BULB
  • 3
    0409-097 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0609-919 ...BOOT
    ...BOOT
  • 5
    1623-915 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    0423-031 NUT, SPEED
    NUT, SPEED
  • 7
    1686-714 HARNESS, HOOD
    HARNESS, HOOD
  • 8
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 8
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 8
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 9
    1686-795 HARNESS, MAIN (INC. 10-17)
    HARNESS, MAIN (INC. 10-17)
  • 10
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 11
    0430-085 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 12
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 13
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 13
    0430-098 ...FUSE - 20 AMP
    ...FUSE - 20 AMP
  • 13
    0430-099 ...FUSE, MINI - 25 AMP
    ...FUSE, MINI - 25 AMP
  • 13
    0630-233 ...FUSE - 25 AMP
    ...FUSE - 25 AMP
  • 13
    0430-030 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 14
    0430-045 ...RELAY (4-PIN) 20 AMP
    ...RELAY (4-PIN) 20 AMP
  • 15
    0621-937 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 16
    0430-086 ...SEAL
    ...SEAL
  • 17
    0430-101 ...COVER, DIAGNOSTICS CONNECTOR
    ...COVER, DIAGNOSTICS CONNECTOR
