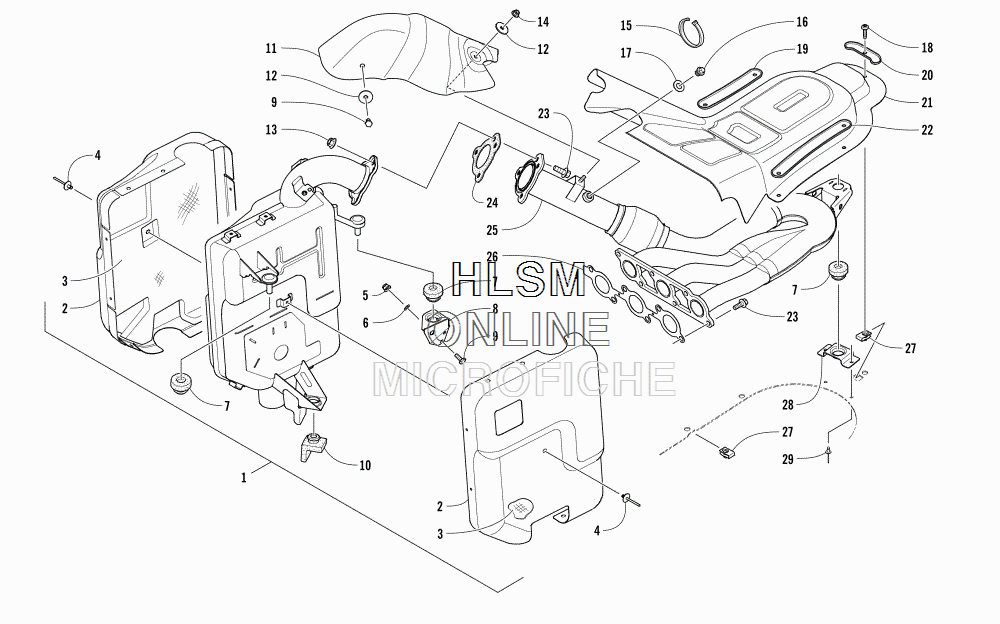

EXHAUST ASSEMBLY для Arctic Cat BEARCAT 7000 XT INTERNATIONAL BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-910 RESONATOR ASSEMBLY (INC. 2-4)
    RESONATOR ASSEMBLY (INC. 2-4)
  • 2
    2612-822 ...SHIELD, HEAT - RIGHT
    ...SHIELD, HEAT - RIGHT
  • 2
    2612-951 ...SHIELD, HEAT - LEFT
    ...SHIELD, HEAT - LEFT
  • 3
    3612-184 ...PACKING, RESONATOR
    ...PACKING, RESONATOR
  • 4
    1623-799 ...RIVET
    ...RIVET
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    1623-409 RETAINER, PUSHNUT
    RETAINER, PUSHNUT
  • 7
    2612-186 GROMMET
    GROMMET
  • 8
    1712-868 MOUNTING BRACKET - RESONATOR
    MOUNTING BRACKET - RESONATOR
  • 9
    8402-616 SCREW, CAP
    SCREW, CAP
  • 10
    2612-706 GROMMET - LOWER
    GROMMET - LOWER
  • 11
    2612-978 HEAT SHIELD - UPPER MANIFOLD
    HEAT SHIELD - UPPER MANIFOLD
  • 12
    8450-108 WASHER
    WASHER
  • 13
    2623-238 NUT, LOCK
    NUT, LOCK
  • 14
    2623-080 NUT, LOCK
    NUT, LOCK
  • 15
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 15
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 16
    2602-099 PLUG
    PLUG
  • 17
    0923-016 GASKET
    GASKET
  • 18
    2623-059 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    3612-202 PLATE, MOUNTING - HEAT SHIELD - RIGHT
    PLATE, MOUNTING - HEAT SHIELD - RIGHT
  • 20
    3612-204 PLATE, MOUNTING - HEAT SHIELD - REAR
    PLATE, MOUNTING - HEAT SHIELD - REAR
  • 21
    2612-917 HEAT SHIELD - MANIFOLD
    HEAT SHIELD - MANIFOLD
  • 22
    3612-203 PLATE, MOUNTING - HEAT SHIELD - LEFT
    PLATE, MOUNTING - HEAT SHIELD - LEFT
  • 23
    1623-918 SCREW, CAP
    SCREW, CAP
  • 24
    2612-663 GASKET, EXHAUST
    GASKET, EXHAUST
  • 25
    1712-929 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 26
    3020-136 GASKET, EXHAUST
    GASKET, EXHAUST
  • 27
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 28
    2612-963 BRACKET, MOUNTING - MANIFOLD
    BRACKET, MOUNTING - MANIFOLD
  • 29
    8060-682 RIVET
    RIVET
