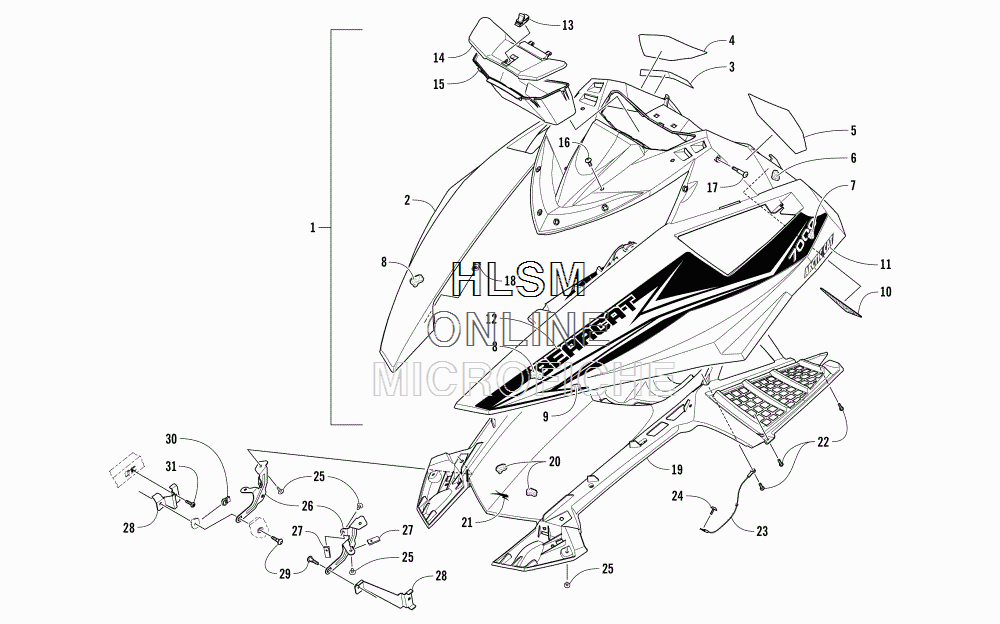

HOOD ASSEMBLY для Arctic Cat BEARCAT 7000 XT INTERNATIONAL BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-811 HOOD, OUTER - W/DECALS - BLUE (INC. 2-12)
    HOOD, OUTER - W/DECALS - BLUE (INC. 2-12)
  • 2
    4718-586 ...HOOD, OUTER - W/O DECALS - BLUE (INC. 3-10)
    ...HOOD, OUTER - W/O DECALS - BLUE (INC. 3-10)
  • 3
    2621-854 ......DECAL, CAUTION - SHIFT
    ......DECAL, CAUTION - SHIFT
  • 4
    2621-323 ......DECAL, WARNING (ENGLISH)
    ......DECAL, WARNING (ENGLISH)
  • 5
    2621-322 ......DECAL, WARNING (FRENCH)
    ......DECAL, WARNING (FRENCH)
  • 6
    7606-282 ......PAD, INSTRUMENT CLUSTER - RIGHT
    ......PAD, INSTRUMENT CLUSTER - RIGHT
  • 6
    7606-283 ......PAD, INSTRUMENT CLUSTER - LEFT
    ......PAD, INSTRUMENT CLUSTER - LEFT
  • 7
    7606-278 ......PAD, REAR - RIGHT
    ......PAD, REAR - RIGHT
  • 7
    7606-279 ......PAD, REAR - LEFT
    ......PAD, REAR - LEFT
  • 8
    0617-710 ......FOAM, OUTER - RIGHT
    ......FOAM, OUTER - RIGHT
  • 8
    0617-711 ......FOAM, OUTER - LEFT
    ......FOAM, OUTER - LEFT
  • 9
    7606-276 ......PAD, FRONT - RIGHT
    ......PAD, FRONT - RIGHT
  • 9
    7606-277 ......PAD, FRONT - LEFT
    ......PAD, FRONT - LEFT
  • 10
    7606-280 ......PAD, HOOD LATCH - RIGHT
    ......PAD, HOOD LATCH - RIGHT
  • 10
    7606-281 ......PAD, HOOD LATCH - LEFT
    ......PAD, HOOD LATCH - LEFT
  • 11
    2621-667 ...DECAL, "ARCTIC CAT" - BLUE
    ...DECAL, "ARCTIC CAT" - BLUE
  • 12
    3621-194 ...DECAL, "BEARCAT" - RIGHT - BLUE
    ...DECAL, "BEARCAT" - RIGHT - BLUE
  • 12
    3621-195 ...DECAL, "BEARCAT" - LEFT - BLUE
    ...DECAL, "BEARCAT" - LEFT - BLUE
  • 13
    2623-065 LATCH, SLIDE
    LATCH, SLIDE
  • 14
    6606-860 LID, STORAGE BOX - BLACK
    LID, STORAGE BOX - BLACK
  • 15
    6606-915 STORAGE COMPARTMENT
    STORAGE COMPARTMENT
  • 16
    2623-042 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    2623-058 SCREW, SHOULDER
    SCREW, SHOULDER
  • 18
    1623-939 NUT, U
    NUT, U
  • 19
    4718-591 HOOD, CENTER - BLACK (INC. 20)
    HOOD, CENTER - BLACK (INC. 20)
  • 20
    0617-712 ...FOAM, CENTER - RIGHT
    ...FOAM, CENTER - RIGHT
  • 20
    0617-713 ...FOAM, CENTER - LEFT
    ...FOAM, CENTER - LEFT
  • 21
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 22
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    6606-611 CABLE, HOOD
    CABLE, HOOD
  • 24
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 25
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    5706-800 BRACKET, HOOD HINGE - UPPER - RIGHT - BLACK
    BRACKET, HOOD HINGE - UPPER - RIGHT - BLACK
  • 26
    5706-801 BRACKET, HOOD HINGE - UPPER - LEFT - BLACK
    BRACKET, HOOD HINGE - UPPER - LEFT - BLACK
  • 27
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 28
    5706-802 BRACKET, HOOD HINGE - LOWER - RIGHT - BLACK
    BRACKET, HOOD HINGE - LOWER - RIGHT - BLACK
  • 28
    5706-803 BRACKET, HOOD HINGE - LOWER - LEFT - BLACK
    BRACKET, HOOD HINGE - LOWER - LEFT - BLACK
  • 29
    2623-068 SCREW, SHOULDER
    SCREW, SHOULDER
  • 30
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 31
    2623-059 SCREW, MACHINE
    SCREW, MACHINE
