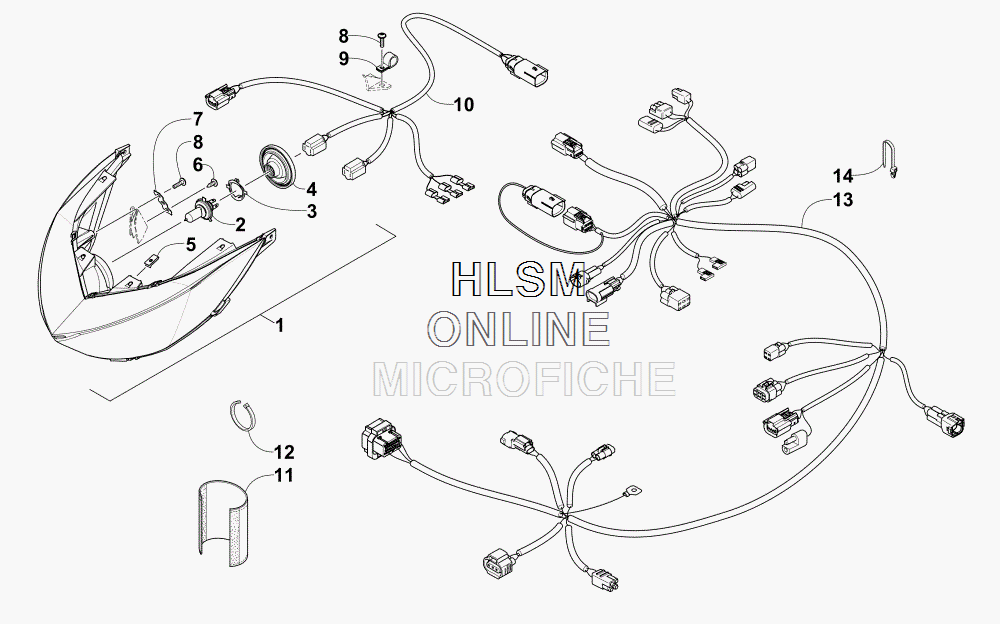

HEADLIGHT AND WIRING ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN [S2016ACDPRUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-899 HEADLIGHT ASSEMBLY (INC. 2-4)
    HEADLIGHT ASSEMBLY (INC. 2-4)
  • 2
    0609-956 ...BULB
    ...BULB
  • 3
    0409-097 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0609-919 ...BOOT
    ...BOOT
  • 5
    0423-031 CLIP, U-NUT
    CLIP, U-NUT
  • 6
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    0624-552 TIE, PERFORATED BAND - 5 FT
    TIE, PERFORATED BAND - 5 FT
  • 7
    0624-541 TIE, PERFORATED BAND - 25 FT
    TIE, PERFORATED BAND - 25 FT
  • 8
    1623-609 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    1623-675 CLAMP, ROUTING
    CLAMP, ROUTING
  • 10
    1686-664 HARNESS, HOOD
    HARNESS, HOOD
  • 11
    5706-138 WRAP, HARNESS
    WRAP, HARNESS
  • 12
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 12
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 13
    1686-732 HARNESS, MAIN
    HARNESS, MAIN
  • 14
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
