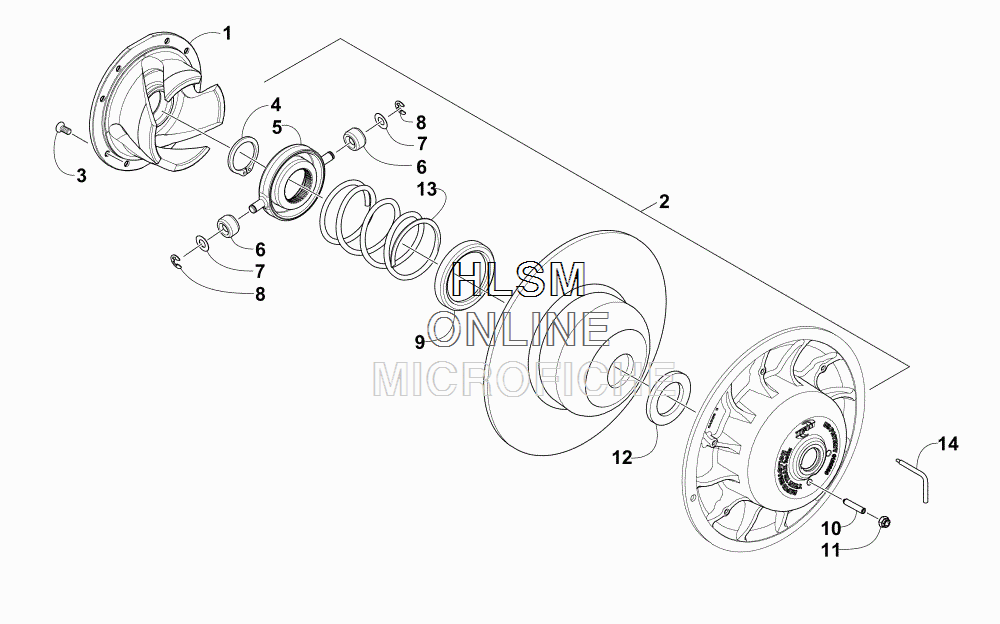

DRIVEN CLUTCH для Arctic Cat ZR 6000 R SX GREEN [S2016ACDPRUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    0726-400 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0648-823 CAM ASSEMBLY 70-44-32/68-42-32
    CAM ASSEMBLY 70-44-32/68-42-32
  • 2
    0726-397 DRIVEN CLUTCH - UNCALIBRATED (INC. 3-12)
    DRIVEN CLUTCH - UNCALIBRATED (INC. 3-12)
  • 3
    0648-748 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 4
    0648-771 ...RING, RETAINING
    ...RING, RETAINING
  • 6
    0648-699 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 7
    0648-700 WASHER, THRUST
    WASHER, THRUST
  • 8
    0648-701 RING, RETAINING
    RING, RETAINING
  • 9
    0648-703 WASHER, THRUST
    WASHER, THRUST
  • 10
    0648-907 SCREW, SET
    SCREW, SET
  • 11
    0648-777 NUT, LOCK
    NUT, LOCK
  • 12
    0648-855 SPACER
    SPACER
  • 13
    0648-792 SPRING, DRIVEN CLUTCH - BLACK/ORANGE
    SPRING, DRIVEN CLUTCH - BLACK/ORANGE
  • 14
    0644-424 TOOL, DRIVE BELT DEFLECTION
    TOOL, DRIVE BELT DEFLECTION
