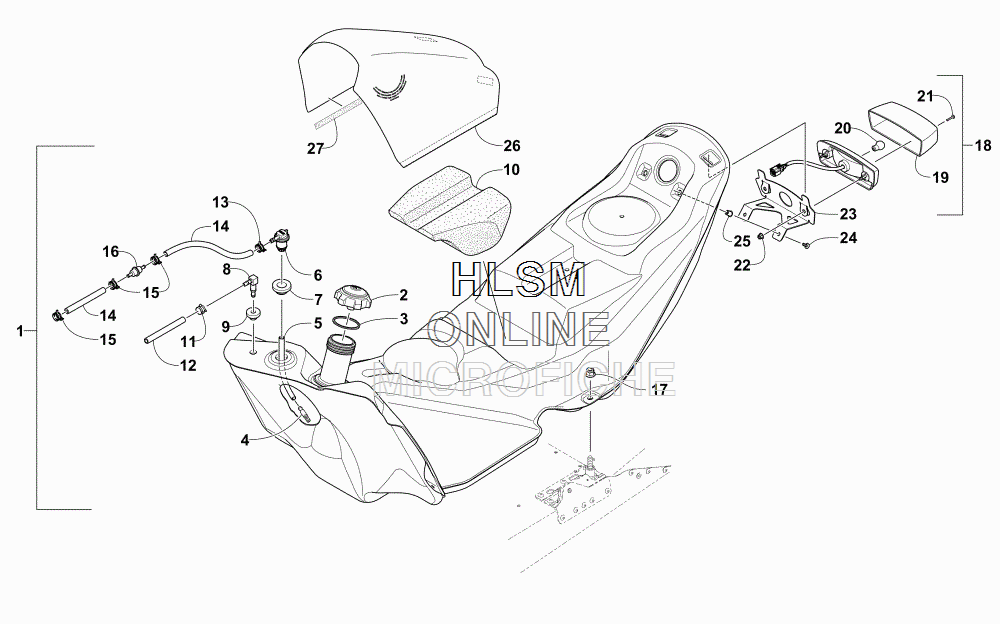

GAS TANK AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN [S2016ACDPRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
10770-985 TANK, GAS/SEAT-BASE (INC. 2-9)TANK, GAS/SEAT-BASE (INC. 2-9)
-
22670-077 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
40510-358 ...STRAINER, GAS TANK...STRAINER, GAS TANK
-
50610-815 ...HOSE, GASLINE - 100 FT...HOSE, GASLINE - 100 FT
-
50610-814 ...HOSE, GASLINE - 50 FT...HOSE, GASLINE - 50 FT
-
61670-787 ...VALVE, CHECK...VALVE, CHECK
-
71670-822 ...GROMMET...GROMMET
-
80109-284 ...ELBOW, GAS TANK (INC. 9)...ELBOW, GAS TANK (INC. 9)
-
91670-325 ......GROMMET......GROMMET
-
100617-671 FOAM, SEAT - LOWERFOAM, SEAT - LOWER
-
111623-233 CLAMP, HOSECLAMP, HOSE
-
126101-009 HOSE - 50 FTHOSE - 50 FT
-
126101-001 HOSE - 100 FTHOSE - 100 FT
-
130610-415 CLAMP, HOSECLAMP, HOSE
-
140410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
151623-197 CLAMP, HOSECLAMP, HOSE
-
161670-166 FILTER, FUELFILTER, FUEL
-
178427-802 NUT, LOCKNUT, LOCK
-
183303-136 TAILLIGHT ASSEMBLY (INC. 19-21)TAILLIGHT ASSEMBLY (INC. 19-21)
-
193303-421 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
203303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
213304-537 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
228427-602 NUT, LOCKNUT, LOCK
-
230630-293 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
240623-902 SCREW, MACHINESCREW, MACHINE
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
265706-322 COVER, GAS TANK (INC. 27)COVER, GAS TANK (INC. 27)
-
276990-323 ...VELCRO - 3 FT...VELCRO - 3 FT
