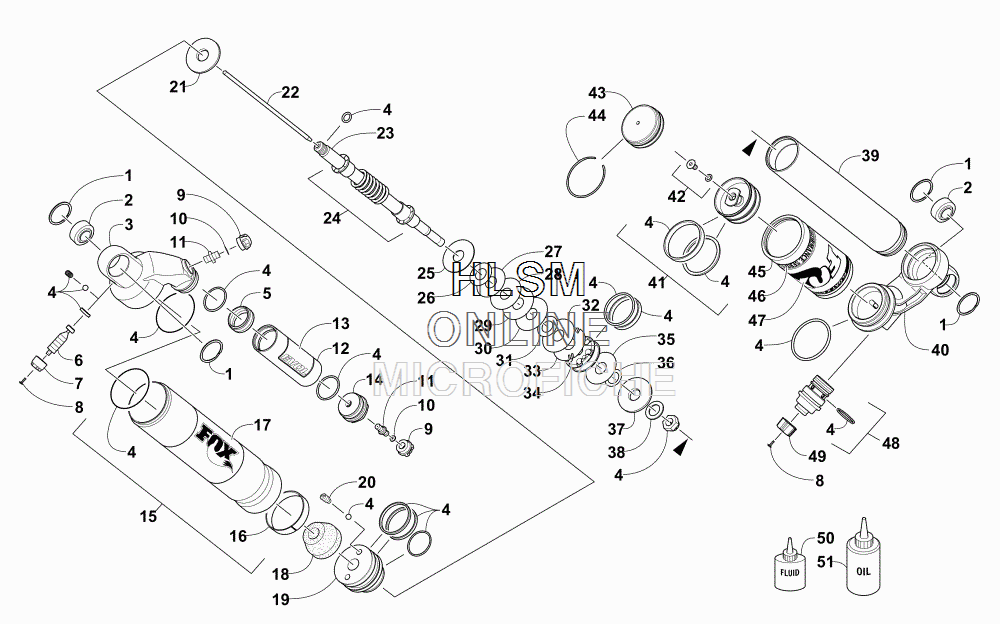

SUSPENSION FRONT - SHOCK ABSORBER для Arctic Cat ZR 8000 SNO PRO RR (GREEN) [S2015ZRHRRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    3703-344 SHOCK ABSORBER - RIGHT
    SHOCK ABSORBER - RIGHT
  • -
    3703-345 SHOCK ABSORBER - LEFT
    SHOCK ABSORBER - LEFT
  • 1
    3604-147 RING, RETAINING
    RING, RETAINING
  • 2
    1604-664 BEARING
    BEARING
  • 3
    3603-381 END CAP, SHOCK - RIGHT
    END CAP, SHOCK - RIGHT
  • 3
    3603-395 END CAP, SHOCK - LEFT
    END CAP, SHOCK - LEFT
  • 4
    3603-420 ...KIT, SEAL/BEARING REBUILD (INC. 5)
    ...KIT, SEAL/BEARING REBUILD (INC. 5)
  • 5
    3603-371 ...PISTON, INTERNAL FLOATING
    ...PISTON, INTERNAL FLOATING
  • 6
    3603-384 DAMPING, ADJUSTER
    DAMPING, ADJUSTER
  • 7
    3603-386 KNOB, DAMPING ADJUSTER - REBOUND
    KNOB, DAMPING ADJUSTER - REBOUND
  • 8
    3603-377 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    3603-367 CAP, AIR VALVE
    CAP, AIR VALVE
  • 10
    2603-965 SEAL - (0.296 IN. OD X 0.125 IN.ID)
    SEAL - (0.296 IN. OD X 0.125 IN.ID)
  • 11
    2603-511 VALVE, AIR
    VALVE, AIR
  • 12
    3603-002 RESERVOIR - (4.50 IN.)
    RESERVOIR - (4.50 IN.)
  • 13
    3603-373 DECAL, "EVOL"
    DECAL, "EVOL"
  • 14
    3603-372 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 15
    3603-290 BODY, SHOCK - (8.80 IN.)UPPER (INC. 4 AND 16)
    BODY, SHOCK - (8.80 IN.)UPPER (INC. 4 AND 16)
  • 16
    3603-376 ...BEARING
    ...BEARING
  • 17
    3603-369 DECAL, "FOX"
    DECAL, "FOX"
  • 18
    3603-005 BUMPER, SHOCK - (0.498 SHAFT X 0.883 IN.TLG)
    BUMPER, SHOCK - (0.498 SHAFT X 0.883 IN.TLG)
  • 19
    3603-409 BEARING - ASSEMBLY - (1.459 BORE X 1.388 IN.)
    BEARING - ASSEMBLY - (1.459 BORE X 1.388 IN.)
  • 20
    1603-940 SCREW, SET
    SCREW, SET
  • 21
    3603-008 SPACER - (0.504 ID X 1.125 OD X 0.100 IN.THK)
    SPACER - (0.504 ID X 1.125 OD X 0.100 IN.THK)
  • 22
    3603-387 ROD, DAMPING ADJUSTER - (0.175 OD X 7.40 IN.)
    ROD, DAMPING ADJUSTER - (0.175 OD X 7.40 IN.)
  • 23
    3603-423 ROD, SHOCK - ASSEMBLY
    ROD, SHOCK - ASSEMBLY
  • 24
    3603-394 SPRING ASSEMBLY
    SPRING ASSEMBLY
  • 25
    0603-540 WASHER, TOP OUT-1.125OD X .378 ID X.093
    WASHER, TOP OUT-1.125OD X .378 ID X.093
  • 26
    0603-338 VALVE, (0.900 X 0.010 IN.)
    VALVE, (0.900 X 0.010 IN.)
  • 27
    0603-341 VALVE, (1.000 X 0.010 IN.)
    VALVE, (1.000 X 0.010 IN.)
  • 28
    0603-344 VALVE, (1.100 X 0.010 IN.)
    VALVE, (1.100 X 0.010 IN.)
  • 29
    0603-347 VALVE, (1.250 X 0.010 IN.)
    VALVE, (1.250 X 0.010 IN.)
  • 30
    0603-350 VALVE, (1.300 X 0.010 IN.)
    VALVE, (1.300 X 0.010 IN.)
  • 31
    0603-333 VALVE, (0.800 X 0.006 IN.)
    VALVE, (0.800 X 0.006 IN.)
  • 32
    0603-349 VALVE, (1.300 X 0.008 IN.)
    VALVE, (1.300 X 0.008 IN.)
  • 33
    4604-038 VALVE, (1.300 X 0.008 IN.)
    VALVE, (1.300 X 0.008 IN.)
  • 34
    3603-397 PISTON, 3-PORT
    PISTON, 3-PORT
  • 35
    0603-343 VALVE, (1.100 X 0.008 IN.)
    VALVE, (1.100 X 0.008 IN.)
  • 36
    0603-895 VALVE, (0.800 X 0.004 IN.)
    VALVE, (0.800 X 0.004 IN.)
  • 37
    3604-170 WASHER, TOP OUT
    WASHER, TOP OUT
  • 38
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 39
    3603-360 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 40
    3603-382 END CAP, SHOCK/RESERVOIR - (2.3 IN.)
    END CAP, SHOCK/RESERVOIR - (2.3 IN.)
  • 41
    3603-422 PISTON, INTERNAL FLOATING (INC. 42)
    PISTON, INTERNAL FLOATING (INC. 42)
  • 42
    1604-316 ...SCREW, MACHINE W/O-RING
    ...SCREW, MACHINE W/O-RING
  • 43
    3603-392 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 44
    3603-379 RING, RETAINING
    RING, RETAINING
  • 45
    3603-388 RESERVOIR
    RESERVOIR
  • 46
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 47
    3603-378 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 48
    0403-380 PISTON, CONCENTRIC - DAMPING ADJUSTER
    PISTON, CONCENTRIC - DAMPING ADJUSTER
  • 49
    3603-385 KNOB, DAMPING ADJUSTER - LOW SPEED
    KNOB, DAMPING ADJUSTER - LOW SPEED
  • 50
    4639-012 FLUID, FLOAT SHOCK - (8 OZ)
    FLUID, FLOAT SHOCK - (8 OZ)
  • 51
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
