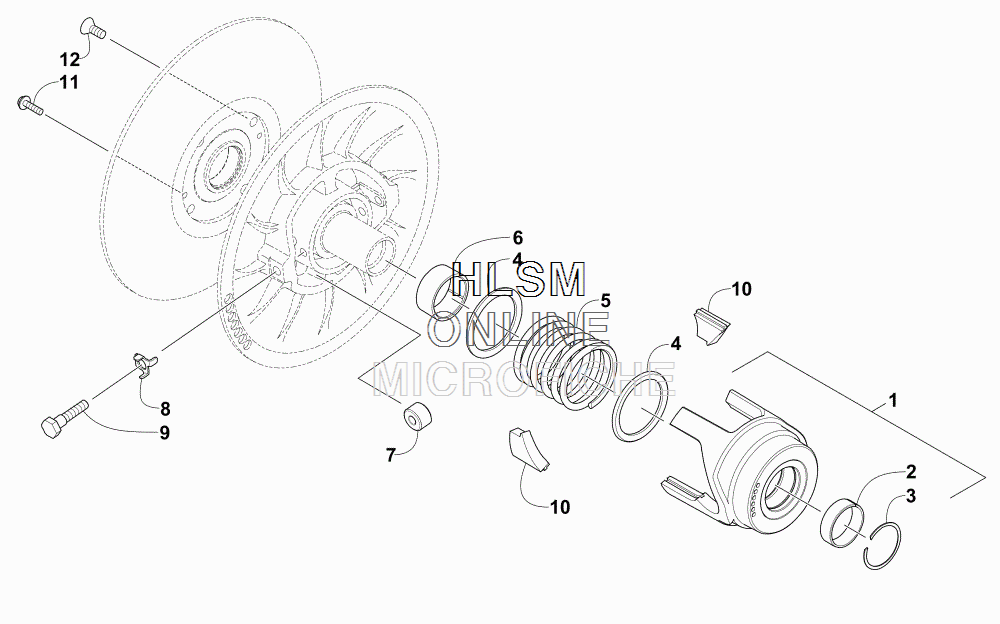

DRIVEN CLUTCH для Arctic Cat ZR 8000 SNO PRO RR (GREEN) [S2015ZRHRRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    0726-340 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0748-771 BRACKET, TORQUE 44°/40° (INC. 2-3)
    BRACKET, TORQUE 44°/40° (INC. 2-3)
  • 1
    0748-770 CAM,DRIVEN-36 MACH (OVER 3,000 FT ALT.) (INC. 2-3)
    CAM,DRIVEN-36 MACH (OVER 3,000 FT ALT.) (INC. 2-3)
  • 2
    0648-831 ...BEARING
    ...BEARING
  • 3
    0648-811 ...RING, SNAP - (43MM)
    ...RING, SNAP - (43MM)
  • 4
    0648-810 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-813 SPRING, DRIVEN CLUTCH - (BLUE)
    SPRING, DRIVEN CLUTCH - (BLUE)
  • 6
    0648-827 SPACER
    SPACER
  • 7
    0648-824 ROLLER, DRIVEN-TORLON
    ROLLER, DRIVEN-TORLON
  • 8
    0648-800 WASHER, TAB
    WASHER, TAB
  • 9
    0648-799 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    0648-826 CAM,BACK-2 STROKE
    CAM,BACK-2 STROKE
  • 11
    0623-684 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    2623-050 SCREW, MACHINE
    SCREW, MACHINE
