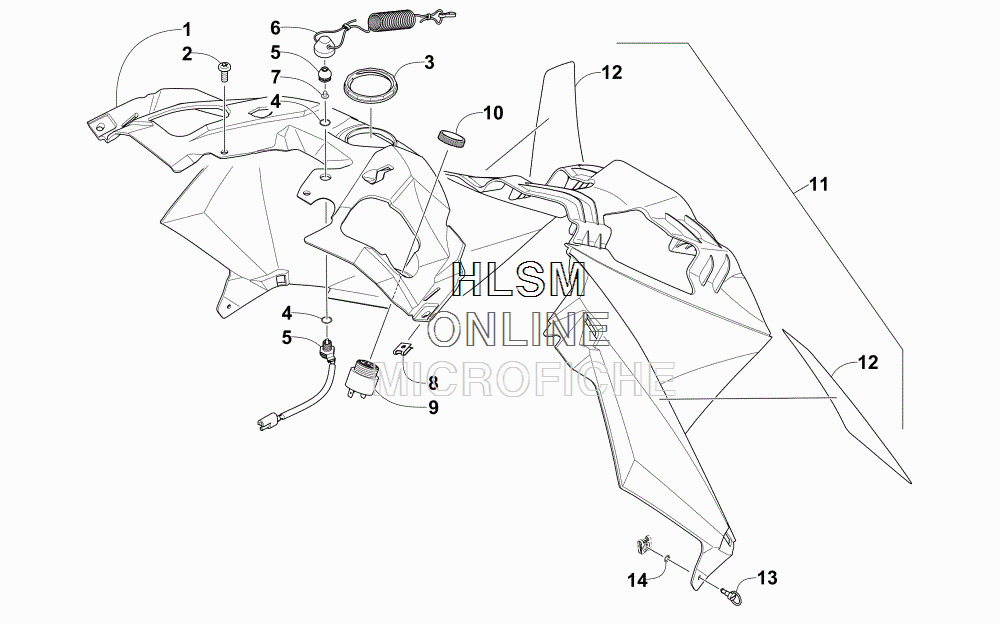

CONSOLE ASSEMBLY для Arctic Cat ZR 8000 SNO PRO RR (GREEN) [S2015ZRHRRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-188 CONSOLE, UPPER - (BLACK)
    CONSOLE, UPPER - (BLACK)
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 5
    0709-071 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/ SCREW (INC. 7)
    ...TETHER CORD W/ SCREW (INC. 7)
  • 7
    0623-338 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 8
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    0630-243 ALARM, REVERSE (INC. 10)
    ALARM, REVERSE (INC. 10)
  • 10
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 11
    3718-998 CONSOLE, LOWER - (BLACK)- W/DECAL (INC. 12-13)
    CONSOLE, LOWER - (BLACK)- W/DECAL (INC. 12-13)
  • 12
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 13
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 14
    2623-003 PIN, RETAINING - (16MM)
    PIN, RETAINING - (16MM)
  • 15
    2623-004 NUT, PUSH
    NUT, PUSH
