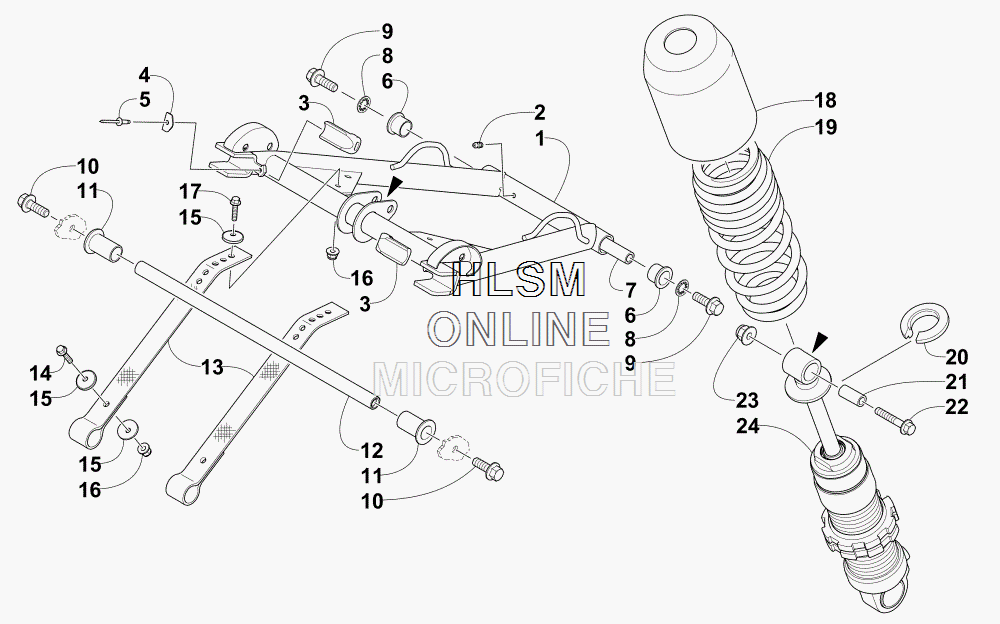

SUSPENSION FRONT - FRONT ARM ASSEMBLY для Arctic Cat ZR 8000 LXR (GREEN) [S2015ZRHLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2704-402 ARM,FRT-W/PIVOT-(BLACK FABR) (INC. 2-6)
    ARM,FRT-W/PIVOT-(BLACK FABR) (INC. 2-6)
  • 2
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 3
    3604-141 ...BUMPER, FRONT SLIDER
    ...BUMPER, FRONT SLIDER
  • 4
    3604-968 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 5
    8060-708 ...RIVET
    ...RIVET
  • 6
    3604-028 ...BUSHING, FLARED - (0 .735 IN. X 0.751 ID)
    ...BUSHING, FLARED - (0 .735 IN. X 0.751 ID)
  • 7
    3604-634 AXLE
    AXLE
  • 8
    1623-992 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 9
    8413-031 SCREW, CAP
    SCREW, CAP
  • 10
    8408-041 SCREW, CAP
    SCREW, CAP
  • 11
    3604-233 BUSHING, FLARED
    BUSHING, FLARED
  • 12
    3604-663 AXLE, FRONT SLIDER
    AXLE, FRONT SLIDER
  • 13
    3604-823 STRAP, LIMITER - (401MM)
    STRAP, LIMITER - (401MM)
  • 14
    8408-630 SCREW, CAP
    SCREW, CAP
  • 15
    8450-109 WASHER
    WASHER
  • 16
    8427-602 NUT, LOCK
    NUT, LOCK
  • 17
    8408-620 SCREW, CAP
    SCREW, CAP
  • 18
    0604-790 COVER, SHOCK
    COVER, SHOCK
  • 19
    1704-736 SPRING, COMPRESSION - (BLACK)
    SPRING, COMPRESSION - (BLACK)
  • 20
    3604-200 RETAINER, SPRING
    RETAINER, SPRING
  • 21
    3604-273 AXLE
    AXLE
  • 22
    8408-045 SCREW, CAP
    SCREW, CAP
  • 23
    8427-002 NUT, LOCK
    NUT, LOCK
  • 24
    2704-358 SHOCK ABSORBER
    SHOCK ABSORBER
