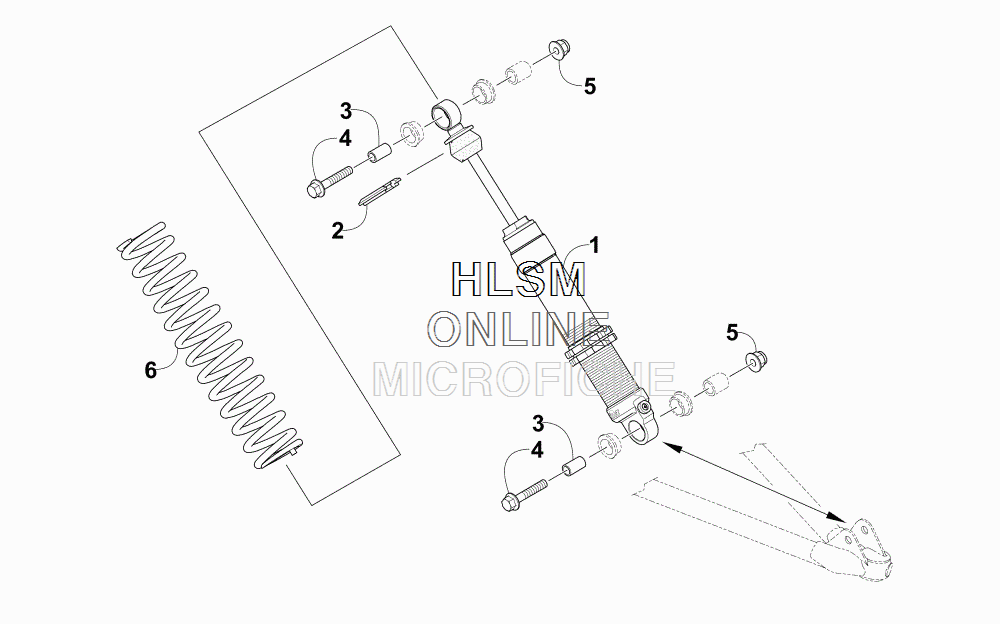

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 8000 LXR (GREEN) [S2015ZRHLXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13703-469 SHOCK, SKI 466.8SHOCK, SKI 466.8
-
23604-200 RETAINER, SPRINGRETAINER, SPRING
-
33604-109 SLEEVE - (10MM ID)SLEEVE - (10MM ID)
-
48408-050 SCREW, CAPSCREW, CAP
-
58427-002 NUT, LOCKNUT, LOCK
-
62703-861 SPRING, COMPRESSION - (95 LB X 13 IN.) - (WHITE)SPRING, COMPRESSION - (95 LB X 13 IN.) - (WHITE)
