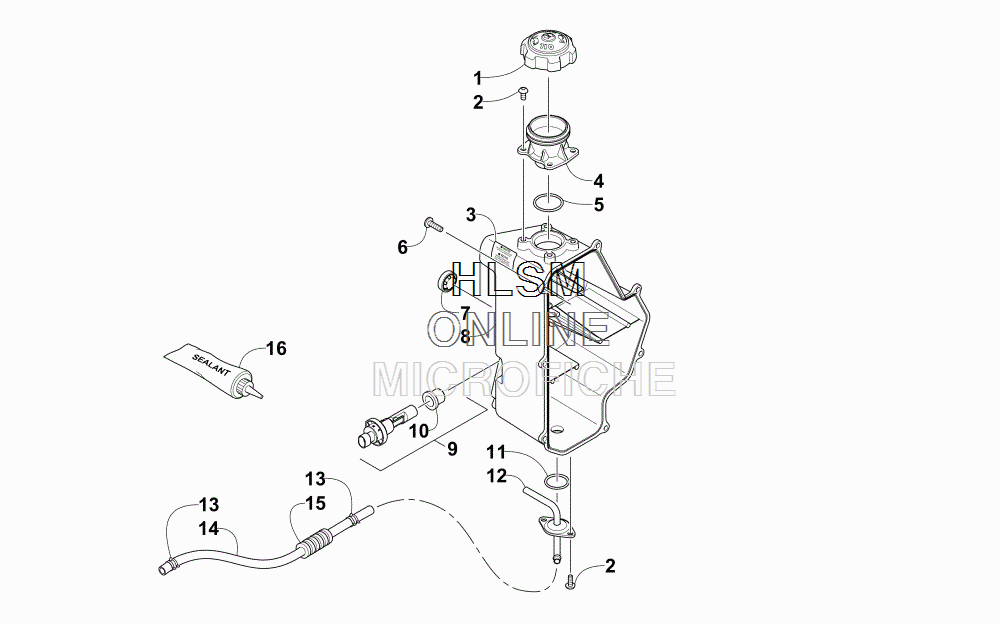

OIL TANK ASSEMBLY для Arctic Cat ZR 8000 LXR (GREEN) [S2015ZRHLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-447 CAP, OIL TANK
    CAP, OIL TANK
  • 2
    1623-969 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    4611-532 DECAL, OIL TANK
    DECAL, OIL TANK
  • 4
    2670-329 NECK, OIL FILL
    NECK, OIL FILL
  • 5
    1623-972 O-RING - (33MM X 3MM)
    O-RING - (33MM X 3MM)
  • 6
    1623-814 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    2670-257 GLASS, SIGHT
    GLASS, SIGHT
  • 8
    1770-019 TANK, OIL - 2 STROKE
    TANK, OIL - 2 STROKE
  • 9
    0609-915 SWITCH, LEVEL-OIL (INC. 10)
    SWITCH, LEVEL-OIL (INC. 10)
  • 10
    0609-924 ...GROMMET
    ...GROMMET
  • 11
    0648-441 O-RING
    O-RING
  • 12
    2670-229 FITTING, OUTLET
    FITTING, OUTLET
  • 13
    1623-042 CLAMP, 10MM
    CLAMP, 10MM
  • 14
    0610-692 HOSE, OIL/WATER - (25 FT)
    HOSE, OIL/WATER - (25 FT)
  • 14
    0610-693 HOSE, OIL - (100 FT)
    HOSE, OIL - (100 FT)
  • 15
    1619-345 LOOM, HIGH TEMP-(3/8 IN. X 3 FT) - CTL
    LOOM, HIGH TEMP-(3/8 IN. X 3 FT) - CTL
  • 16
    1048-063 SEALANT - (70 ML)
    SEALANT - (70 ML)
