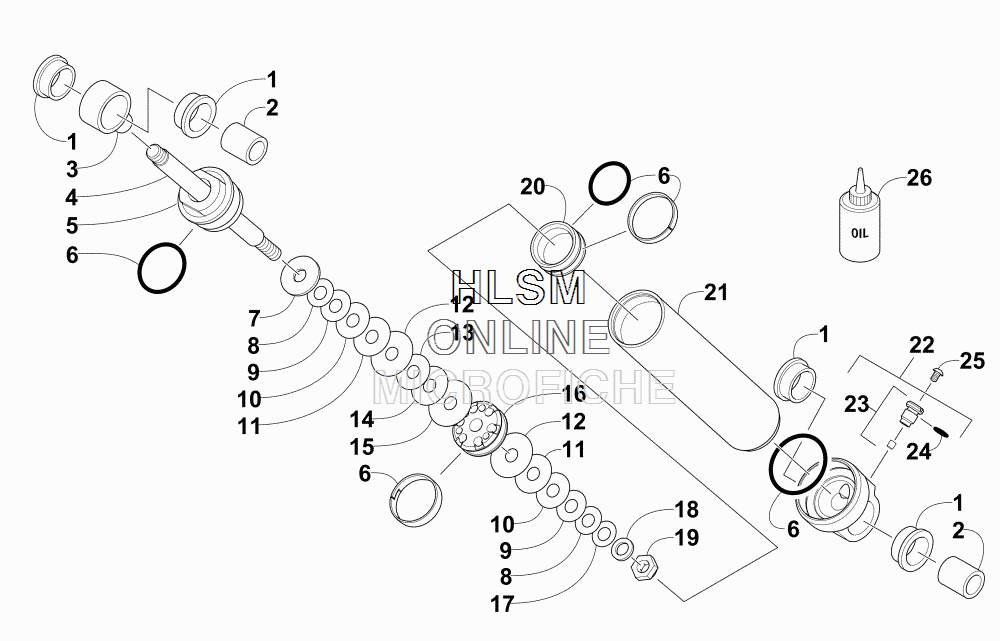

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat ZR 5000 LXR EARLY BUILD (GREEN) [S2015ZRNLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 2704-359
    2704-680 SHOCK, REAR-364.7
    SHOCK, REAR-364.7
  • 1
    3604-738 BUSHING
    BUSHING
  • 2
    3604-737 SLEEVE
    SLEEVE
  • 3
    3604-796 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    3604-776 ROD, SHOCK - (12.66MM X 186.7MM)
    ROD, SHOCK - (12.66MM X 186.7MM)
  • 5
    4604-126 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 6
    4604-121 KIT, SEAL/REBUILD - (37MM)
    KIT, SEAL/REBUILD - (37MM)
  • 7
    3604-789 WASHER, TOP OUT
    WASHER, TOP OUT
  • 8
    3603-105 VALVE, (0.800 X 0.010 IN.)
    VALVE, (0.800 X 0.010 IN.)
  • 9
    3603-115 VALVE, (0.900 X 0.010 IN.)
    VALVE, (0.900 X 0.010 IN.)
  • 10
    3603-125 VALVE, (1.000 X 0.010 IN.)
    VALVE, (1.000 X 0.010 IN.)
  • 11
    3603-145 VALVE, (1.100 X 0.010 IN.)
    VALVE, (1.100 X 0.010 IN.)
  • 12
    3603-175 VALVE, (1.250 X 0.010 IN.)
    VALVE, (1.250 X 0.010 IN.)
  • 13
    3603-122 VALVE, (1.000 X 0.006 IN.)
    VALVE, (1.000 X 0.006 IN.)
  • 14
    3603-144 VALVE, (1.100 X 0.008 IN.)
    VALVE, (1.100 X 0.008 IN.)
  • 15
    3603-186 VALVE, (1.300 X 0.012 IN.)
    VALVE, (1.300 X 0.012 IN.)
  • 16
    2603-018 PISTON, (0.055 IN.) - ORIFICE
    PISTON, (0.055 IN.) - ORIFICE
  • 17
    3603-095 VALVE, (0.700 X 0.010 IN.)
    VALVE, (0.700 X 0.010 IN.)
  • 18
    3604-775 WASHER, BACKUP
    WASHER, BACKUP
  • 19
    3604-739 NUT - (3/8 IN.) - 24UNF
    NUT - (3/8 IN.) - 24UNF
  • 20
    3604-772 PISTON, FLOATING
    PISTON, FLOATING
  • 21
    3604-759 BODY, SHOCK
    BODY, SHOCK
  • 22
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 23-24)
    END CAP, SHOCK - ASSEMBLY (INC. 23-24)
  • 23
    3604-751 ...VALVE, PRESSURE (INC. 24)
    ...VALVE, PRESSURE (INC. 24)
  • 24
    3604-733 ......O-RING, VALVE
    ......O-RING, VALVE
  • 25
    3604-750 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    5639-530 OIL, SHOCK - (1 QT)
    OIL, SHOCK - (1 QT)
