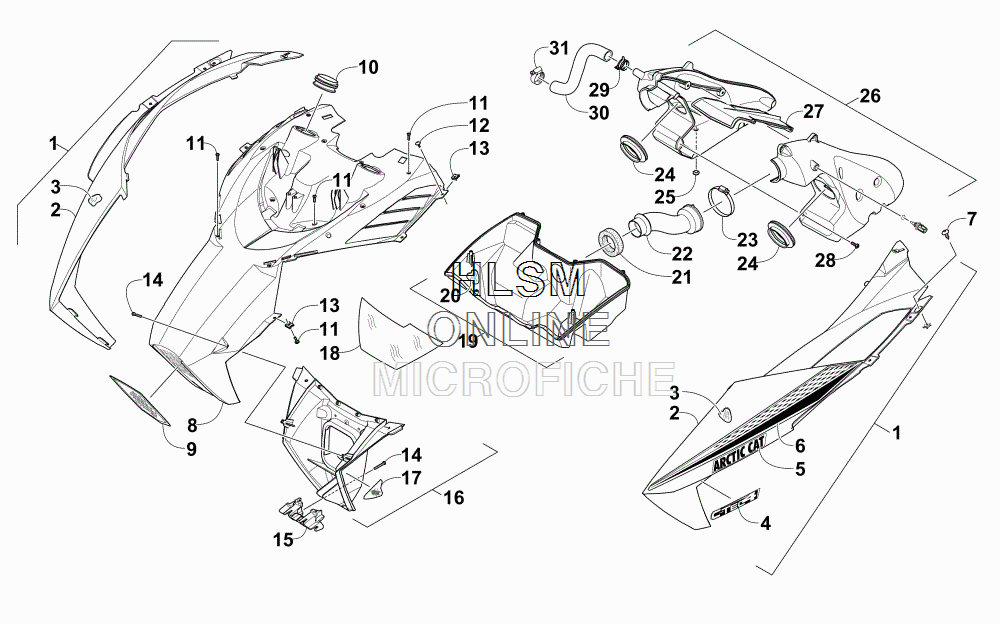

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 5000 LXR EARLY BUILD (GREEN) [S2015ZRNLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-438 HOOD W/DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 2-6)
    HOOD W/DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 2-6)
  • 2
    3718-264 ...HOOD W/FOIL - RIGHT - (TEAM ARCTIC GREEN) (INC. 3)
    ...HOOD W/FOIL - RIGHT - (TEAM ARCTIC GREEN) (INC. 3)
  • 3
    6606-420 ......FOIL, PROTECTIVE - HOOD - RIGHT
    ......FOIL, PROTECTIVE - HOOD - RIGHT
  • 6
    1621-570 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 1
    4718-439 HOOD W/DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 2-6)
    HOOD W/DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 2-6)
  • 2
    3718-837 ...HOOD W/FOIL - LEFT - (TEAM ARCTIC GREEN) (INC. 3)
    ...HOOD W/FOIL - LEFT - (TEAM ARCTIC GREEN) (INC. 3)
  • 3
    6606-415 ......FOIL, PROTECTIVE - HOOD - LEFT
    ......FOIL, PROTECTIVE - HOOD - LEFT
  • 4
    0621-993 ......DECAL, HOOD - "C-TEC"
    ......DECAL, HOOD - "C-TEC"
  • 5
    0621-755 ......DECAL, "ARCTIC CAT" - (BLACK/GREEN)
    ......DECAL, "ARCTIC CAT" - (BLACK/GREEN)
  • 6
    1621-571 ...DECAL, HOOD - UPPER - LEFT
    ...DECAL, HOOD - UPPER - LEFT
  • 7
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    6606-383 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 9
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 10
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 11
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 13
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 14
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 16
    5706-992 PLENUM, INTAKE - LOWER FRONT (INC. 17)
    PLENUM, INTAKE - LOWER FRONT (INC. 17)
  • 17
    0621-989 ...DECAL, REFLECTOR - (AMBER)
    ...DECAL, REFLECTOR - (AMBER)
  • 18
    6606-421 FOIL, PROTECTIVE - UPPER
    FOIL, PROTECTIVE - UPPER
  • 19
    5706-372 PLENUM, INTAKE - LOWER REAR (INC. 20)
    PLENUM, INTAKE - LOWER REAR (INC. 20)
  • 20
    6606-419 ...FOIL, PROTECTIVE - LOWER
    ...FOIL, PROTECTIVE - LOWER
  • 21
    0617-644 SEAL
    SEAL
  • 22
    2670-164 DUCT, INTAKE
    DUCT, INTAKE
  • 23
    0423-018 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    2670-161 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 25
    0406-877 BUMPER
    BUMPER
  • 26
    2670-160 SILENCER, AIR - ASSEMBLY (INC. 27-28)
    SILENCER, AIR - ASSEMBLY (INC. 27-28)
  • 27
    2670-183 ...BAFFLE, AIR SILENCER
    ...BAFFLE, AIR SILENCER
  • 28
    1623-251 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 29
    1623-229 CLAMP, HOSE
    CLAMP, HOSE
  • 30
    0610-852 HOSE, BREATHER
    HOSE, BREATHER
  • 31
    1623-291 CLAMP, HOSE
    CLAMP, HOSE
