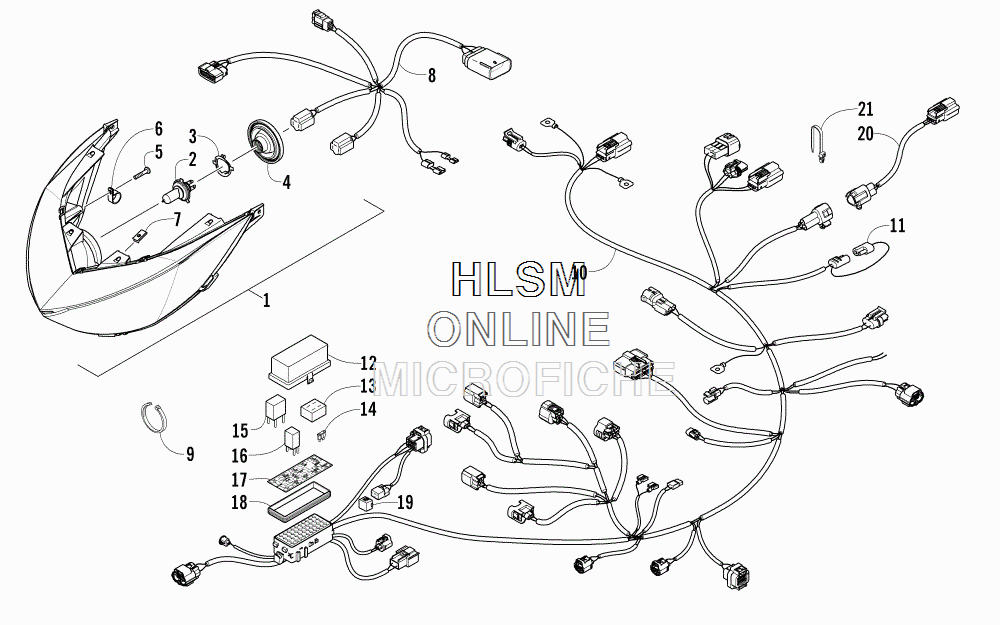

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 5000 LXR EARLY BUILD (GREEN) [S2015ZRNLXUSG] - 2015 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    0609-899 HEADLIGHT ASSEMBLY (INC. 2-4)
    HEADLIGHT ASSEMBLY (INC. 2-4)
  • 2
    0109-724 ...BULB
    ...BULB
  • 3
    0409-097 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0609-919 ...BOOT
    ...BOOT
  • 5
    1623-915 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    1623-675 CLAMP, ROUTING
    CLAMP, ROUTING
  • 7
    0423-031 CLIP, U-NUT
    CLIP, U-NUT
  • 8
    1686-639 HARNESS, HOOD
    HARNESS, HOOD
  • 9
    0123-811 TIE, CABLE - (4 IN.)
    TIE, CABLE - (4 IN.)
  • 9
    0123-788 TIE, CABLE - (8 IN.)
    TIE, CABLE - (8 IN.)
  • 9
    0123-903 TIE, CABLE - (11.5 IN.)
    TIE, CABLE - (11.5 IN.)
  • 10
    1686-682 HARNESS,MAIN-4 STRK N/A LXR (INC. 11-18)
    HARNESS,MAIN-4 STRK N/A LXR (INC. 11-18)
  • 11
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 12
    0430-085 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 13
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 14
    0430-031 ...FUSE - (15 AMP)
    ...FUSE - (15 AMP)
  • 14
    0430-098 ...FUSE, MINI - (20 AMP)
    ...FUSE, MINI - (20 AMP)
  • 14
    0430-099 ...FUSE, MINI - (25 AMP)
    ...FUSE, MINI - (25 AMP)
  • 14
    0430-030 ...FUSE - (30 AMP)
    ...FUSE - (30 AMP)
  • 15
    0430-033 ...RELAY (5-PIN) - (30 AMP)
    ...RELAY (5-PIN) - (30 AMP)
  • 16
    0430-045 ...RELAY (4-PIN) - (20 AMP)
    ...RELAY (4-PIN) - (20 AMP)
  • 17
    8611-663 ...DECAL, FUSE BLOCK - 4 STROKE
    ...DECAL, FUSE BLOCK - 4 STROKE
  • 18
    0430-086 ...SEAL
    ...SEAL
  • 19
    0430-097 COVER, DIAGNOSTICS CONNECTOR (OPTIONAL)
    COVER, DIAGNOSTICS CONNECTOR (OPTIONAL)
  • 20
    1686-641 HARNESS, EXTENSION - TAILLIGHT - (1830MM)
    HARNESS, EXTENSION - TAILLIGHT - (1830MM)
  • 21
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
