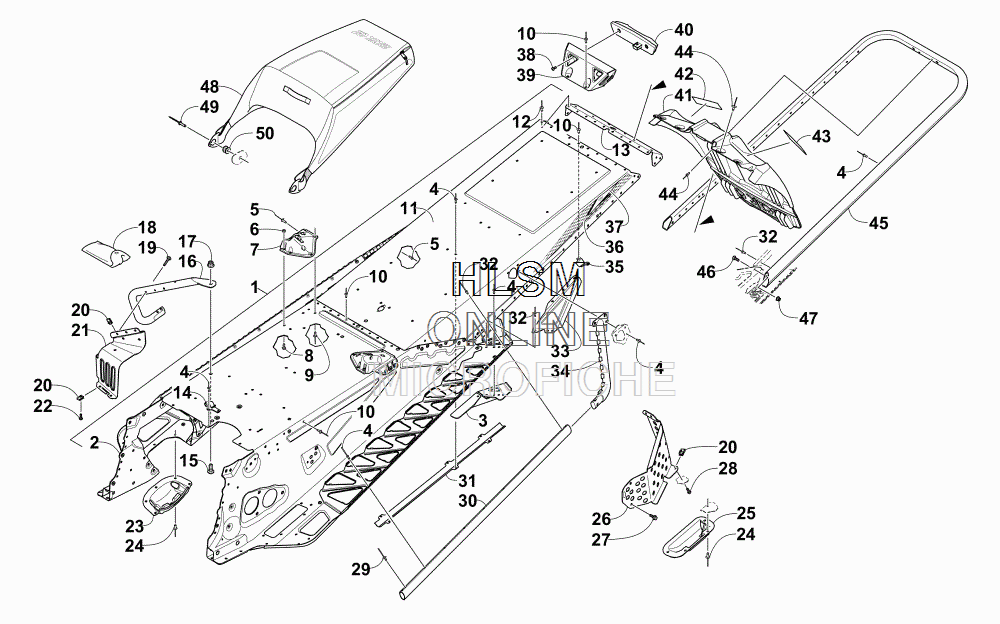

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 8000 LXR (GREEN) [S2015XFHLXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
-1707-985 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-236 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
22707-235 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
31607-332 ......BRACKET, REAR SUSPENSION - OUTER RIGHT......BRACKET, REAR SUSPENSION - OUTER RIGHT
-
31607-333 ......BRACKET, REAR SUSPENSION - OUTER LEFT......BRACKET, REAR SUSPENSION - OUTER LEFT
-
48060-686 ......RIVET, BLIND-DH SS64 ZINC......RIVET, BLIND-DH SS64 ZINC
-
51623-206 ...RIVET, 3/16 HUCK-M9...RIVET, 3/16 HUCK-M9
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET, 3/16 HUCK-M5...RIVET, 3/16 HUCK-M5
-
108060-682 ...RIVET, BLIND-DH SS62 ZINC...RIVET, BLIND-DH SS62 ZINC
-
111607-251 ...TUNNEL, REAR-141"...TUNNEL, REAR-141"
-
128060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
140645-709 CLIP, ROUTINGCLIP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
161707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
178427-802 NUT, LOCKNUT, LOCK
-
180744-076 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
210607-997 FOOTREST - LEFTFOOTREST - LEFT
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVET, BLIND-LF SS66 BLACKRIVET, BLIND-LF SS66 BLACK
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
261607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVET, 3/16 HUCK-M4RIVET, 3/16 HUCK-M4
-
301607-092 ROLL, TUNNELROLL, TUNNEL
-
310630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
331607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
331607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
341607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
341607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
350630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
361621-590 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
361621-591 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
388470-510 SCREW, MACHINESCREW, MACHINE
-
390630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
400609-898 TAILLIGHT, REDTAILLIGHT, RED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
448061-706 RIVET, BLIND-LF SS64 BLACKRIVET, BLIND-LF SS64 BLACK
-
452707-438 BUMPER, REAR - TEAM ARCTIC GREENBUMPER, REAR - TEAM ARCTIC GREEN
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
478427-602 NUT, LOCKNUT, LOCK
-
486606-600 SADDLEBAG,REARSADDLEBAG,REAR
-
498060-630 RIVET, BLIND-DH AA68 BLKRIVET, BLIND-DH AA68 BLK
-
501623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
