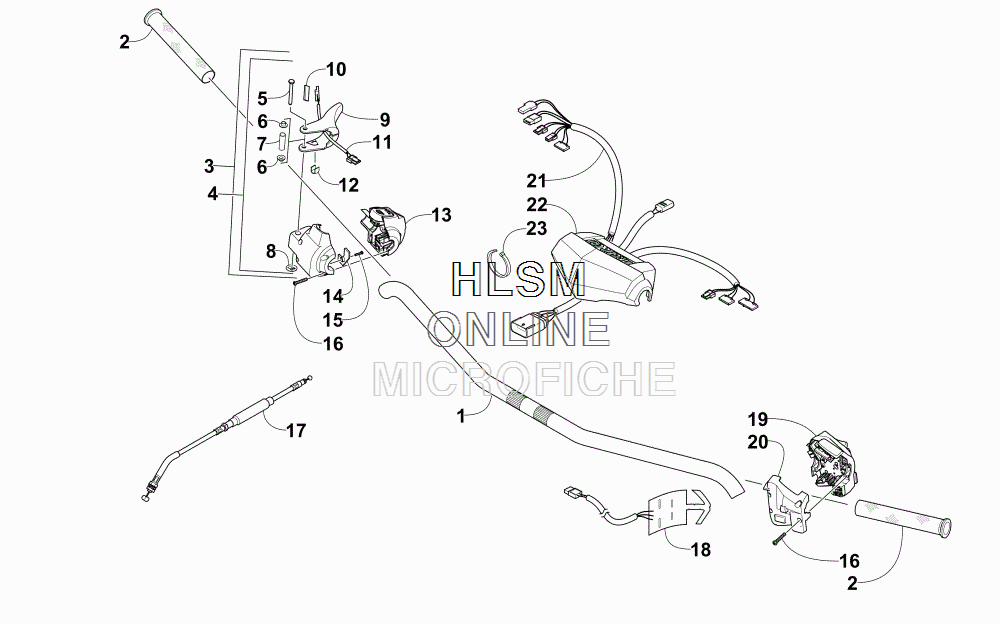

HANDLEBAR AND CONTROLS для Arctic Cat XF 8000 LXR (GREEN) [S2015XFHLXUSG] - 2015 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1705-092 HANDLEBAR - BLACK
    HANDLEBAR - BLACK
  • 2
    4606-945 GRIP
    GRIP
  • 3
    0609-888 CONTROL, THROTTLE - RIGHT HAND - REAR (36 MM) (INC. 4-9)
    CONTROL, THROTTLE - RIGHT HAND - REAR (36 MM) (INC. 4-9)
  • 4
    0609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
    ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
  • 8
    0123-766 ......NUT, PUSH (INCLUDED IN KIT)
    ......NUT, PUSH (INCLUDED IN KIT)
  • 9
    0609-797 ...LEVER, THROTTLE
    ...LEVER, THROTTLE
  • 10
    0617-248 PAD, INSULATOR - THUMB WARMER
    PAD, INSULATOR - THUMB WARMER
  • 11
    0609-827 ELEMENT, THUMB WARMER - HI/LO (15 V)
    ELEMENT, THUMB WARMER - HI/LO (15 V)
  • 12
    0609-595 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    0609-880 CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
    CONTROL, RIGHT HAND - FRONT W/REVERSE - 2-STROKE (2010)
  • 14
    0609-792 COVER, CONNECTOR
    COVER, CONNECTOR
  • 15
    0609-793 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0609-791 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    0687-223 CABLE, THROTTLE
    CABLE, THROTTLE
  • 18
    0609-938 ELEMENT, HANDWARMER - RIGHT
    ELEMENT, HANDWARMER - RIGHT
  • 18
    0609-939 ELEMENT, HANDWARMER - LEFT
    ELEMENT, HANDWARMER - LEFT
  • 19
    0609-929 CONTROL, LEFT HAND W/O PPT - FRONT
    CONTROL, LEFT HAND W/O PPT - FRONT
  • 20
    0609-883 CONTROL, LEFT HAND - REAR
    CONTROL, LEFT HAND - REAR
  • 21
    1686-636 HARNESS, HANDLEBAR
    HARNESS, HANDLEBAR
  • 22
    6606-129 PAD, HANDLEBAR
    PAD, HANDLEBAR
  • 23
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 23
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
