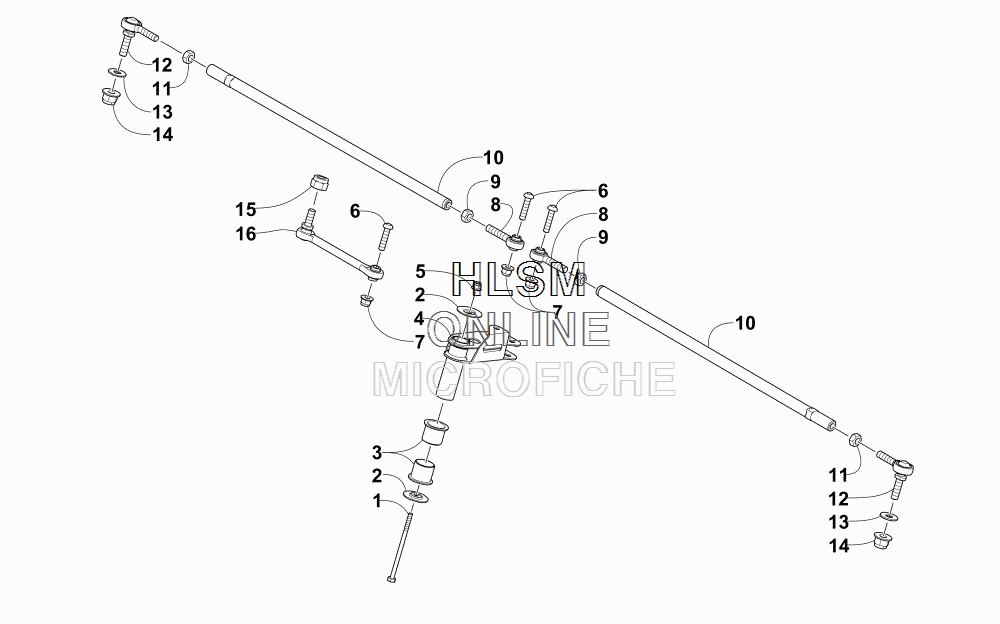

TIE ROD ASSEMBLY для Arctic Cat XF 8000 LXR (GREEN) [S2015XFHLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8402-600 SCREW, CAP
    SCREW, CAP
  • 2
    1623-807 WASHER
    WASHER
  • 3
    1605-161 BUSHING, PLASTIC (PFI1618-16)
    BUSHING, PLASTIC (PFI1618-16)
  • 4
    1705-488 BELLCRANK - PAINTED BLACK
    BELLCRANK - PAINTED BLACK
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    2623-026 SCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZ
    SCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZ
  • 7
    8427-802 NUT, LOCK
    NUT, LOCK
  • 8
    1605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 9
    8420-002 NUT - RIGHT-HAND THREAD
    NUT - RIGHT-HAND THREAD
  • 10
    0605-477 TUBE, TIE ROD - SPINDLE
    TUBE, TIE ROD - SPINDLE
  • 11
    0423-013 NUT - LEFT
    NUT - LEFT
  • 12
    1605-019 ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
    ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
  • 13
    1623-803 WASHER, FLAT
    WASHER, FLAT
  • 14
    8427-002 NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
    NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
  • 15
    8422-002 NUT, HEX-THK NYL M10X1.25 CL8 Z & Y
    NUT, HEX-THK NYL M10X1.25 CL8 Z & Y
  • 16
    1605-109 DRAGLINK, STEERING - 106 MM
    DRAGLINK, STEERING - 106 MM
