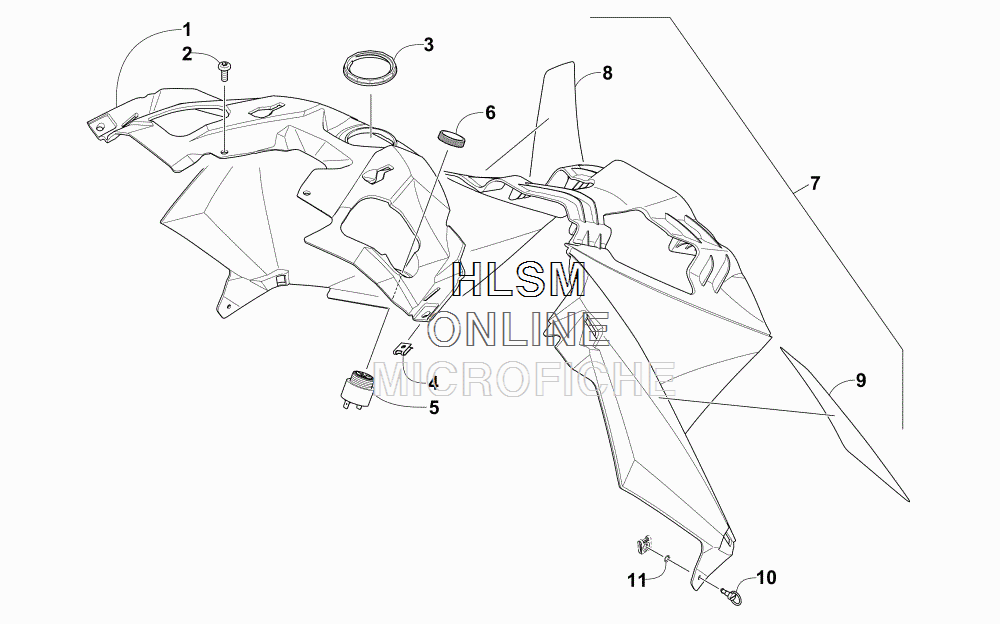

CONSOLE ASSEMBLY для Arctic Cat XF 8000 LXR (GREEN) [S2015XFHLXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-305 CONSOLE, UPPER - BLACK
    CONSOLE, UPPER - BLACK
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    3718-998 CONSOLE, LOWER - BLACK (INC. 8-9)
    CONSOLE, LOWER - BLACK (INC. 8-9)
  • 8
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 9
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 10
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 11
    2623-004 NUT, PUSH
    NUT, PUSH
